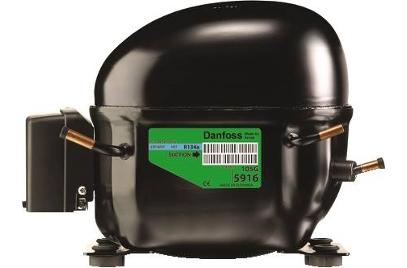

Danfoss nf7clx-1 R404A Reciprocating Compressor 1/3+ Hp Extended Temp

Product Description

The Danfoss nf7clx-1 is a reciprocating refrigeration compressor designed for use with R-404A refrigerant in extended temperature applications. It is built for medium back pressure systems and delivers reliable performance across a wide range of evaporator temperatures. At negative 10 degrees Fahrenheit evaporator temperature, this unit produces 1,716 BTU per hour. At 0 degrees Fahrenheit, output climbs to 2,205 BTU per hour. At 10 degrees Fahrenheit, it reaches 2,780 BTU per hour, and at 20 to 25 degrees Fahrenheit, it delivers 3,451 BTU per hour. These ratings are based on medium back pressure at 130 degrees Fahrenheit condensing, 95 degrees Fahrenheit ambient, and 115 degrees Fahrenheit liquid temperature. The nf7clx-1 runs on single-phase, 115-volt power and carries a 1/3-plus horsepower rating, making it well suited for light commercial refrigeration equipment such as reach-in coolers, display cases, and refrigerated prep tables. The compressor features a compact construction with a durable housing that stands up to tough operating conditions. Optimized motor technology supports a wide voltage range, keeping the unit running steadily through minor power fluctuations common in commercial settings. High starting torque allows the compressor to start reliably even under load. The suction connection measures 5/16 inches ODF and the discharge connection measures 1/4 inches ODF, fitting standard refrigeration line sets. Mounting centers are 6.5 inches by 4 inches. The unit weighs 22.2 pounds and stands 8 inches tall. Compatible relay is 117U4129 and start capacitor is 117U5022. HVAC and refrigeration technicians working on R-404A systems will find this compressor easy to install and dependable in the field. Low noise output and high energy efficiency make it a strong choice for food service and cold storage environments where uptime matters.

• R-404A reciprocating compressor rated for extended temperature applications with medium back pressure
• Single-phase, 115-volt operation with high starting torque and wide voltage range tolerance
• Compact, durable housing with optimized motor technology for low noise and high energy efficiency

Product Highlights

The Danfoss nf7clx-1 delivers dependable R-404A compression across a wide BTU range, built tough for extended temp commercial refrigeration systems. Its compact design, high starting torque, and energy-efficient motor make it a practical drop-in choice for refrigeration technicians.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: nf7clx-1

Technical Specifications

• Application: Extended Temp
• Compressor Type: Reciprocating
• Refrigerant: R-404A
• Horsepower: 1/3+
• Phase: 1
• Voltage: 115 Volts
• Starting Torque: High
• BtuH Capacity at -10F Evap.: 1,716
• BtuH Capacity at 0F Evap.: 2,205
• BtuH Capacity at 10F Evap.: 2,780
• BtuH Capacity at 20F Evap.: 3,451
• BtuH Capacity at 25F Evap.: 3,451
• Suction Connection: 5/16 inches ODF
• Discharge Connection: 1/4 inches ODF
• Mounting Centers: 6.5 inches x 4 inches
• Height: 8 inches
• Weight: 22.2 pounds
• Relay: 117U4129
• Start Capacitor: 117U5022
• Shipping Weight: 27.05 pounds
• Shipping Width: 8.10 inches
• Shipping Length: 12.00 inches
• Shipping Height: 11.20 inches
