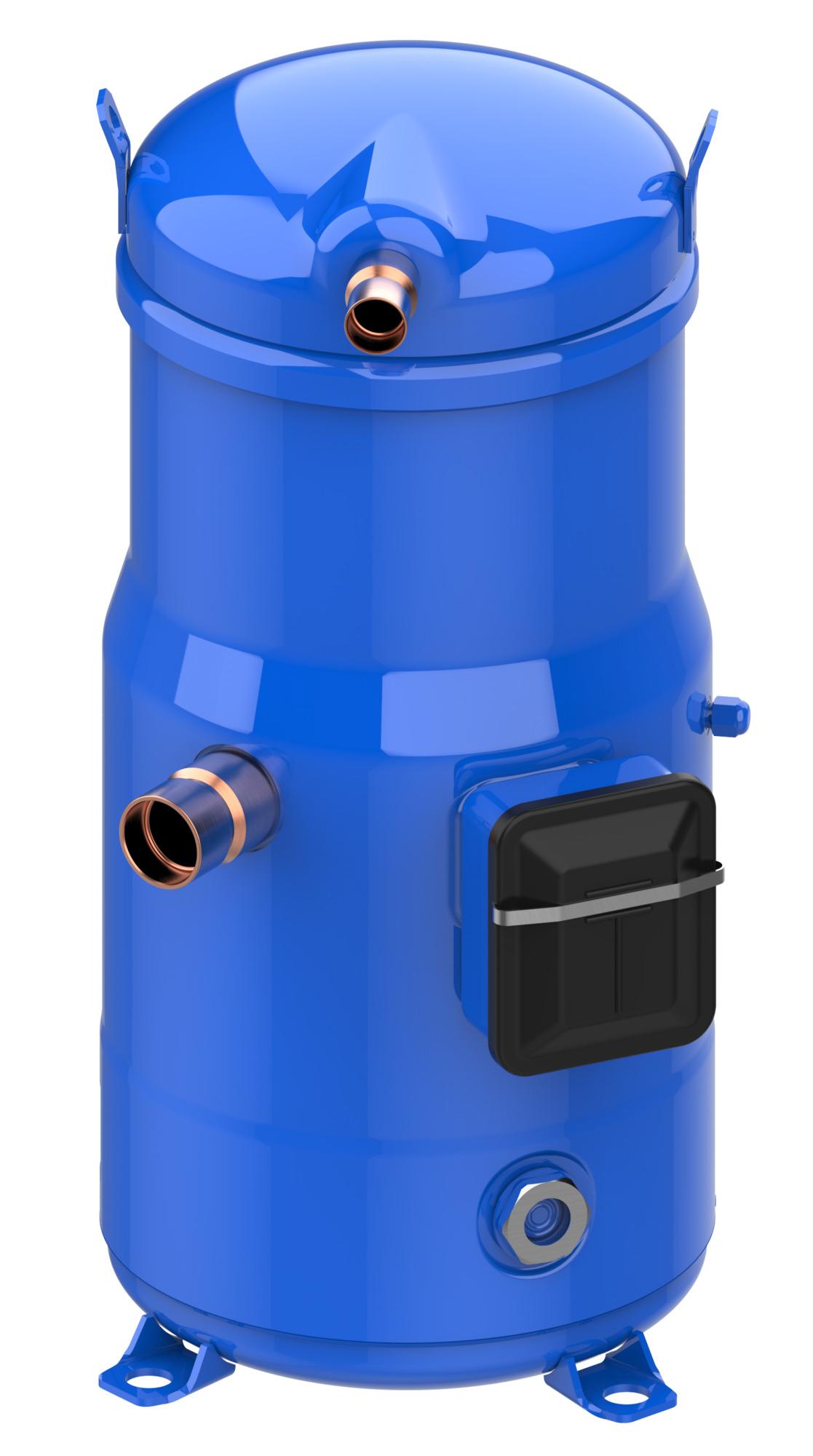

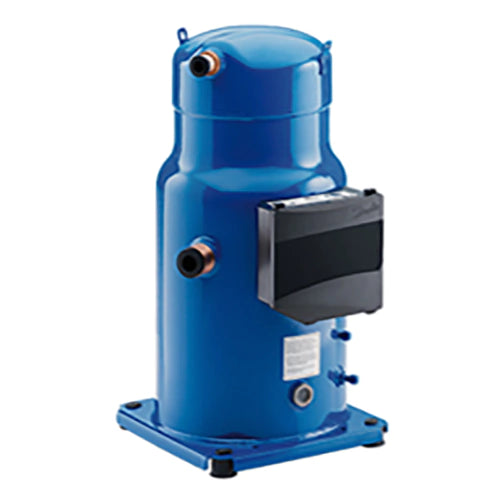

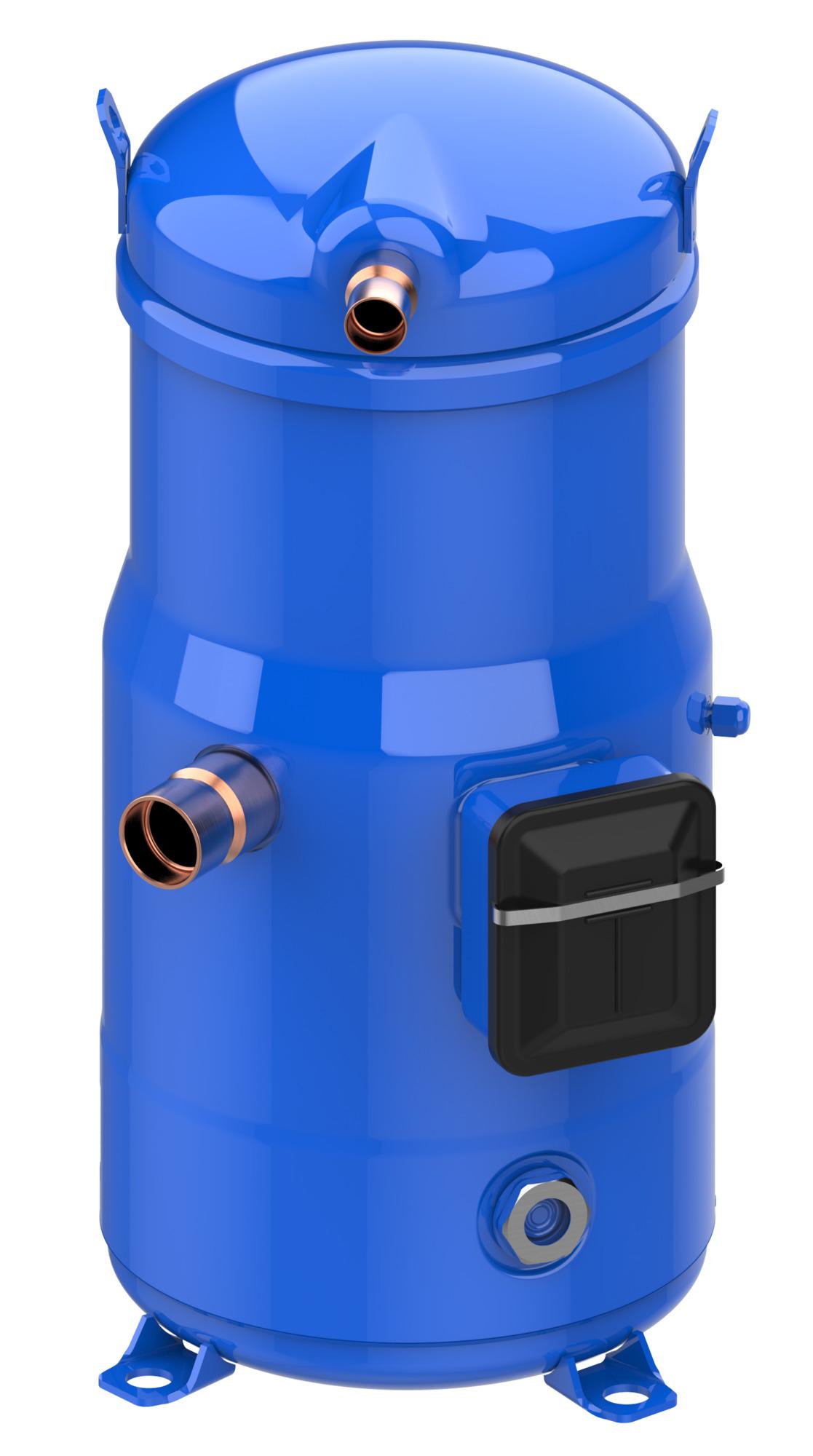

Danfoss DSH161A4ALC Scroll Compressor 13 HP (Industrial Pack 8) 120H1552

Product Description

Danfoss DSH161A4ALC is a hermetic scroll compressor for air conditioning, offering fixed-speed three-phase operation and compatibility with R410A, R452B and R454B refrigerants. The unit features an internal overload motor protector, brazed suction and discharge connections, a 3.3 L POE oil charge (reference 160SZ) and is rated for 380-415/3/50 and 460/3/60 V supply. Replacement code: 120H1552.

• Fixed-speed hermetic scroll design for commercial air conditioning and HVAC systems.
• Three-phase electrical supply 380-415/3/50 and 460/3/60 V with RLA 23.6 A and LRA 158 A; internal overload protection.
• Brazed refrigerant connections (7/8 in discharge, 1 3/8 in suction), 3.3 L POE oil (160SZ), IP54 with cable gland.

Product Highlights

Hermetic scroll, 3-phase fixed-speed, R410A/R452B/R454B compatible, 3.3 L POE oil, brazed connections, replacement 120H1552

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: DSH161A4ALC

Technical Specifications

• Brand: Danfoss
• Model Number: DSH161A4ALC
• Technology: Hermetic scroll
• Type / Family: DSH161
• Application: Air conditioning / Commercial HVAC
• Capacity Control: Fixed speed
• Phase: 3
• Input Voltage: 380-415/3/50; 460/3/60 V
• Rated Load Amperage (RLA): 23.6 A
• Locked Rotor Amperage (LRA): 158 A
• Maximum Operating Current (MOC): 31 A
• Maximum Continuous Current (MCC): 35 A
• Rotational Speed 50Hz: 2900 rpm
• Rotational Speed 60Hz: 3500 rpm
• Refrigerants: R410A; R452B; R454B
• Oil Charge: 3.3 L
• Oil Type: POE
• Oil Reference: 160SZ
• Connection Type: Brazed
• Discharge Connection Size: 7/8 in
• Suction Connection Size: 1 3/8 in
• Discharge Connection Height: 509 mm
• Suction Connection Height: 278 mm
• Diameter: 243 mm
• Total Height: 540 mm
• Swept Volume: 151.7 cm3
• Max Pressure High Side: 48.7 bar
• Max Pressure Low Side: 33.3 bar
• IP Protection Class: IP54 (with cable gland)
• Motor Protection: Internal overload protector
• Mounting: Vertical
• Packing Format: Industrial pack
• Packing Quantity: 8
• Replacement Code: 120H1552
• Gross Weight: 73.94 kg
• Net Weight: 72.02 kg
• Approvals: CE; UL; UKCA
• EAN/GTIN: 5702428802864
