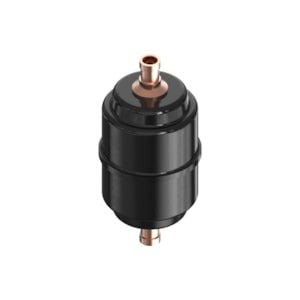

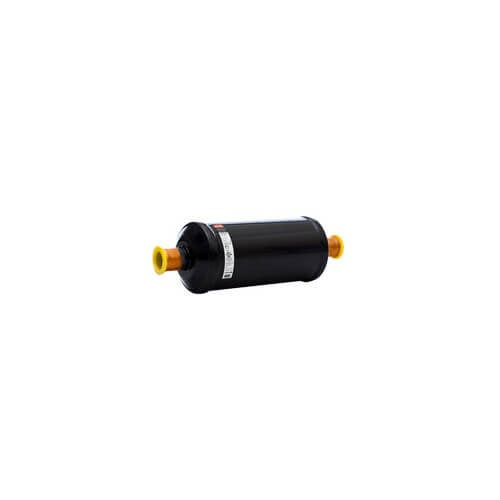

Danfoss DCL032S liquid line filter drier (03 cu.in.) 023Z450191

DANFOSS
Brand: DANFOSS
SKU: DCL032S
Availability: In Stock

Ships same day if ordered by 12 pm
$20.80
$20.80
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Danfoss DCL032S is a liquid line filter drier with a 03 cu.in. DCL solid core (80% molecular sieve, 20% activated alumina) designed to remove moisture, acids, and debris from refrigeration liquid lines. The steel body has copper-plated connections with 1/4 in ODF solder inlet and outlet, a maximum working pressure of 46 bar, and an operating temperature range of -40 to 70 C. The unit is not serviceable and is UL approved.

  • Solid core composition: 80% molecular sieve and 20% activated alumina; core size 03 cu.in.
  • Solder (ODF) 1/4 in inlet and outlet connections; steel body with copper-plated connection material; overall length 3.86 in
  • Performance: max working pressure 46 bar (667 psig); operating temperature -40 to 70 C (-40 to 160 F); acid capacity 0.53 g

Product Highlights

03 cu.in. solid core; 1/4 in ODF connections; UL approved; not serviceable

Product Information

Standard Information

  • Brand: DANFOSS
  • Manufacturer Part Number: DCL032S
Technical Specifications
Brand
Danfoss
Manufacturer Part Number
DCL032S
Part Number (manufacturer code)
023Z450191
Alternate Part Number
023Z5013
Product Type
Liquid line filter drier
Product Group
Filter driers
Product Description
Liquid line hermetic filter drier, DCL type
Core Size
03 (catalog size/code) — listed as 03 cu.in. in some sources; see note in removed_specifications
Core Composition
80% molecular sieve; 20% activated alumina
Core Type
Solid core
Body Material
Steel
Connection Material
Steel copper-plated
Inlet Connection Type
Solder (ODF)
Outlet Connection Type
Solder (ODF)
Connection Size
1/4 in ODF
Overall Length
3.86 in
Net Volume
0.051 L (1.72 fl oz US)
Shell Volume
0.07 L (2.44 fl oz US)
Solid Core Surface
59 cm2 (9.1 in2)
Solid Core Volume
21 cm3 (1.3 in3)
Acid Capacity
0.53 g (0.019 oz)
Max Working Pressure
46 bar (667 psig)
Operating Temperature Range (C)
-40 to 70 C
Operating Temperature Range (F)
-40 to 160 F
Flow Capacity (kW)
R134a: 5.8; R290: 7.0; R32: 8.8; R404A: 4.1; R407C: 5.9; R410A: 6.0; R507: 4.0
Flow Capacity (TR)
R134a: 1.6; R290: 2.0; R32: 2.5; R404A: 1.2; R407C: 1.7; R410A: 1.7; R507: 1.1
Drying Capacity (24 C) [drops of water]
R134a: 76; R290: 60; R32: 64; R404A: 79; R407C: 74; R410A: 69; R507: 83
Drying Capacity (52 C) [drops of water]
R134a: 69; R290: 48; R32: 59; R404A: 75; R407C: 68; R410A: 61; R507: 74
Refrigerant Compatibility
Compatible with R134a, R410A, R404A, R32, R290, R507, R407C, R12, R22
Lubricants Compatibility
Oilfree applications
Serviceable
No
Approvals
UL (UL approval file: SA6398); UL approved refrigerants listed
PED Category
Art. 4, par. 3
EU RoHS Compliance
Yes
China RoHS Compliance
Yes
