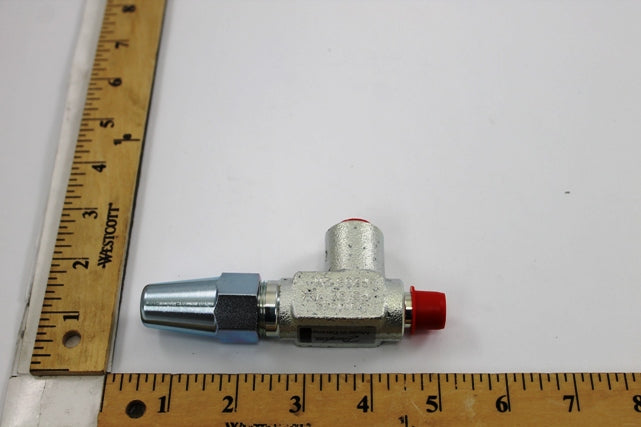

Danfoss 148B3746 SNV-ST needle valve (1/4 in) 148B4180

Product Description

The Danfoss 148B3746 is an SNV-ST stop needle (gauge) valve configured as a 1/4 in service/gauge valve for refrigeration and industrial instrumentation. It features a steel low-temperature body, 1/4 in NPT inlet and outlet connections (bottom 1/4 in MPT x side 1/4 in FPT), bi-flow angleway orientation, and metal-to-metal backseating that permits spindle seal replacement while the valve remains pressurized. The valve is rated to 52 bar (754 psig) and -60 to 150 C.

• SNV-ST stop needle/gauge valve, 1/4 in NPT connections (bottom 1/4 in MPT x side 1/4 in FPT)
• Steel low-temperature body with Cr3/TLP coating, bi-flow angleway orientation, metal-to-metal backseating
• Maximum working pressure 52 bar (754 psig); temperature range -60 to 150 C (-76 to 302 F); compatible with common refrigerants including R717 and R744

Product Highlights

SNV-ST 1/4 in gauge stop needle valve; steel body; 52 bar max; -60 to 150 C; metal-to-metal backseating; suitable for refrigerants and instrumentation lines.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 148B3746
• Country of Origin: China

Technical Specifications

• Brand: Danfoss
• MPN: 148B3746
• Product Type: Needle valve / Gauge valve
• Valve Type: SNV-ST (stop needle / gauge valve)
• Connection Standard: ANSI/ASME B1.20.1
• Connection Type: NPT
• Connection Configuration: Bottom 1/4" MPT (male NPT) x Side 1/4" FPT (female NPT)
• Inlet Connection Size: 1/4" (external)
• Outlet Connection Size: 1/4" (internal)
• Body Material: Steel (low-temperature steel)
• Coating: Cr3 / TLP
• Orientation: Angleway
• Flow Direction: Bi-flow
• Backseating: Metal-to-metal (internal backseating)
• Maximum Working Pressure (bar): 52 bar
• Maximum Working Pressure (psig): 754 psig
• Temperature Range (C): -60 to 150 C
• Temperature Range (F): -76 to 302 F
• Compatible Fluids / Refrigerants: Multiple common refrigerants including R717 (Ammonia), R744 (CO2), R134a, R404A, R410A, R22, R507A, R600a, etc.
• Gross Weight: 0.49 kg
• Net Weight: 0.39 kg
• Approvals / Certifications: EAC; LLC CDC TYSK; TUV
• EU RoHS Compliance: Yes
• China RoHS Compliance: Yes
• GTIN / EAN: 5702428179317
• Identical / Replacement MPN: 148B4180
• Country of Origin: China
