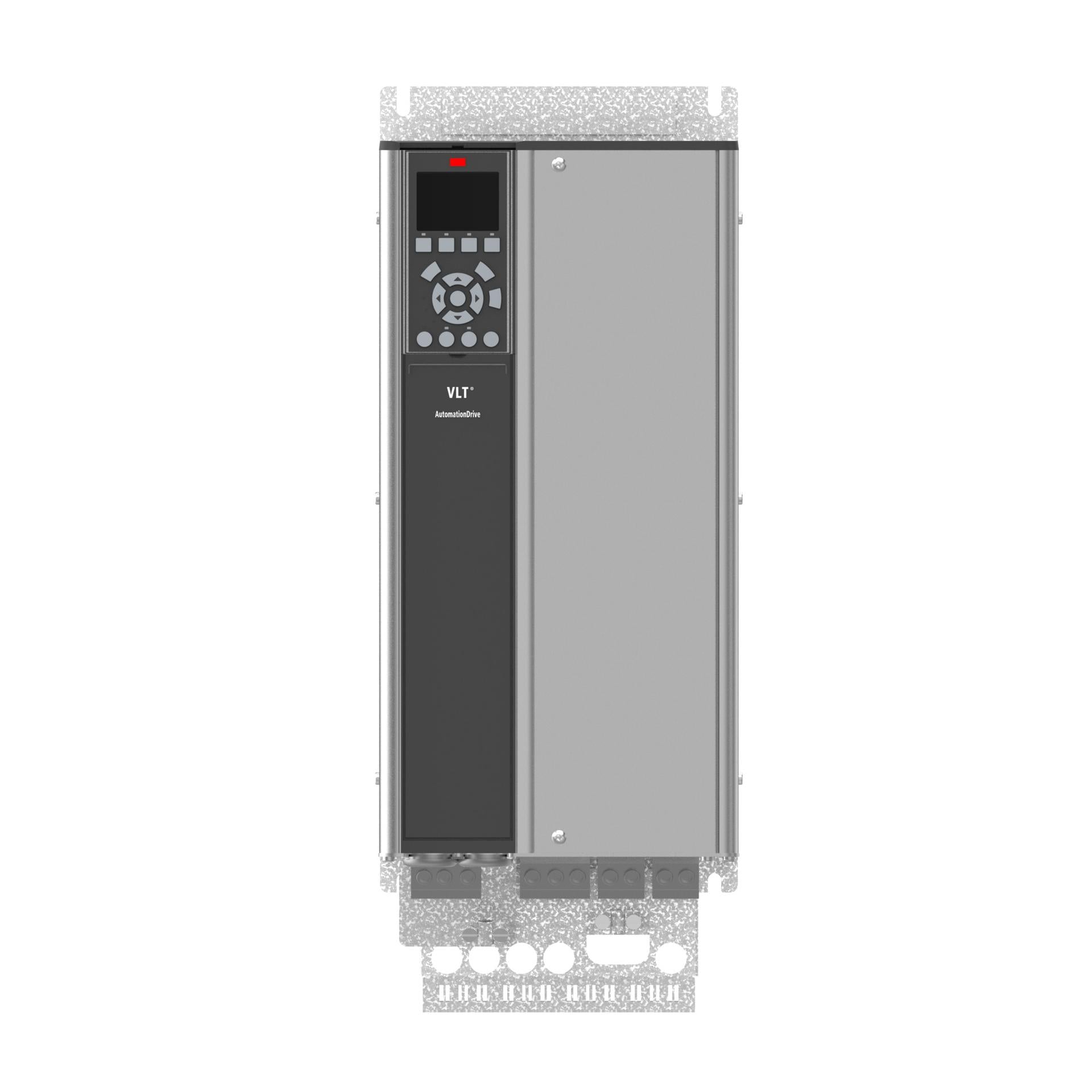

Danfoss 134F9368 CDS303 Frequency Converter 18.5 kW

Product Description

The Danfoss 134F9368 is a CDS303 frequency converter. This unit is suitable for use with compressor accessories. It consumes eighteen point five kilowatts of power and offers protection with an IP20 enclosure, safeguarding against solid objects. This model does not include a coating or a local control panel (LCP). It falls under the RFI class H2 and has a frame designation of B4.

• Power Consumption: 18.5 kW
• Enclosure Rating: IP20
• RFI Class: H2

Product Highlights

The Danfoss CDS303 frequency converter is built for reliability in demanding environments. It is ideal for various compressor applications and complies with multiple industry standards.

Product Information

Standard Information

• Type: CDS303
• Product Group: Compressors Accessories

Technical Specifications

• Approval: UKCA, CE, UL
• CE Evaluated: Yes
• Coating: No
• Contains Batteries: No
• Family: Frequency converter
• Frame: B4
• IP Class: IP20
• LCP: No
• Length: 242 mm
• Model Number: CDS303P18KT4P20H2
• Power Consumption: 18.5 kW
• RFI Class: H2
• Supply Power Range AC Max: 480 V
• Supply Power Range AC Min: 380 V
• Total Height: 595 mm
• Width: 231 mm
• Net Weight: 20.50 kg
• EAN: 5710107496556
