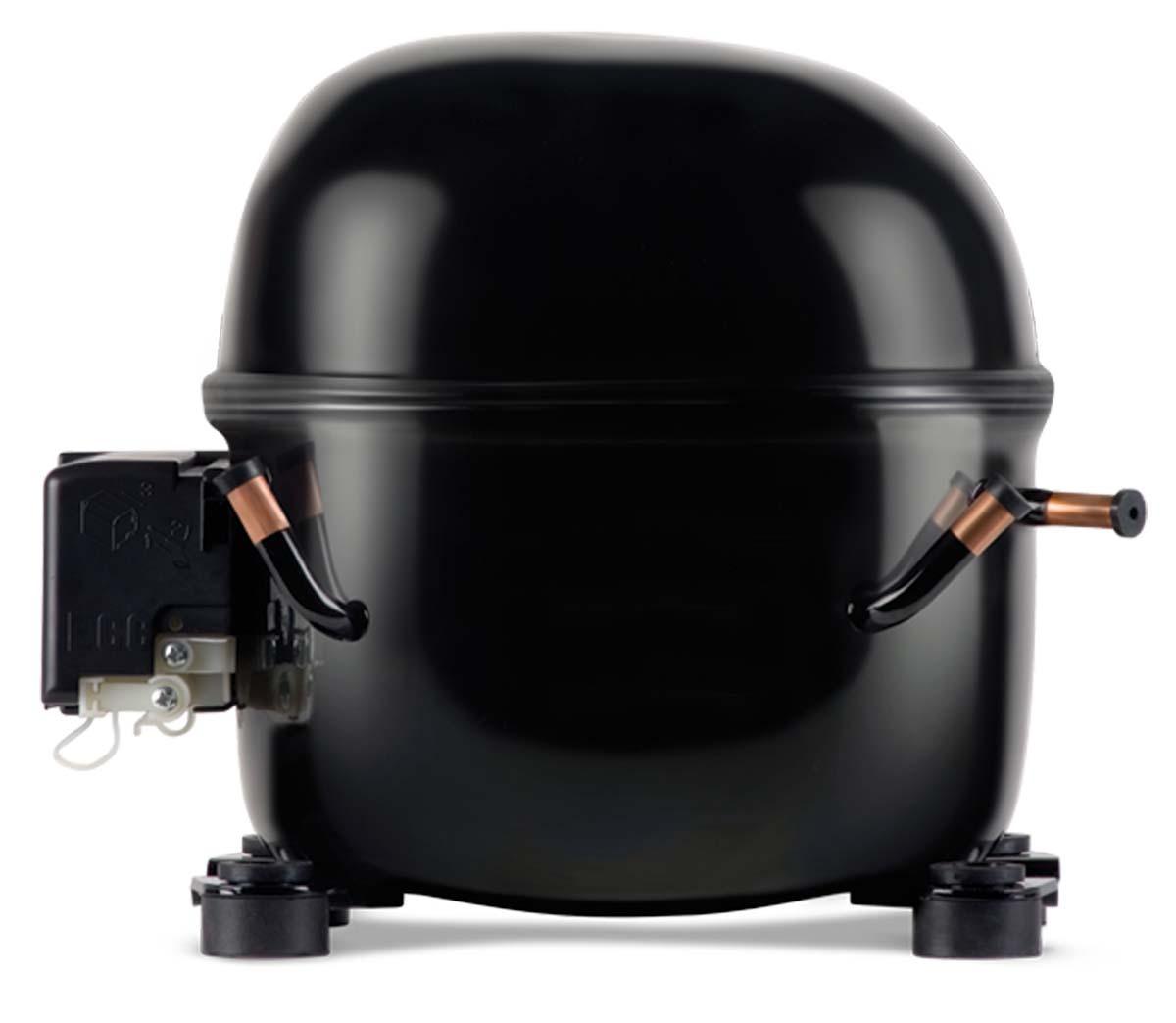

Danfoss 123F2541 Reciprocating compressor, MX18TGa

Product Description

The DANFOSS 123F2541 reciprocating compressor MX18TGa is designed for refrigeration MT applications and uses R404A refrigerant. It operates on a 230/1/50 230/1/60 compressor power supply. This fixed-speed compressor is suitable for HBP and MBP applications.

• Uses R404A refrigerant
• Designed for Refrigeration MT segment usage
• Operates on a 230/1/50 230/1/60 compressor power supply

Product Highlights

The DANFOSS 123F2541 is a fixed-speed reciprocating compressor for refrigeration applications using R404A refrigerant.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 123F2541

Technical Specifications

• Type: MX18
• Product group: Hermetic compressors
• Product Name Description: Reciprocating compressor X
• Applications: HBP, MBP
• Approval: CE, VDE, UL
• Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]: 7.22 Ohm
• Brand technique: Reciprocating compressor
• Capacity Control: Fixed speed
• Colour: Black
• Compressor power supply [V]: 230/1/50 230/1/60
• Configuration code: Single
• Cut in current HST [A]: 30.5 A
• Description: MX18TGa
• Discharge connection angle [°]: 0 °
• Discharge connection comments: Rubber plug
• Discharge connection diameter [mm]: 6.5 mm
• Discharge connection height [mm]: 98 mm
• Discharge connection material: Cu-plated steel
• Family: X
• Frequency [Hz]: 50/60
• Height from baseplate [mm]: 221 mm
• High value of nominal voltage at 50Hz [V]: 220 V
• High value of nominal voltage at 60Hz [V]: 230 V
• High value of voltage range at 50Hz [V]: 242 V
• High value of voltage range at 60Hz [V]: 253 V
• Low value of nominal voltage at 50Hz [V]: 200 V
• Low value of nominal voltage at 60Hz [V]: 220 V
• Low value of voltage range at 50Hz [V]: 170 V
• Low value of voltage range at 60Hz [V]: 187 V
• LRA HST [A]: 30.5 A
• Main winding resistance for single-phase compressors [Ohm]: 2.34 Ohm
• MCC: 10.50 A
• Model number: MX18TGa
• Motor type: CSR
• Network power supply [V/Ph/Hz]: 200-240/1/50-60
• No. of phases (compressor): 1
• Oil quantity [cm3]: 500 cm³
• Oil type: POE
• Packing format: Industrial pack
• Packing quantity: 68
• Process connection angle [°]: 30 °
• Process connection comments: Rubber plug
• Process connection diameter [mm]: 9.7 mm
• Process connection material: Cu-plated steel
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• Refrigerant charge [kg] [Max]: 0.14 kg
• Refrigerants: R404A
• Rotational speed at 50Hz [rpm]: 3000 rpm
• Rotational speed at 60Hz [rpm]: 3600 rpm
• Run capacitor capacitance: 20 µF
• Segment usage: Refrigeration MT
• Speed Platform: Fixed-speed
• Suction connection angle [°]: 30 °
• Suction connection diameter [mm]: 9.7 mm
• Suction connection height [mm]: 102 mm
• Suction connection material: Cu-plated steel
• Swept volume [cm3]: 18.4 cm³
• Technology: Reciprocating
• Total height [mm]: 230 mm
• Voltage 50Hz [V]: 200 V
• Voltage 50Hz [V] [Max]: 220 V
• Voltage 60Hz [V]: 220 V
• Voltage 60Hz [V] [Max]: 230 V
• Winding temperature short term [°C] [Max]: 135 °C
• Winding temperature stat [°C] [Max]: 115 °C
• Displacement (cm³): 18.4
