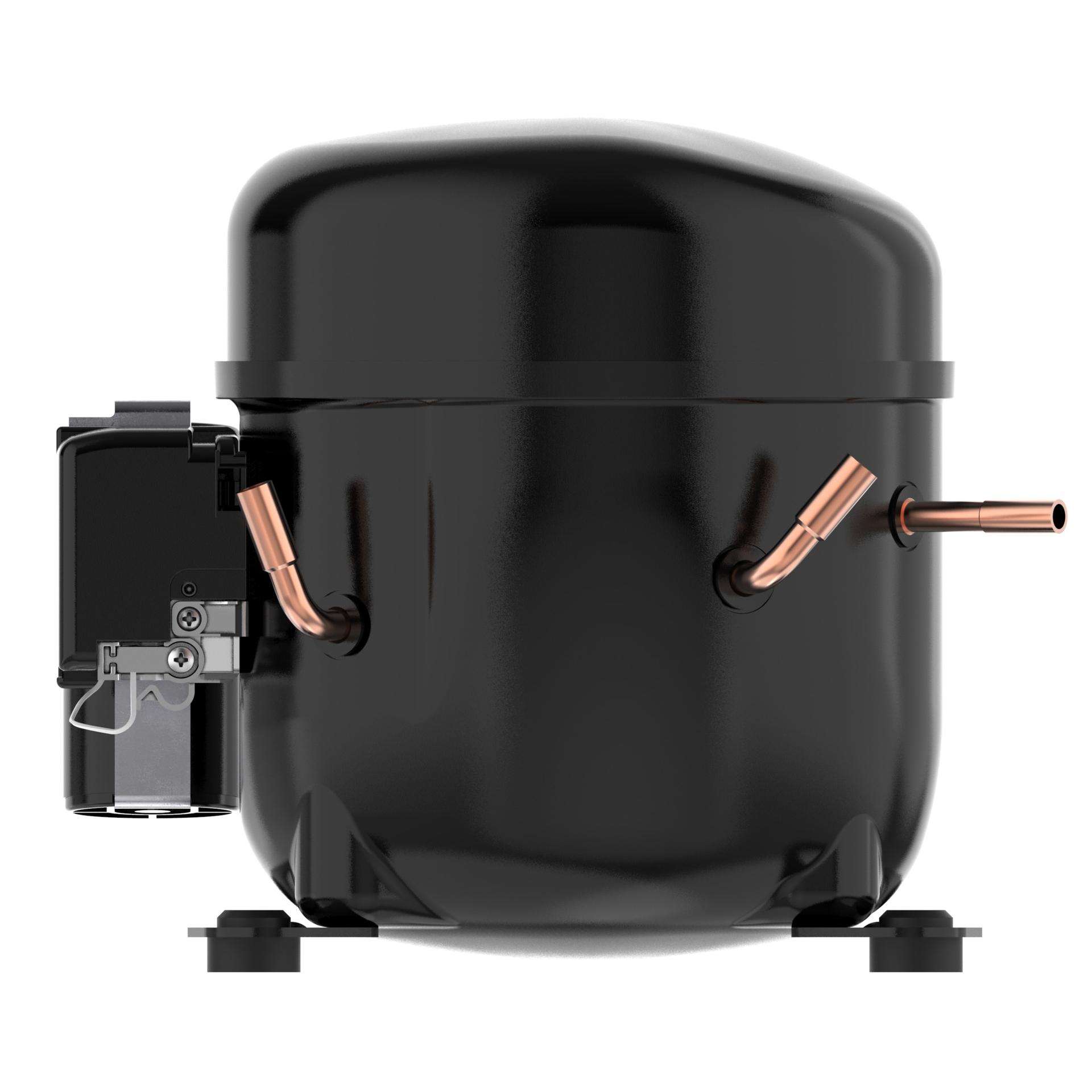

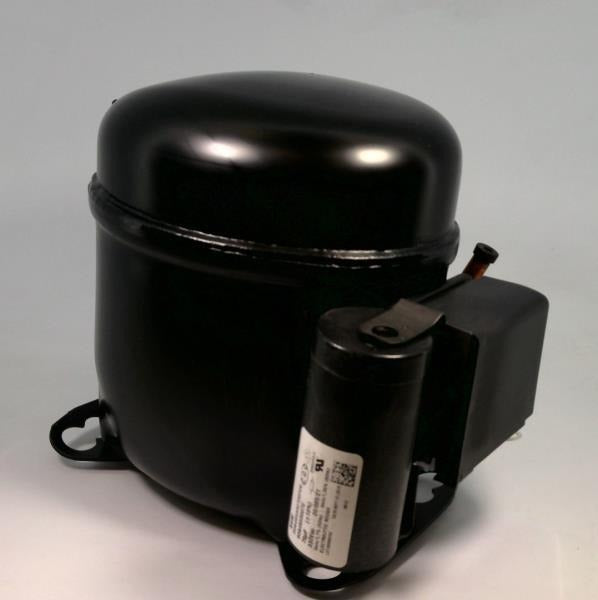

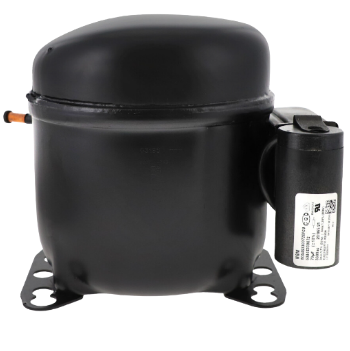

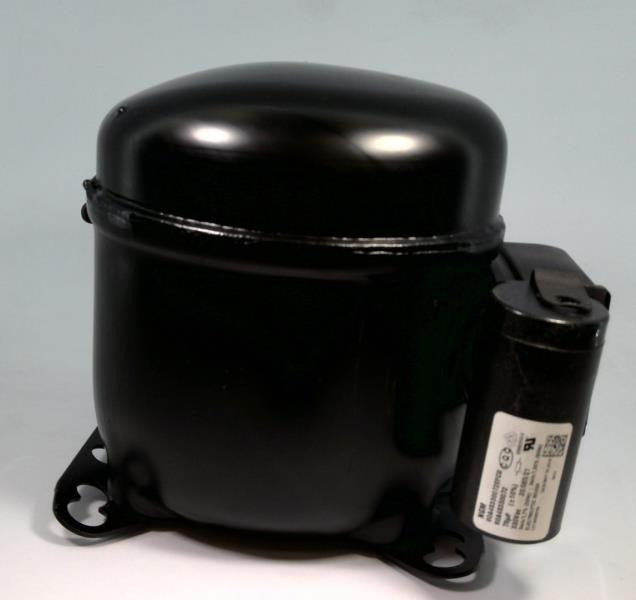

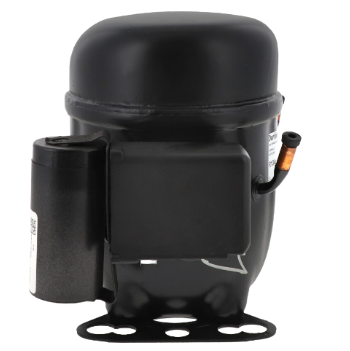

Danfoss 123B1714 GP16TG 3/8 Hp (Single pack) GP16TG-230V

DANFOSS
Brand: DANFOSS
SKU: 123B1714
Availability: In Stock

Ships same day if ordered by 12 pm
$555.04
$555.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Danfoss 123B1714 is a GP16TG hermetic reciprocating compressor for light commercial medium-temperature refrigeration. It is a single-phase, fixed-speed unit rated for 200–240 V / 1 / 50–60 Hz (commonly 230 V), designed for R134a with POE oil (400 cm3) and a maximum refrigerant charge of 1.15 kg. The compressor provides 16.15 cm3 swept volume, CSIR motor, and copper suction and discharge connections with UL and CCC approvals.

  • Single-phase fixed-speed hermetic reciprocating compressor for R134a; rated 200–240 V / 1 / 50–60 Hz (commonly 230 V).
  • POE oil charge 400 cm3, maximum refrigerant charge 1.15 kg, swept volume 16.15 cm3; CSIR motor with start capacitor range 72–88 µF.
  • Copper suction (Ø 8.1 mm) and discharge (Ø 6.5 mm) connections, compact total height 217 mm; approvals: UL, CCC.

Product Highlights

GP16TG high back-pressure hermetic compressor for light commercial refrigeration (R134a), 3/8 Hp equivalent, compact 217 mm height, single-pack

Product Information

Standard Information

  • Brand: DANFOSS
  • Manufacturer Part Number: 123B1714
  • Country of Origin: Spain
Technical Specifications
Brand
Danfoss
MPN
123B1714
Model number
GP16TG
Type
GP16 reciprocating hermetic compressor
Product group
Hermetic compressors
Description
Reciprocating compressor GP16TG for light commercial refrigeration
Refrigerant
R134a
Segment usage
Refrigeration MT (medium-temperature)
Application
High back pressure (HBP) / light commercial refrigeration
Horsepower
3/8 Hp
Input Voltage
200-240 V / 1 / 50-60 Hz (commonly 230 V / 1 / 50-60 Hz)
Voltage (alternate listing)
208-230 V
Frequency
50/60 Hz
Phases
1
Capacity control
Fixed speed
Motor type
CSIR
Start capacitor capacitance
72-88 µF
Oil type
POE
Oil quantity
400 cm3
Refrigerant charge (max)
1.15 kg
Swept volume
16.15 cm3
Rotational speed (50 Hz)
3000 rpm
Rotational speed (60 Hz)
3600 rpm
Suction connection diameter
8.1 mm
Suction connection angle
20°
Suction connection height
125 mm
Suction connection material
Copper
Discharge connection diameter
6.5 mm
Discharge connection angle
0°
Discharge connection height
121 mm
Discharge connection material
Copper
Process connection diameter
8.1 mm
Process connection angle
50°
Process connection material
Copper
Height from baseplate
211 mm
Total height
217 mm
Voltage range nominal low/high (50Hz)
200 V / 220 V
Voltage range nominal low/high (60Hz)
230 V / 230 V
Voltage range high values (50/60Hz)
242 V / 253 V
Voltage range low values (50/60Hz)
170 V / 196 V
Locked rotor amps (LRA) 50Hz/60Hz
23 A / 25 A
Cut in current HST (start) 50Hz/60Hz
23 A / 25 A
Maximum continuous current (MCC)
6.50 A
Main winding resistance
3.8 Ohm
Auxiliary (start) winding resistance
13.1 Ohm
Winding temperature short term (max)
135 °C
Winding temperature stat (max)
115 °C
Net weight
12.9 Kilogram
Gross weight
13.2 Kilogram
Volume
13.075 Liter
Packing format
Single pack
Packing quantity
1
Approvals
UL, CCC
EU RoHS compliance
Yes without exemptions
China RoHS compliance
Yes without exemptions
Economizer
No
Contains batteries
No
In scope of WEEE
No
EAN / GTIN-13
5702428584449
Identical to / Replacement reference
GP16TG-230V
Included parts (as listed by some sources)
Protector 123B9482; Relay + control board 123B9118; Starting capacitor 123B9316
