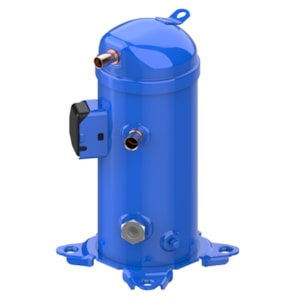

DANFOSS 121L8675 Scroll Compressor MLZ030T2LC9A

Product Description

The DANFOSS 121L8675 scroll compressor MLZ030T2LC9A is suitable for refrigeration applications, working with multiple refrigerants. This includes R404A, R407C, R452A, R134a, R513A, R22, R448A, and R449A. It requires a power supply of 200-220/3/50 or 208-230/3/60 V and is built for both high temperature (HT) and medium temperature (MT) refrigeration. The compressor is packaged as a single unit.

• Compatible with numerous refrigerants: R404A, R407C, R452A, R134a, R513A, R22, R448A, R449A
• Designed for HT and MT refrigeration
• Operates on a power supply of 200-220/3/50 208-230/3/60 V

Product Highlights

Product Information

Standard Information

• Brand: DANFOSS
• Model Number: MLZ030T2LC9A

Technical Specifications

• Approval: CE, UL, UKCA
• Capacity Control: Fixed Speed
• Compressor Power Supply [V]: 200-220/3/50 208-230/3/60
• Diameter: 184 mm
• Discharge Connection Pipe Size: 1/2 in
• IP Protection Class: IP22
• Max Pressure (High Side): 31.1 bar
• Max Pressure (Low Side): 26.2 bar
• Number of Starts per Hour [Max]: 12
• Oil Charge [L]: 1.57 L
• Refrigerants: R134a, R22, R404A, R407C, R448A, R449A, R452A, R513A
• Rotational Speed at 50Hz [rpm]: 2900 rpm
• Rotational Speed at 60Hz [rpm]: 3500 rpm
• Total Height: 455 mm
