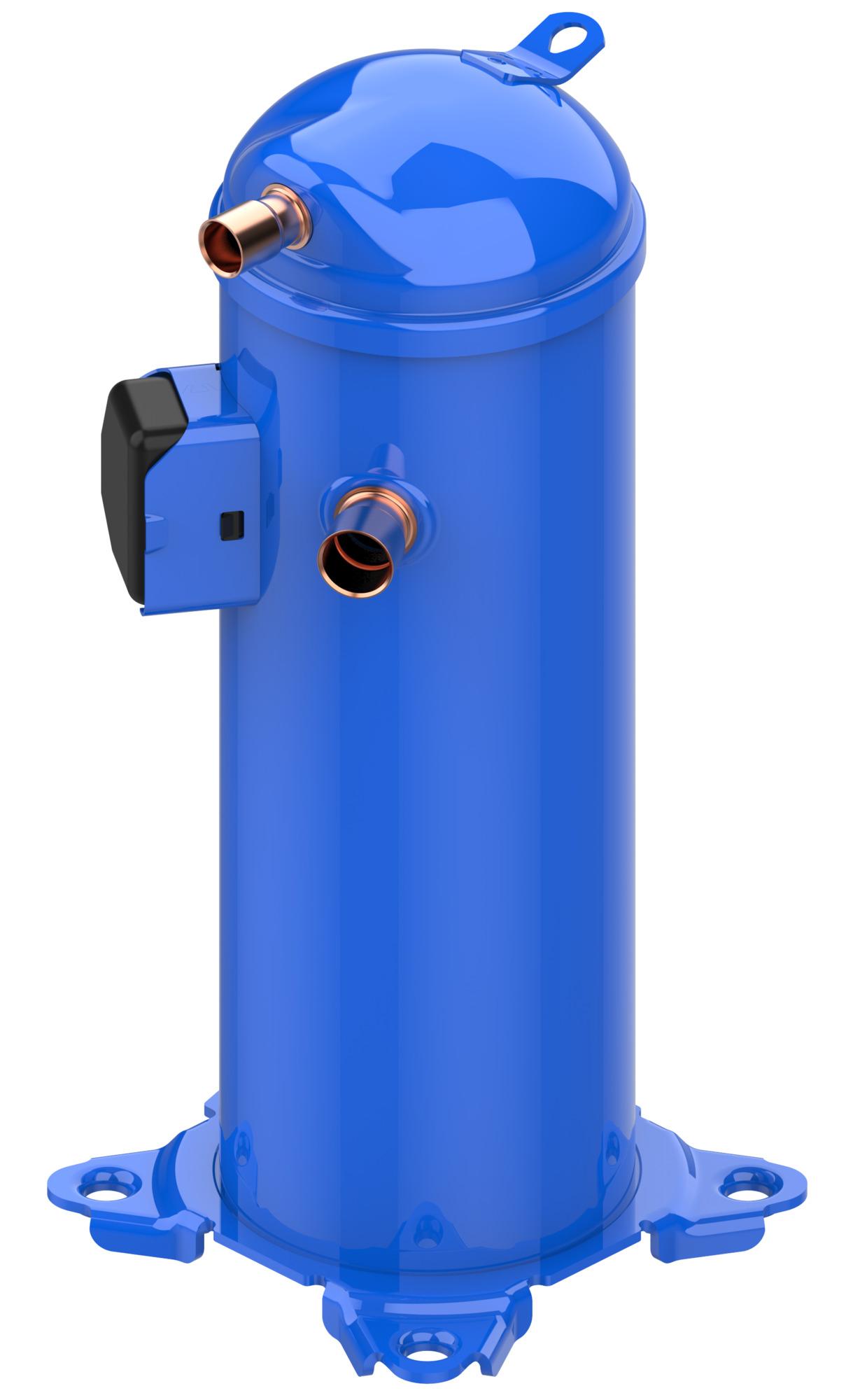

Danfoss 121L8589 Scroll compressor DCJ091T2LC6A 200-230 V (single pack) 121L8589

Product Description

Danfoss 121L8589 (DCJ091T2LC6A) is a three-phase fixed-speed hermetic scroll compressor for air conditioning, compatible with refrigerants R410A and R454B and configured for 200-230 V/3 ph/50 Hz and 208-230 V/3 ph/60 Hz networks. The unit incorporates internal overload motor protection, uses POE oil (ref. 215PZ) with a 2.46 L charge, and is UL approved with IP22 protection; displacement is 86.9 cm3 and net weight 44 kg.

• Three-phase fixed-speed hermetic scroll compressor compatible with R410A and R454B; network power supply 200-230 V/3/50 and 208-230 V/3/60.
• Brazed suction (1-1/8 in ODF) and discharge (7/8 in ODF) connections; electrical screw connectors 10-32 UNF x 9.5.
• Internal overload motor protection; POE oil (215PZ) with 2.46 L charge; UL approved and IP22 protection class.

Product Highlights

Three-phase hermetic scroll compressor; POE oil 2.46 L; UL listed; compatible with R410A and R454B.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 121L8589

Technical Specifications

• Brand: Danfoss
• Manufacturer part number (MPN): 121L8589
• Model number: DCJ091T2LC6A
• Product family: DCJ
• Product group: Hermetic compressors
• Type: DCJ091 (Version A) scroll compressor
• Usage segment: Air conditioning
• Input Voltage: 200-230 V / 3 ph / 50 Hz; 208-230 V / 3 ph / 60 Hz
• Phase: 3
• Frequency: 50/60 Hz
• Fixed or variable speed: Fixed speed
• Rotation speed (50 Hz): 2900 rpm
• Rotation speed (60 Hz): 3500 rpm
• RLA (running load amps): 27.9 A
• LRA (locked rotor amps): 250 A
• Displacement: 86.9 cm3
• Refrigerants: R410A, R454B
• Max refrigerant charge: 7.26 kg
• Max pressure (high side): 44.1 bar
• Max pressure (low side): 33.3 bar
• Oil type: POE
• Oil charge: 2.46 L
• Oil reference: 215PZ
• Viscosity: 46 cP
• Connection type: Brazed
• Suction connection size: 1-1/8 in (ODF)
• Discharge connection size: 7/8 in (ODF)
• Electrical connections: Screw connectors 10-32 UNF x 9.5
• IP rating: IP22
• Approvals / Certifications: UL
• Motor protection: Internal overload protector
• Number of starts per hour (max): 12
• Packing format: Single pack
• Dimensions (L x W x H): 9.41 x 9.41 x 21.10 inches
• Diameter: 7.24 in
• Net weight: 97.00 lb
• Gross weight: 112.84 lb
• Volume: 48.938 cubic decimeter
• Electrical supply torque: Supply torque 3.00 N-m; Grounding torque 2.00 N-m
