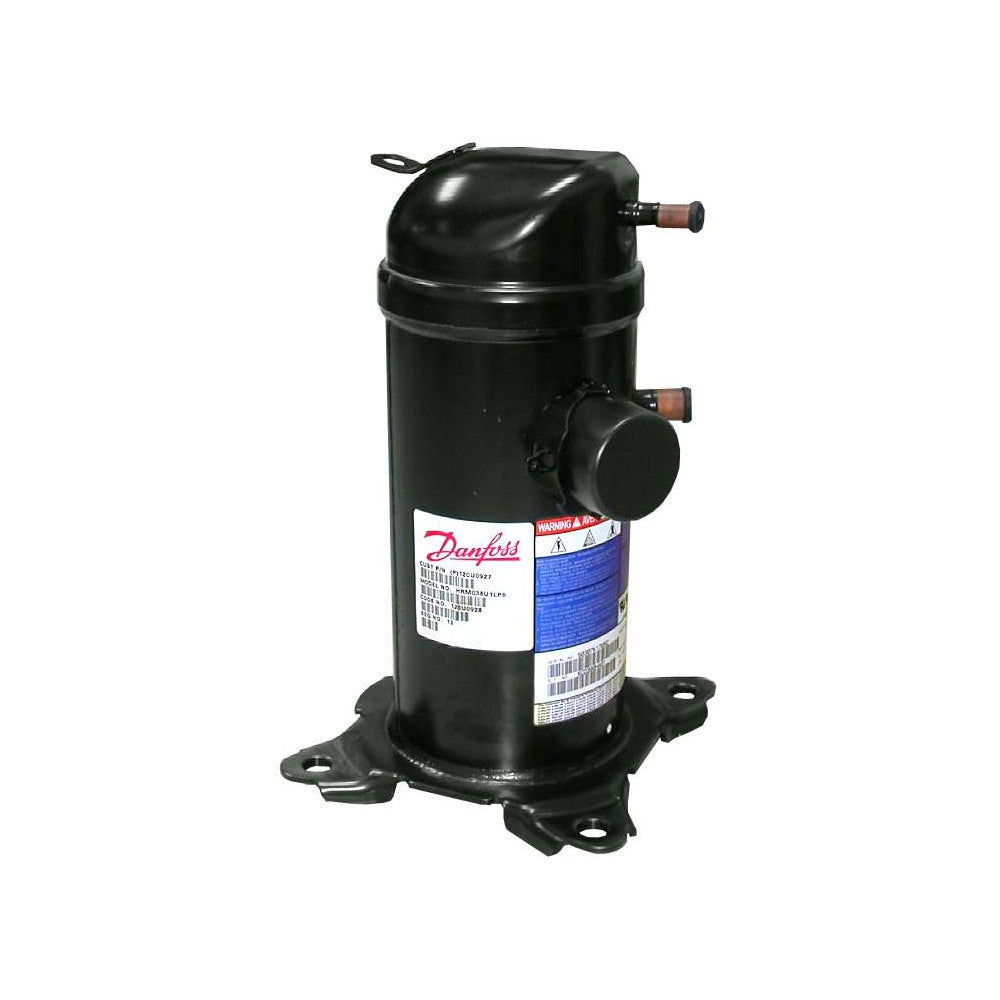

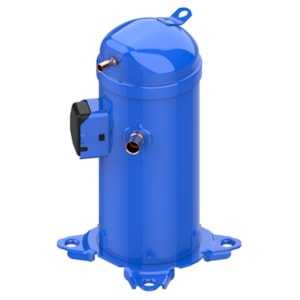

Danfoss 121L8585 Scroll Compressor HLJ083T2LC6A

Product Description

The Danfoss 121L8585 scroll compressor HLJ083T2LC6A is specifically designed for air conditioning applications. It efficiently operates with R410A and R454B refrigerants. The unit features a fixed speed and is powered by a supply voltage of 200-220/3/50 or 208-230/3/60 V.

• Designed for air conditioning applications.
• Utilizes R410A and R454B refrigerants.
• Operates on a 200-220/3/50 208-230/3/60 V power supply.

Product Highlights

This scroll compressor is ideal for various air conditioning systems, providing reliability and compatibility with multiple refrigerants.

Product Information

Standard Information

• Approval: UL
• Brand technique: Scroll compressor

Technical Specifications

• Capacity control: Fixed speed
• Compressor power supply [V]: 200-220/3/50 208-230/3/60
• Configuration code: Single
• Connection type: Brazed
• Diameter: 184 mm
• Discharge connection height: 403 mm
• Discharge connection pipe size: 1/2 in
• Frequency [Hz]: 50/60
• IP protection class: IP22
• Length: 239 mm
• Model number: HLJ083T2LC6A
• Refrigerants: R410A, R454B
• Rotational speed at 50Hz [rpm]: 2900 rpm
• Suction connection height: 261 mm
• Technology: Scroll
• Weight: 45 pounds
