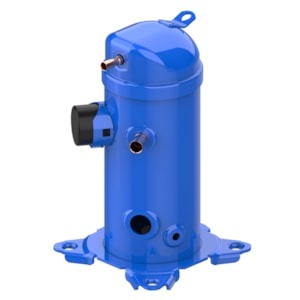

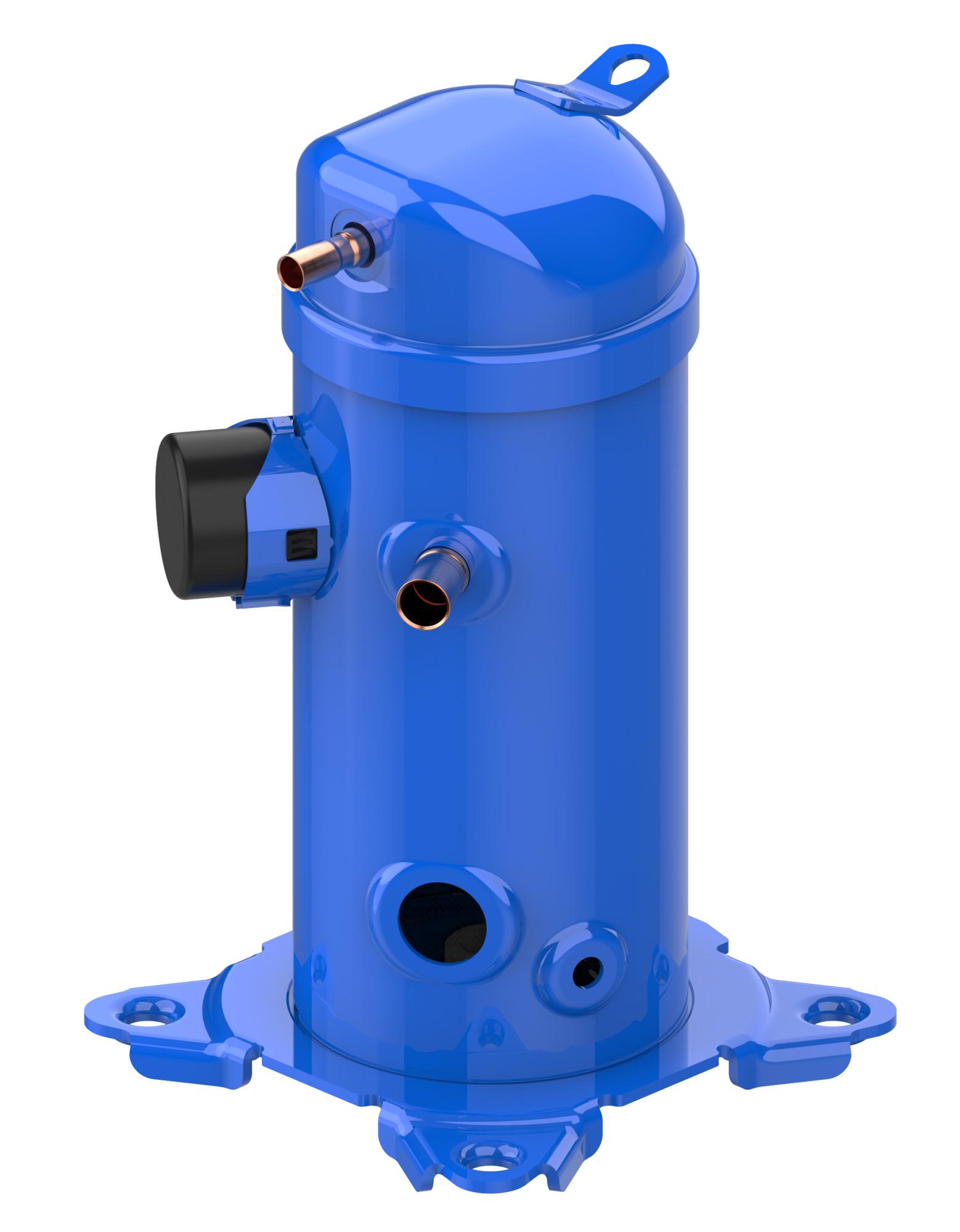

DANFOSS Danfoss 121L3086 Scroll compressor HRP025T1LP6 208-230 V/1/60 (Single pack)
DANFOSS Danfoss 121L3086 Scroll compressor HRP025T1LP6 208-230 V/1/60 (Single pack)
DANFOSS Danfoss 121L3086 Scroll compressor HRP025T1LP6 208-230 V/1/60 (Single pack)
DANFOSS Danfoss 121L3086 Scroll compressor HRP025T1LP6 208-230 V/1/60 (Single pack)

Danfoss 121L3086 Scroll compressor HRP025T1LP6 208-230 V/1/60 (Single pack)

DANFOSS
Brand: DANFOSS
SKU: 121L3086
Availability: In Stock

Ships via freight in 1-3 business days
$942.15
$942.15
LTL Delivery

This product weighs 73 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Danfoss 121L3086 is a hermetic scroll compressor (model HRP025T1LP6) for air conditioning, designed for R407C refrigerant and fixed-speed single-phase operation at 208-230 V / 1 / 60 Hz. It features internal overload motor protection, brazed suction and discharge connections, and a PVE oil charge for lubrication. Typical applications include residential and light commercial HVAC systems.

  • Fixed-speed single-phase scroll compressor for R407C with 208-230 V / 1 / 60 Hz power supply and internal overload protector
  • Brazed suction (3/4 in) and discharge (1/2 in) connections, spade power connections, PVE (160HV) oil with 1.06 L charge
  • Electrical ratings: RLA 12.2 A, LRA 69 A, MCC 19 A; rotational speed 3500 rpm; IP22 protection; approvals CE, UL, UKCA

Product Highlights

Hermetic scroll compressor HRP025T1LP6 for R407C, 208-230 V/1/60, brazed connections, internal overload protection, PVE oil 1.06 L

Product Information

Standard Information

  • Brand: DANFOSS
  • Manufacturer Part Number: 121L3086
Technical Specifications
Brand
Danfoss
Manufacturer Part Number
121L3086
Model number
HRP025T1LP6
Input Voltage
208-230 V / 1 / 60 Hz
Phase
1
Frequency
60 Hz
Refrigerant
R407C
Capacity Control
Fixed speed
Motor Protection
Internal overload protector
Connection Type
Brazed
Power Connections
Spade
Oil Type
PVE (reference 160HV)
Oil Charge
1.06 L
RLA
12.2 A
LRA
69 A
MCC
19 A
Rotational Speed
3500 rpm
IP Protection Class
IP22
Max Pressure High Side
31.1 bar
Max Pressure Low Side
26.2 bar
Discharge Connection Size
1/2 in
Suction Connection Size
3/4 in
Diameter
165 mm
Length
239 mm
Width
239 mm
Total Height
413 mm
Gross Weight
33.23 kg
Net Weight
30.17 kg
Volume
38.75 dm3
Swept Volume
33.92 cm3
Number of Starts Per Hour
12
Approvals
CE, UL, UKCA
Packing Format
Single pack
Drawing Number
0XC6301B-2
