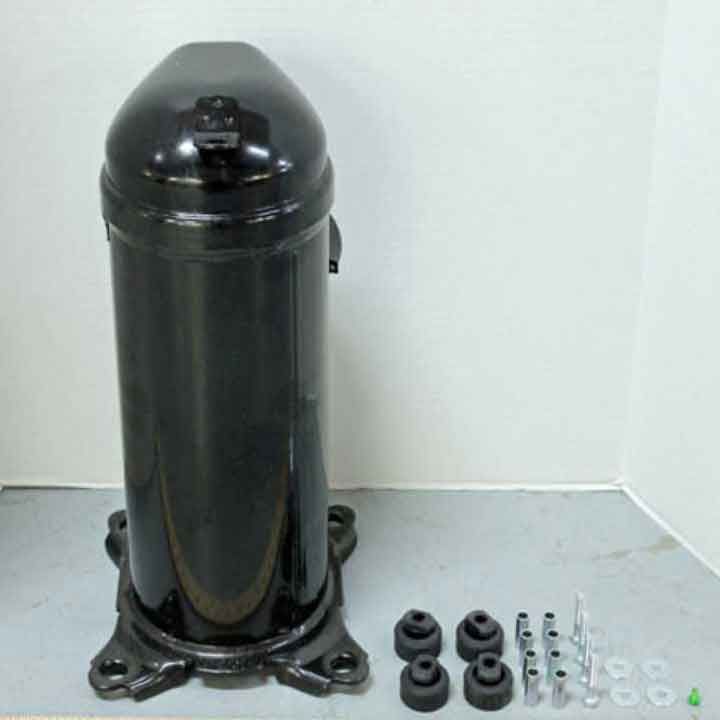

Danfoss 120U1301 Model HRH054U1LP6 Compressor 208/230V 1-Phase 54000 BTU

Product Description

The Danfoss 120U1301 Model HRH054U1LP6 Compressor is a high-efficiency scroll compressor suitable for air conditioning systems. It operates with R410A refrigerant and PVE oil, ensuring optimal performance under ARI conditions. The design is tailored for temperatures between 45 to 100 degrees Fahrenheit. This compressor features a 208-230V single-phase motor, rated at 60Hz, with a cooling capacity of 54,000 BTU per hour. It includes internal motor protection and spade terminals, ensuring reliable and safe operation. The unit has a 7/8 inch ODF suction connection and a 1/2 inch ODF discharge connection.

• Suitable for air conditioning systems
• Uses R410A refrigerant and PVE oil
• Cooling capacity of 54,000 BTU/HR

Product Highlights

This Danfoss compressor is designed for high temperature residential air conditioning applications. It uses R410A refrigerant and operates efficiently within a wide temperature range. Internal motor protection and versatile connections ensure seamless integration into various systems.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U1301
• Model: HRH054U1LP6
• Application: Air Conditioning
• Refrigerant Rating: R410A

Technical Specifications

• BTU Rating: 54000 BTU
• Connection Size: 7/8 inch ODF suction, 1/2 inch ODF discharge
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Weight: 82 pounds
