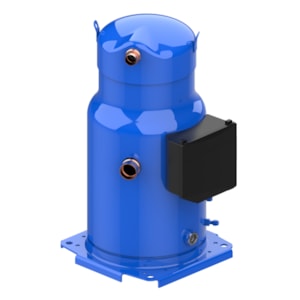

DANFOSS 120H1749 Scroll Compressor

Product Description

The DANFOSS 120H1749 is a hermetic scroll compressor suitable for air conditioning applications. Operating on a 208-230/3/60 V/Ph/Hz power supply, this model features a fixed speed mechanism. It supports refrigerants R452B, R410A, and R454B, making it versatile for different cooling needs.

• Compatible with R452B, R410A, and R454B refrigerants.
• Includes electronic motor protection and reverse rotation protection.
• Brazed connections for secure installation.

Product Highlights

The scroll compressor is designed for reliable operation in various air conditioning systems. Its fixed speed mechanism provides effective cooling while maintaining energy efficiency.

Product Information

Standard Information

• Brand: DANFOSS
• MPN: 120H1749

Technical Specifications

• Refrigerants: R452B, R410A, R454B
• Input Voltage: 208-230/3/60 V/Ph/Hz
• Weight: 255.03 kilograms
• Type: DSH240
• Capacity Control: Fixed speed
• Connection Type: Brazed
• Suction Connection Size: 1 5/8 inches
• Discharge Connection Size: 1 1/8 inches
• Max Pressure - High Side: 48.7 bar
• Max Pressure - Low Side: 31.2 bar
• Rotational Speed: 3500 rpm
• Diameter: 318 mm
• Total Height: 653 mm
• IP Protection Class: IP54
• Motor Protection: Electronic protection module
