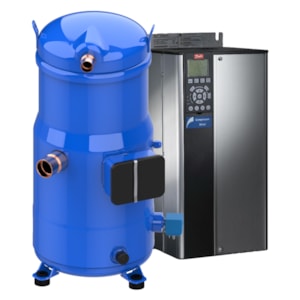

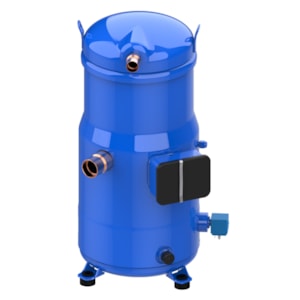

DANFOSS 120G0311 Scroll Compressor VZH117CGDMA

Product Description

The DANFOSS 120G0311 scroll compressor VZH117CGDMA is intended for use in air conditioning systems. It operates with refrigerants R452B, R410A, and R454B, making it versatile. This compressor operates with a power supply of 380-480 volts and is equipped with an inverter for better capacity control. It is packaged as a single unit.

• Compatible with refrigerants R452B, R410A, and R454B
• Includes inverter technology for capacity management
• Designed for air conditioning applications

Product Highlights

This scroll compressor is effective in managing temperature control in air conditioning units, enhancing efficiency.

Product Information

Standard Information

• Brand: DANFOSS
• Model number: VZH117CGDMA

Technical Specifications

• Approval: CE, UL, UKCA
• Capacity control: Inverter
• Compressor power supply: 380-480/3/50-60 V
• Diameter: 243 mm
• Discharge connection height: 508 mm
• Discharge connection size: 7/8 in
• Frequency: 25 - 100 Hz
• IP protection class: IP54
• Low Side TS Max: 55 °C
• Max pressure (high side): 48.7 bar
• Oil charge: 4.1 L
