Danfoss 114N2316 Optyma Power 1/4hp Replacement MPN 114N2316

Product Description

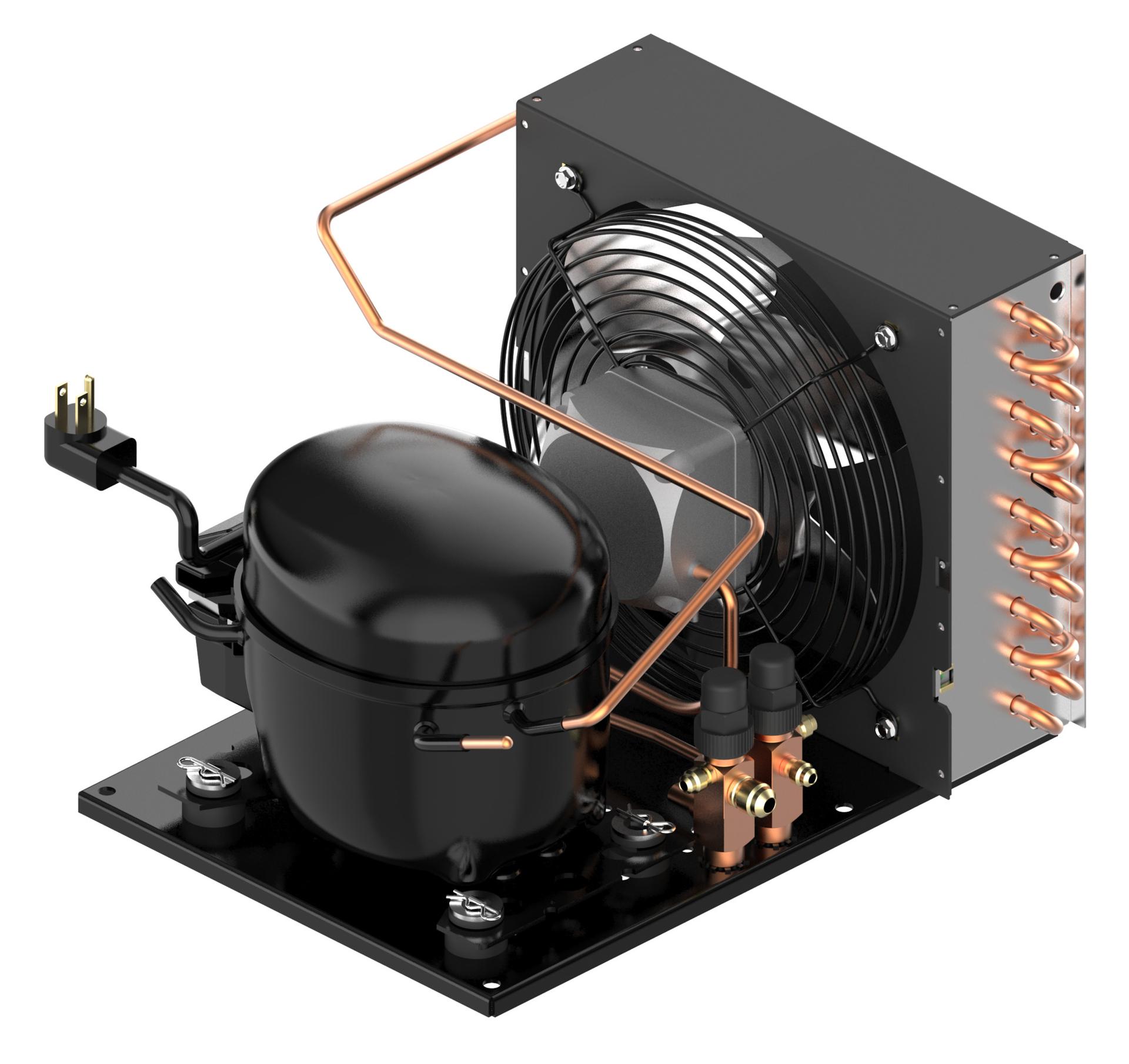

The Danfoss 114N2316 Optyma is a bare condensing unit featuring a compressor power supply of 115/1/60 V. This unit is suitable for low back pressure, universal, and medium back pressure applications. It is designed to work with refrigerants R404A and R507A.

• Operates at a power supply of 115/1/60 V.
• Compatible with R404A and R507A refrigerants.
• Utilizes a TF4CLX compressor and a BM82 condenser.

Product Highlights

The Optyma series units are designed to offer versatility in various refrigeration applications, ensuring reliable operation in different environments.

Product Information

Standard Information

• Brand: Danfoss
• Condition: New

Technical Specifications

• Air Flow @ 60Hz: 590 m³/h
• Applications: LBP, MBP
• Compressor Model: TF4CLX
• Compressor Power Supply: 115/1/60 V
• Condenser Type: BM82
• Fan Blade Size: 229 mm
• Fan Current @ 60Hz: 0.45 A
• Fan Power Consumption @ 60Hz: 36 W
• Fan Voltage @ 60Hz (Max): 115 V
• Liquid Line Connection: 1/4 in
• Suction Connection Size: 3/8 in
• Nominal Voltage @ 60Hz: 115 V
• Width: 279 mm
• Height: 259 mm
• Length: 356 mm
• Horsepower: 1/4hp
• Technology: Reciprocating
• UL Evaluated: Yes
• Model Number: OP-UCHC0020RWA000B
