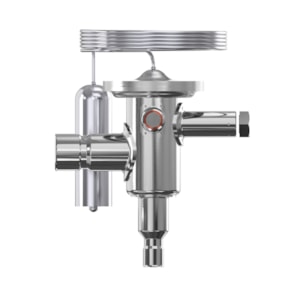

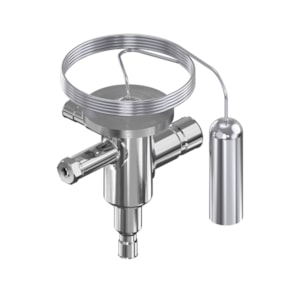

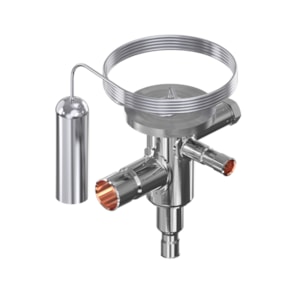

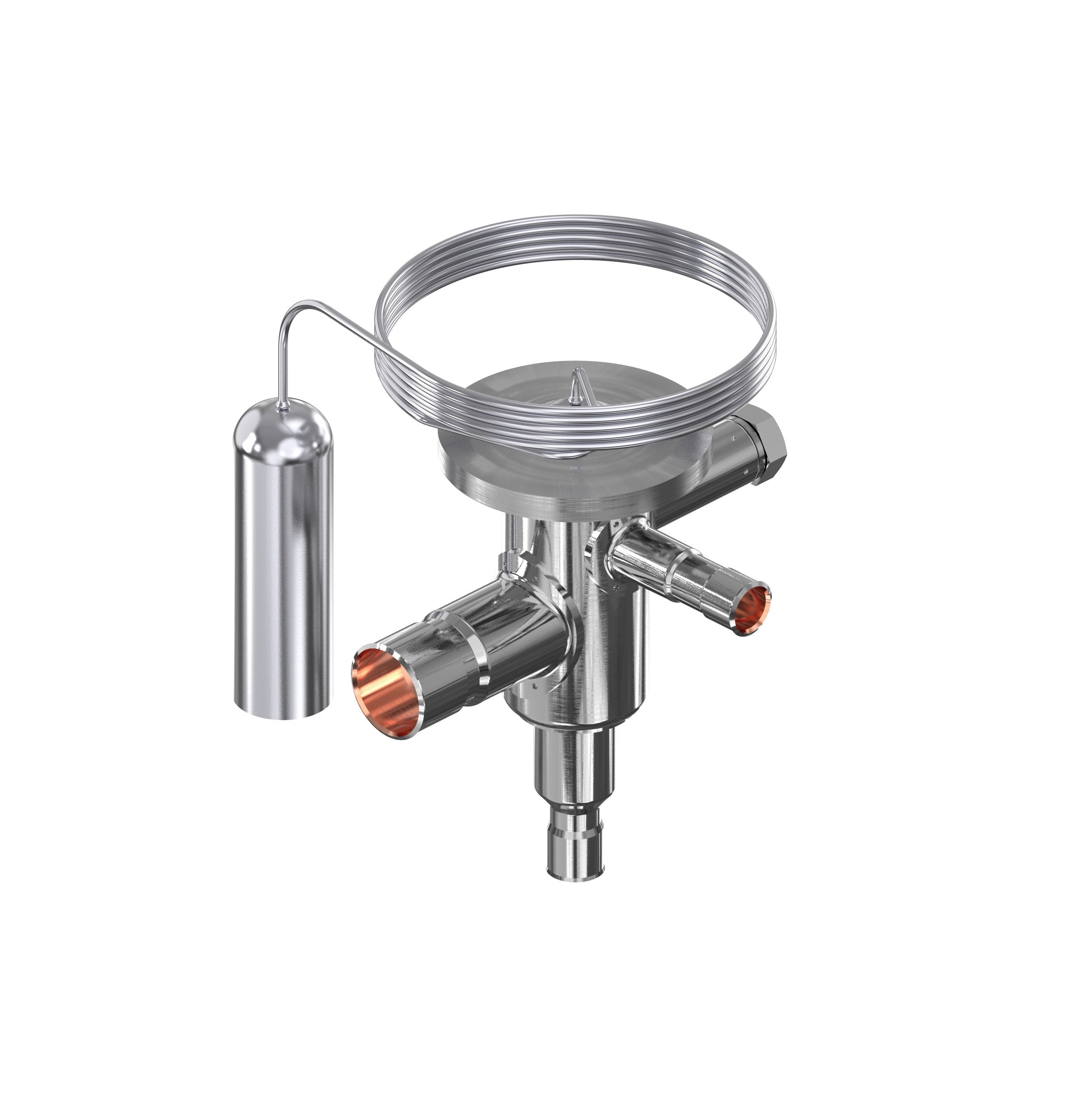

Danfoss 068U3374 Thermostatic Expansion Valve, Tube, R404A/R507A

Product Description

The Danfoss 068U3374 thermostatic expansion valve is designed for use with R404A and R507A refrigerants. This valve operates within a temperature range of negative forty to ten degrees Celsius. It has an orifice capacity of zero point seventy-one kilowatts or zero point two tons of refrigeration, which ensures effective performance in various refrigeration systems.

• Compatible with R404A and R507A refrigerants
• Temperature range: -40 to 10 degrees Celsius
• Orifice capacity: 0.71 kW / 0.2 TR

Product Highlights

This Danfoss expansion valve provides reliable temperature control for refrigeration applications, ensuring the efficient operation of cooling systems.

Product Information

Standard Information

• Type: Tube
• Product Group: Expansion valves

Technical Specifications

• Approval: EAC, LLC CDC TYSK
• Body Material: Stainless steel
• Capillary Tube Length: 31 inches
• Connection Material: Bi-metal: Steel/copper
• Equalization Connection Type: Solder, ODF
• Inlet Connection Type: Solder, ODF
• Max Working Pressure: 34 bar / 500 psig
• Refrigerants: R404A/R507A
• Static Superheat: 1.7 degrees Celsius / 3 degrees Fahrenheit
• Temperature Range: Max 10 degrees Celsius, Min -40 degrees Celsius
