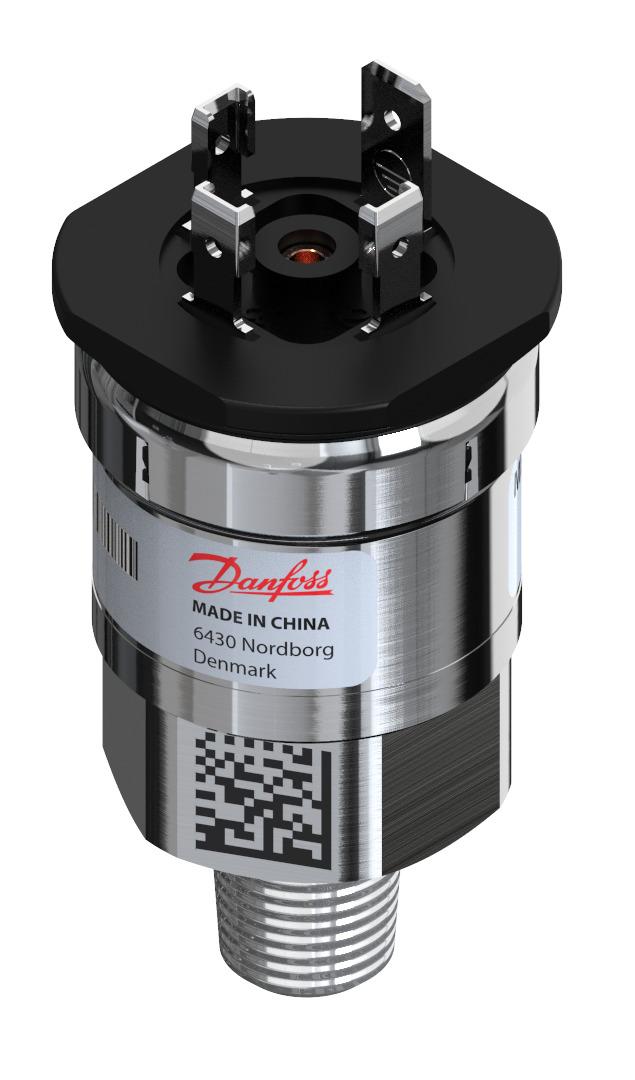

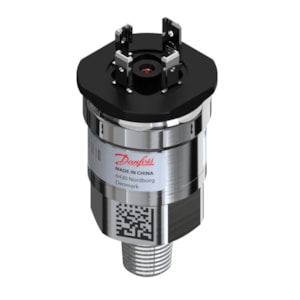

DANFOSS 060G6344 Pressure Transmitter AKS 2050 -1 Bar - 159 Bar

Product Description

The DANFOSS 060G6344 is a pressure transmitter designed for precise pressure measurement. This model, known as AKS 2050, operates within a pressure range of -1 bar to 159 bar or -14.5 psi to 2306 psi. It includes a sealed gauge pressure reference and delivers a ratiometric output signal. The product features an angular connector for electrical connections and utilizes a 1/4-18 NPT for pressure connections.

• Pressure range: -1 bar to 159 bar, or -14.5 psi to 2306 psi
• Electrical connection: Angular connector with four pins
• Pressure connection: 1/4-18 NPT

Product Highlights

This pressure transmitter is suitable for applications needing accurate pressure readings. It is built with a strong design that meets the IP65 enclosure rating for durability in various environments.

Product Information

Standard Information

• Type: AKS 2050
• Product group: Sensors

Technical Specifications

• Output signal: Ratiometric
• Accuracy, max: ±1 %
• Accuracy, typical: ±0.5 %
• Ambient temperature range (max): 85 °C
• Ambient temperature range (min): -40 °C
• Enclosure rating: IP65
• Pressure reference: Sealed gauge
• Overload pressure max.: 954 bar
