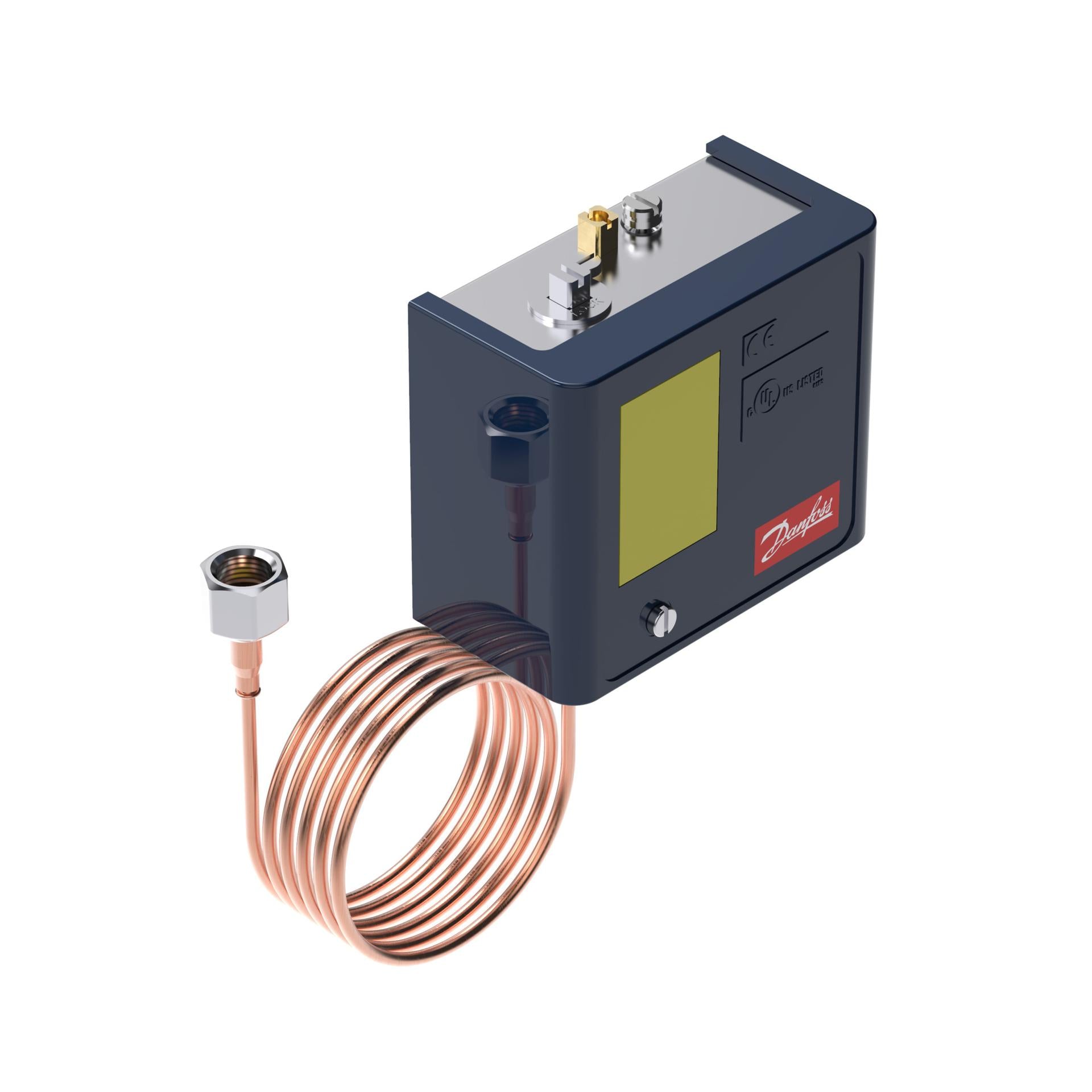

Danfoss 060-5615 Pressure switch KPU1 (24 pc) 060-5233

Product Description

Danfoss 060-5615 is a KPU1 pressure switch for refrigeration and HVACR systems that provides adjustable pressure control from -0.2 to 7.5 bar with an adjustable differential of 0.7 to 4 bar. The device uses a bellows sensing element, SPDT contact with automatic reset, and a 1/4" female flare connection with Schrader opener option. Capillary length is 900 mm and maximum working pressure is 17 bar; enclosure rating IP30. Not applicable for liquid line.

• Adjustable regulation range -0.2 to 7.5 bar with differential 0.7–4.0 bar; intended for refrigeration and HVACR pressure control
• SPDT contact function with automatic reset and specified contact ratings for AC and DC pilot duty
• Bellows pressure sensing element, 1/4" female flare pressure connection (Schrader opener option), 900 mm capillary tube; max working pressure 17 bar

Product Highlights

Adjustable -0.2–7.5 bar range; SPDT auto-reset; 1/4" female flare with Schrader opener; 900 mm capillary; IP30 enclosure; CE and UL approvals

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 060-5615
