Product Description

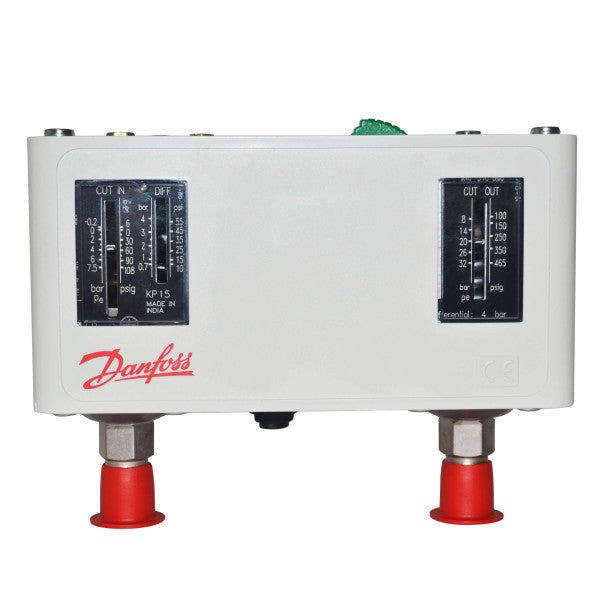

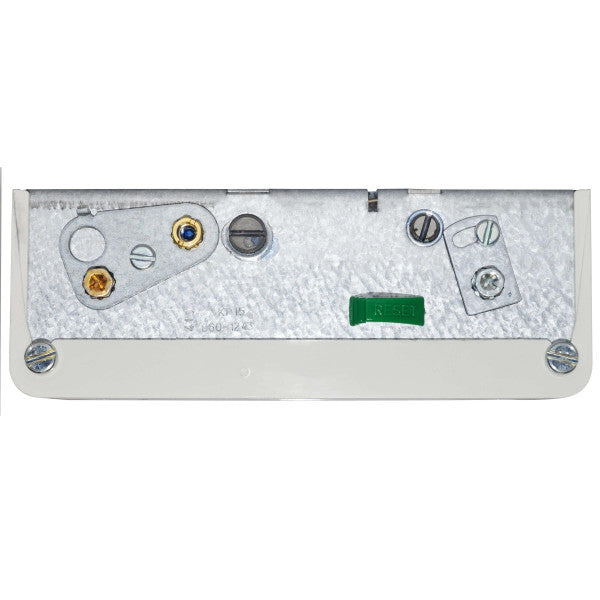

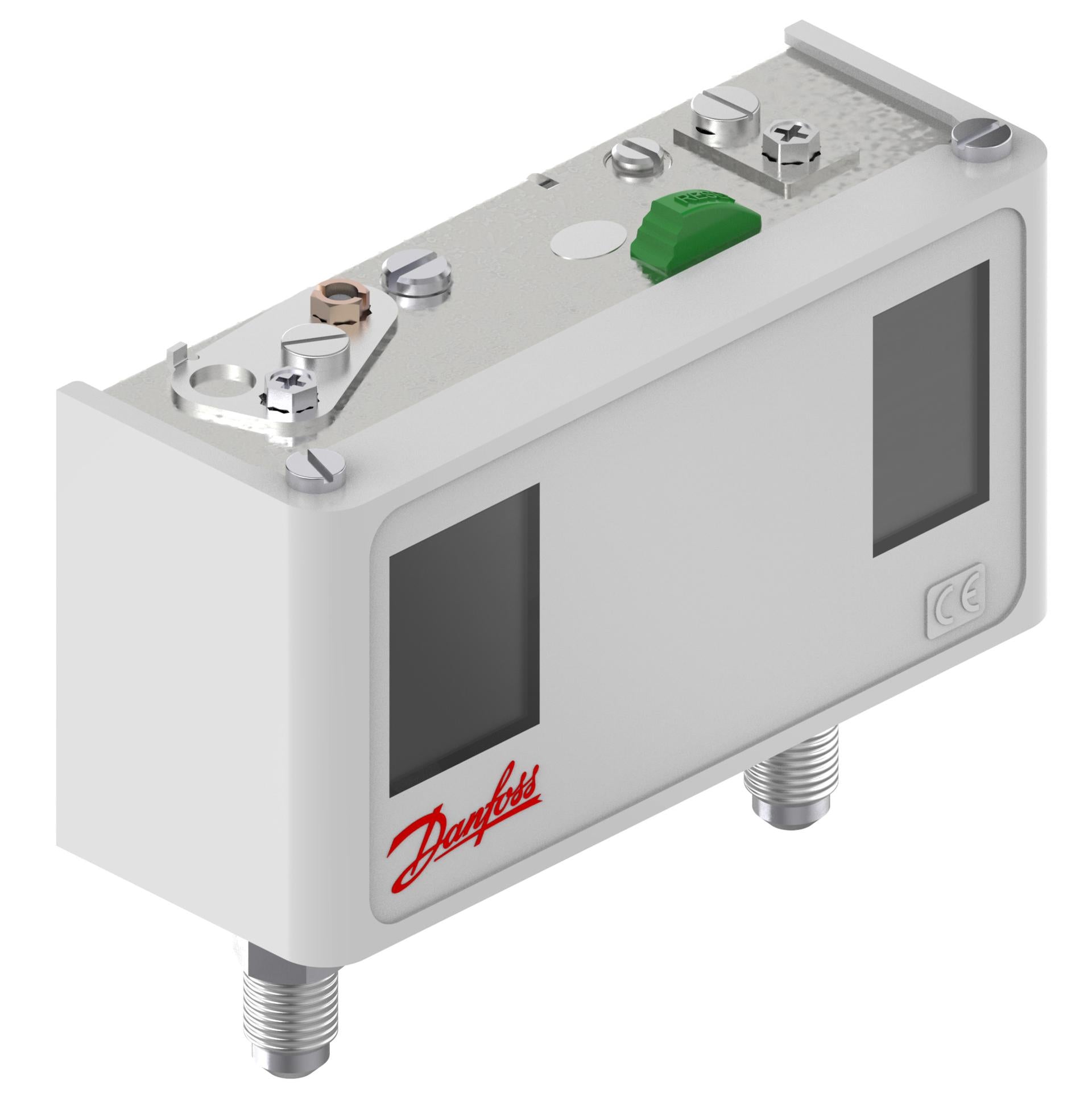

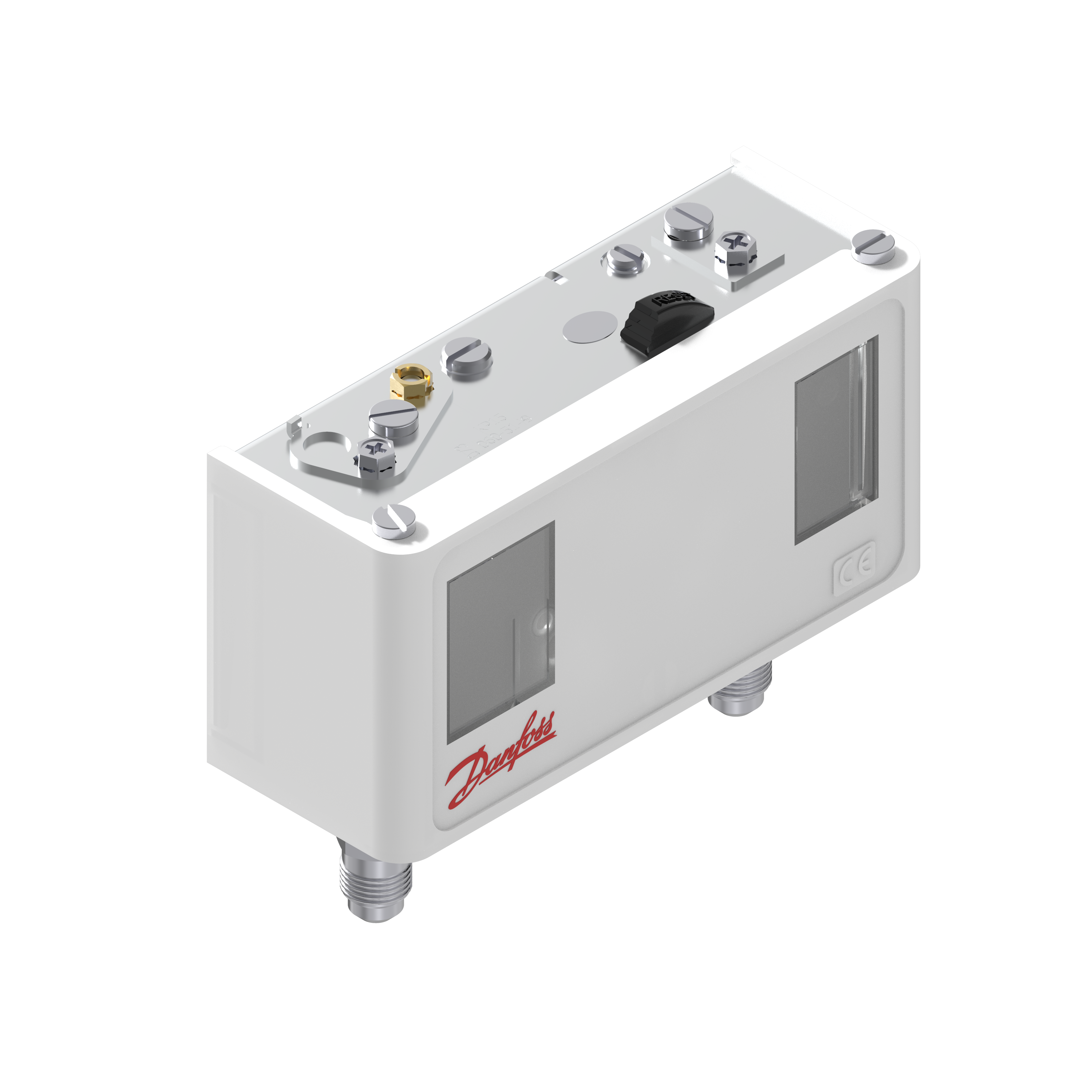

Danfoss 060-124391 is a KP15 dual pressure control switch designed for refrigeration and HVAC applications. The device provides separate left- and right-side regulation ranges, bellows pressure sensing with a 1/4 in flare male connection, and SPDT electrical contacts. The left side features automatic reset while the right side uses manual reset. Electrical termination is via a rubber cable gland (6-14 mm). Not applicable for liquid line service.
- Dual-sided regulation: left -0.2 to 7.5 bar (differential 0.7-4.0 bar); right 8 to 32 bar (fixed differential 4.0 bar)
- SPDT contact function with contact ratings including AC1/AC3 16 A at 400 V and AC15 10 A at 400 V; DC13 12 W at 220 V

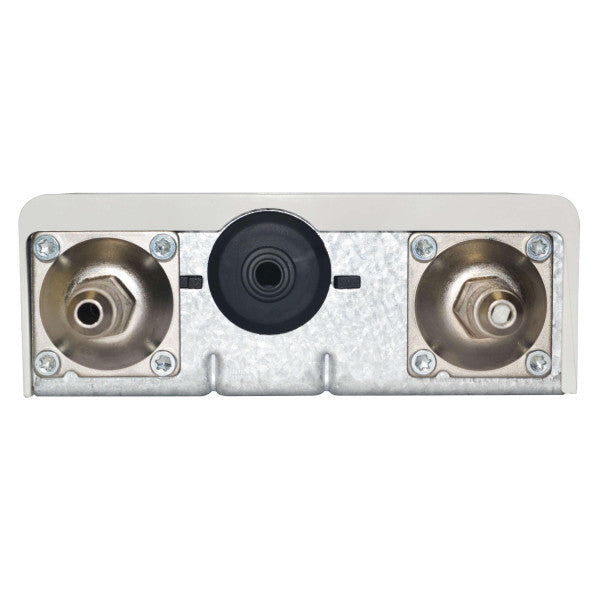

- 1/4 in flare male pressure connection, bellows sensing element, electrical rubber cable gland (6-14 mm), enclosure rating IP30
Product Highlights
Dual-stage KP15 pressure switch with bellows sensing, SPDT contacts, left auto reset/right manual reset, 1/4 in flare connection, and multiple international approvals
Product Information
Standard Information
-
Brand: DANFOSS
-
Manufacturer Part Number: 060-124391
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Danfoss
-
MPN: 060-124391
-
Model: KP15
-
Product description: Dual Pressure Control
-
Product group: Switches and thermostats
-
Pressure sensing element: Bellows
-
Pressure connection size: 1/4 in
-
Pressure connection type: Flare (male)
-
Pressure connection standard: DIN 8906
-
Regulation left side (Pe): -0.2 to 7.5 bar (6 inHg to 108 psig)
-
Regulation right side (Pe): 8 to 32 bar (116 to 464 psig)
-
Differential left side: 0.7 to 4.0 bar (10 to 58 psi)
-
Differential right side: 4.0 bar (fixed)
-
Reset function left side: Auto
-
Reset function right side: Manual
-
Contact function: SPDT
-
Contact rating: AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V
-
Electrical connection: Rubber cable gland
-
Electrical connection size: 6-14 mm
-
EN 60947 electrical properties: Insulation 400 V; Pollution degree 3; Rated impulse voltage 4 kV; Short circuit protection fuse 16 A
-
EN 60947 wiring properties: Flex ferrules 0.5-1.5 mm2; Flex no ferrules 0.7-2.5 mm2; Solid/stranded 0.75-2.5 mm2
-
Enclosure rating: IP30 (NEMA 1)
-
Max test pressure left side: 20 bar
-
Max test pressure right side: 35 bar
-
MWP left side (Pe): 17 bar (245 psig)
-
MWP right side (Pe): 35 bar (510 psig)
-
Lubricants compatibility: Oil-free applications
-
Application note: Not applicable for liquid line
-
Approvals / Certifications: BV, CCC, CE, DNV, GL, LR, LVD, RINA, RMRS, RoHS China, cUL/us UL873, CSA C22.2
-
Ambient temperature range: -40 to 65 C (80 C for max 120 min as note)
-
EAN / GTIN: 5702424498115
-
Replacement part number: 060-124566
