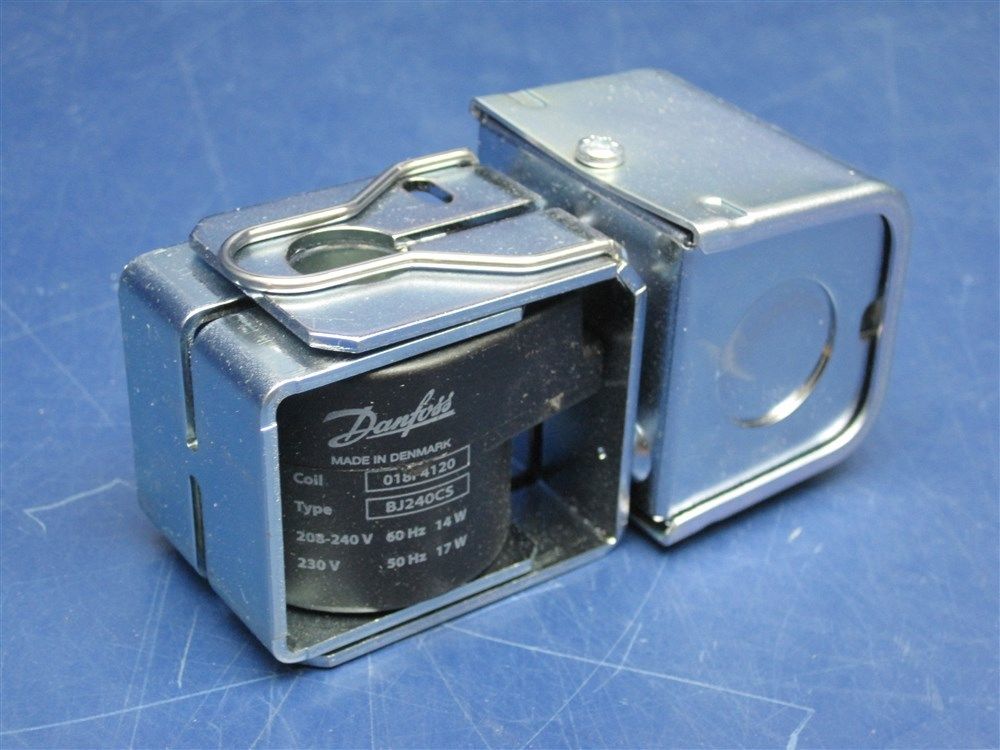

DANFOSS-018F4120 Coil Group 230 Volt Junction Box

Product Description

The HEATCONTROLLERDANFOSS018F4120 DANFOSS-018F4120 is a 230-volt coil group assembly with an integrated junction box, designed for use with solenoid valve bodies in HVAC and refrigeration control applications. The coil group generates the electromagnetic field required to actuate the solenoid valve, controlling fluid or refrigerant flow through the system. Rated at 230 volts, it is suited for commercial and light-industrial installations. Licensed HVAC technicians and refrigeration mechanics are the primary installers of this component.

This coil group assembly is typically installed on compatible solenoid valve bodies in refrigeration systems, chiller circuits, heat pump applications, and commercial HVAC equipment requiring 230-volt control voltage. The junction box enclosure provides a protected termination point for field wiring, simplifying installation and supporting code-compliant connections. It is used in both new equipment installations and service replacement scenarios where the original coil has failed or been damaged.

Key Features

• 230-volt rated coil for compatibility with standard commercial control circuits
• Integrated junction box for protected, code-friendly field wiring termination
• Solenoid actuator design controls refrigerant or fluid flow through valve body
• Suitable for HVAC and refrigeration system applications

Compatibility

Designed as an OEM-style replacement coil group for solenoid valve bodies requiring a 230-volt coil with junction box enclosure in HVAC and refrigeration applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or refrigeration mechanic. De-energize and lock out the system before removing or installing the coil group. Ensure field wiring is routed and terminated inside the junction box in accordance with applicable NEC requirements. Do not energize the coil while it is removed from a valve body, as operating a solenoid coil without its iron core can cause overheating and damage.

Technical Specifications

• Voltage: 230 volts
• Component Type: Coil Group with Junction Box

Standard Information

• Brand: HEATCONTROLLERDANFOSS018F4120
• Manufacturer Part Number: DANFOSS-018F4120
