Danfoss 003Z0286 Valve Tailpiece 1.5 inchesNpt

Product Description

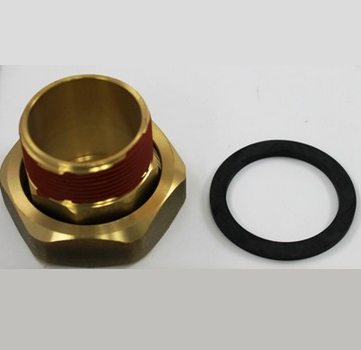

The DANFOSS 003Z0286 is a valve tailpiece with a 1.5" NPT connection. This threaded tailpiece kit is designed as an AB-QM accessory, suitable for pressure independent balancing and control valves. It includes one nut, one threaded tailpiece, and one gasket, with two kits required per valve.

• Connection to valve: DN 40 (1 ½")
• Connections: NPT (male)
• Usage: AB-QM

Product Highlights

Threaded tailpiece kit for AB-QM pressure independent control valves. Includes nut and gasket.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 003Z0286
• Country of Origin: United States

Technical Specifications

• Country of Origin (subject to change) [Specifications]: United States
• Type: AB-QM accessories
• Product group: Pressure independent balancing and control valves
• Gross weight: 0.42 Kilogram
• Net weight: 0.42 Kilogram
• Volume: 0.121 Liter
• Comments: One nut, one threaded tailpiece, one gasket (two kits required per valve)
• Connection to valve: DN 40 (1 ½")
• Connections: NPT (male)
• Contains batteries: No
• Usage: AB-QM
• Model: 003Z0286
• SKU: G003Z0286
• Condition: New
