Dakota Plumbing Products DSM-1616CP Undermount Bar Sink

Product Description

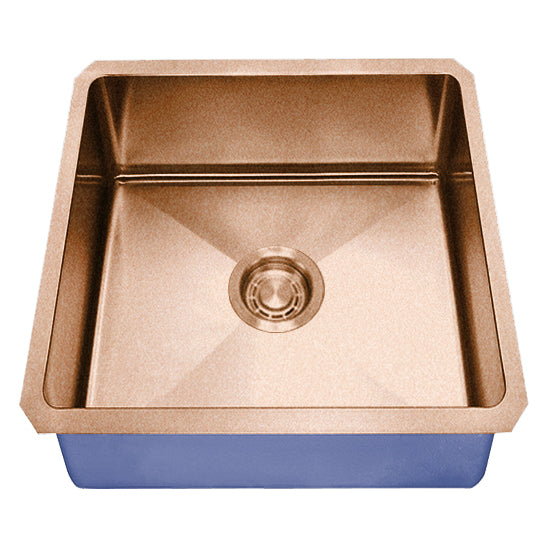

The DAKOTA PLUMBING PRODUCTS DSM-1616CP is a single-bowl undermount bar sink constructed from 16-gauge 304 stainless steel with an 18/10 chrome and nickel content for long-term corrosion resistance. Finished in a copper tone, it features micro-radius corners measuring 15 millimeters for a contemporary profile that is easier to wipe clean than traditional rounded corners. The channeled sink bottom directs water toward a centered 3.5-inch drain opening for efficient drainage. A thermal undercoating and extra-large sound-dampening pads form the Peacekeeper sound absorption system, reducing operational noise and preventing condensation on the underside of the bowl. Licensed plumbers and kitchen installers handle this type of fixture.

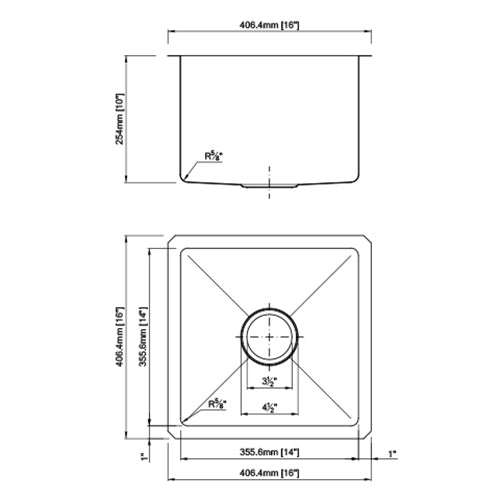

The DSM-1616CP is sized for bar and kitchen applications where cabinet space is limited. The overall dimensions of 16.75 inches by 16.75 inches by 10 inches and a bowl measuring approximately 14 inches by 14 inches by 10 inches make it well suited to cabinets under 24 inches wide. It is intended for undermount installation in bar areas, prep stations, and compact kitchen layouts where a single-bowl configuration handles rinsing, food prep, and light cleanup tasks efficiently.

Key Features

• 16-gauge 304 stainless steel construction with 18/10 chrome and nickel content for corrosion resistance
• Micro-radius corners at 15 millimeters provide a contemporary look and simplify cleaning
• Centered 3.5-inch drain with channeled bowl bottom for fast, directed drainage
• Peacekeeper system combines thermal undercoating and extra-large sound-dampening pads to reduce noise and condensation
• Includes a custom bottom grid (DSM-BG1616) and basket strainer for added bowl protection
• Lifetime limited warranty coverage included

Compatibility

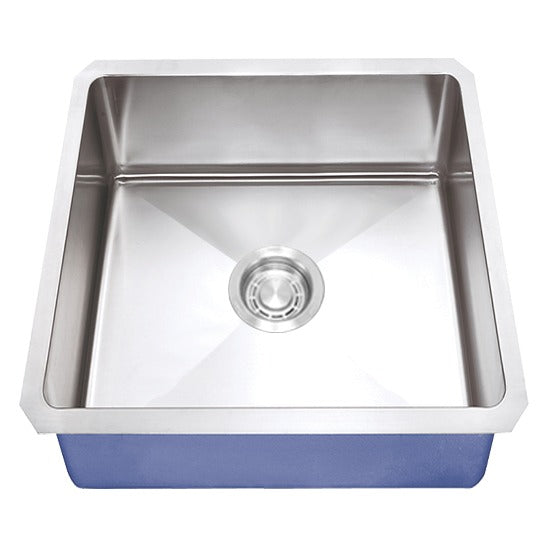

Designed as an undermount single-bowl bar sink for cabinets under 24 inches wide. Part of the Marela collection, also available in Satin Brushed Nickel, Silver, Gold, and Gunmetal Black finishes.

Installation Notes

Undermount sink installation requires a licensed plumber or qualified installer familiar with countertop cutout requirements and undermount clip or adhesive fastening systems. Shut off the water supply and disconnect the drain assembly before removing any existing sink. Follow local plumbing codes, including applicable IPC provisions, for drain connection and venting. Silicone sealant suitable for stainless steel and stone or solid-surface countertops should be used at the mounting perimeter to ensure a watertight seal.
