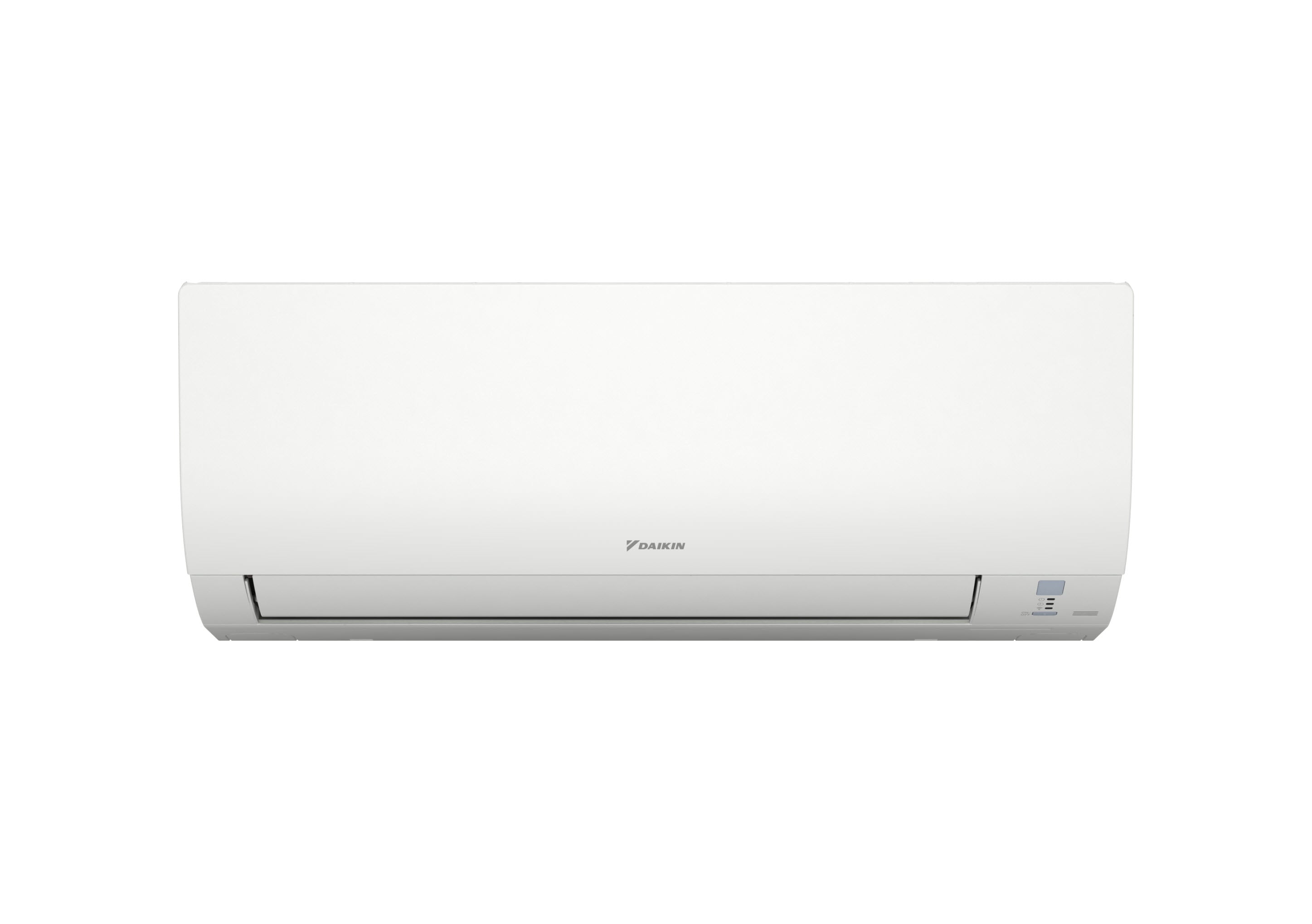

Daikin FTXQ12ASBU9 Oterra 115V R-32--12K Indoor High Wall Unit

Product Description

The Daikin FTXQ12ASBU9 Oterra 115V R-32--12K Indoor High Wall Unit is a series indoor mini-split fan coil heat pump. This unit features comfortable airflow and comfort control, ensuring a reliable operation. Designed for easy maintenance and installation, this indoor unit is ideal for residential single-family use.

• Confortable airflow
• Comfort control
• Reliable operation

Product Highlights

This Daikin Oterra indoor unit offers efficient heating and cooling with easy installation and maintenance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: FTXQ12ASBU9
• Country of Origin: Mexico

Technical Specifications

• Model Number: FTXQ12ASBU9
• Brand: Daikin
• Product Category: Ductless Mini-Splits
• Product Class - (PIM): Mini-Split Fan Coils
• System Family: Mini-Split
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Indoor
• Market Type: Residential-Single Family
• Product Family: FTXQ_ASBU9
• Series Name: Daikin Oterra 115V
• Installation Type: Wall Mounted
• ENERGY STAR® Certified: No
• Country of Origin: Mexico
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Rated Heating Condition - (Room DB): 70 °F
• Rated Heating Condition - (Room WB): 60 °F
• Current Type: AC
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Air Flow Rate (High) - Cooling: 413 ft³/min
• Air Flow Rate (High) - Heating: 434 ft³/min
• Air Flow Rate (Low) - Cooling: 244 ft³/min
• Air Flow Rate (Low) - Heating: 244 ft³/min
• Air Flow Rate (Medium) - Cooling: 311 ft³/min
• Air Flow Rate (Medium) - Heating: 321 ft³/min
• Sound Pressure (High) - Cooling: 46 dBA
• Sound Pressure (High) - Heating: 45 dBA
• Sound Pressure (Low) - Cooling: 31 dBA
• Sound Pressure (Low) - Heating: 30 dBA
• Sound Pressure (Medium) - Cooling: 38 dBA
• Sound Pressure (Medium) - Heating: 37 dBA
• Cooling Capacity - (Rated): 12000 Btu/H
• Cooling Capacity - (Sensible): 9310 Btu/H
• Cooling Input Power: 1.16 kW
• Heating Capacity - (Rated): 13500 Btu/H
• Heating Input Power: 1.3 kW
• Refrigerant Type: R-32
• Dimensions - (Unit Depth): 8-3/4 in
• Dimensions - (Unit Height): 11-1/4 in
• Dimensions - (Unit Width): 30-5/16 in
• Weight - (Unit): 19 lb
• ETL Listed: Yes
• Max Outdoor Units: 1.0
• Proposition 65 Label: Yes
• Case Qty: 1
• Cooling Operation Range - (Std. Max): 114.8 °F
• Cooling Operation Range - (Std. Min): 50 °F
• Heating Operation Range - (Std.Max): 64.4 °F
• Heating Operation Range - (Std.Min): 5 °F
• Air Flow Rate (Super Low) - Cooling: 124 ft³/min
• Air Flow Rate (Super Low) - Heating: 208 ft³/min
• Heat Exchanger Type: Air Cooled
• Sound Pressure (Super Low) - Cooling: 21 dBA
• Sound Pressure (Super Low) - Heating: 25 dBA
• Tonnage: 1.0
• Condensate Drain Outlet: 5/8 in
• Pipe Size Gas: 3/8 in
• Pipe Size Liquid: 1/4 in
• Rated Height Difference: 50 ft
• Rated Piping Length: 50 ft
• Refrigerant Pre-Charged Line Length: 50 ft
• Standard Line Set Length - (Max): 66 ft
• Carton Type: CTN
• Dimensions - (Case Depth): 33.50 in
• Dimensions - (Case Height): 12.50 in
• Dimensions - (Case Width): 14.50 in
• Dimensions - (Pallet Depth): 48.00 in
• Dimensions - (Pallet Height): 30.00 in
• Dimensions - (Pallet Width): 45.00 in
• Dimensions - (Shipping Unit Depth): 33.50 in
• Dimensions - (Shipping Unit Height): 12.50 in
• Dimensions - (Shipping Unit Width): 14.50 in
• Shipping Volume - (Unit): 6071.875 in³
• Truck Factor: 0.0
• Volume - (Case): 6071.875 in³
• Weight - (Case): 26.000 lb
• Weight - (Distribution Shipping Unit): 25 lb
• Weight - (Shipping Unit): 26.000 lb
• Release Status: Active
• UPC: 633190268600
• Product Height (in): 11.3
• Configuration: Wall Mounted
• Product Length (in): 8.8
• Air Flow Direction: Horizontal
• Product Width (in): 30.4
• Blower Motor: Variable Speed
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 15 amps
• Warranty: 12 Year Parts
• Suction Line Size: 5/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 115 V
• Item Name: Indoor Unit
• Series: R32 Split Series
• Air Flow: 413 cfm
• Frequency: 60 Hz
• Noise Rating: 46 dBA
• Phase: 1 ph
• Breaker Size: 15 A
• Minimum Circuit: 15 A
• Compressor: Swing Compressor
• Dimensions: 11-1/4 in H x 30-5/16 in W x 8-3/4 in D
• Maximum Pipe Length: 66 ft
• Mounting: Wall Mounting
• Discharge Line Size: 1/4 in
• EER Rating: 12
• HSPF Rating: 9
• Mounting Type: Wall mount
• Nominal Capacity: 1.0T
• Power Source: 60 Hz, 1 Ph, 115 V
• SEER Rating: 20
• Type: Heat Pump
