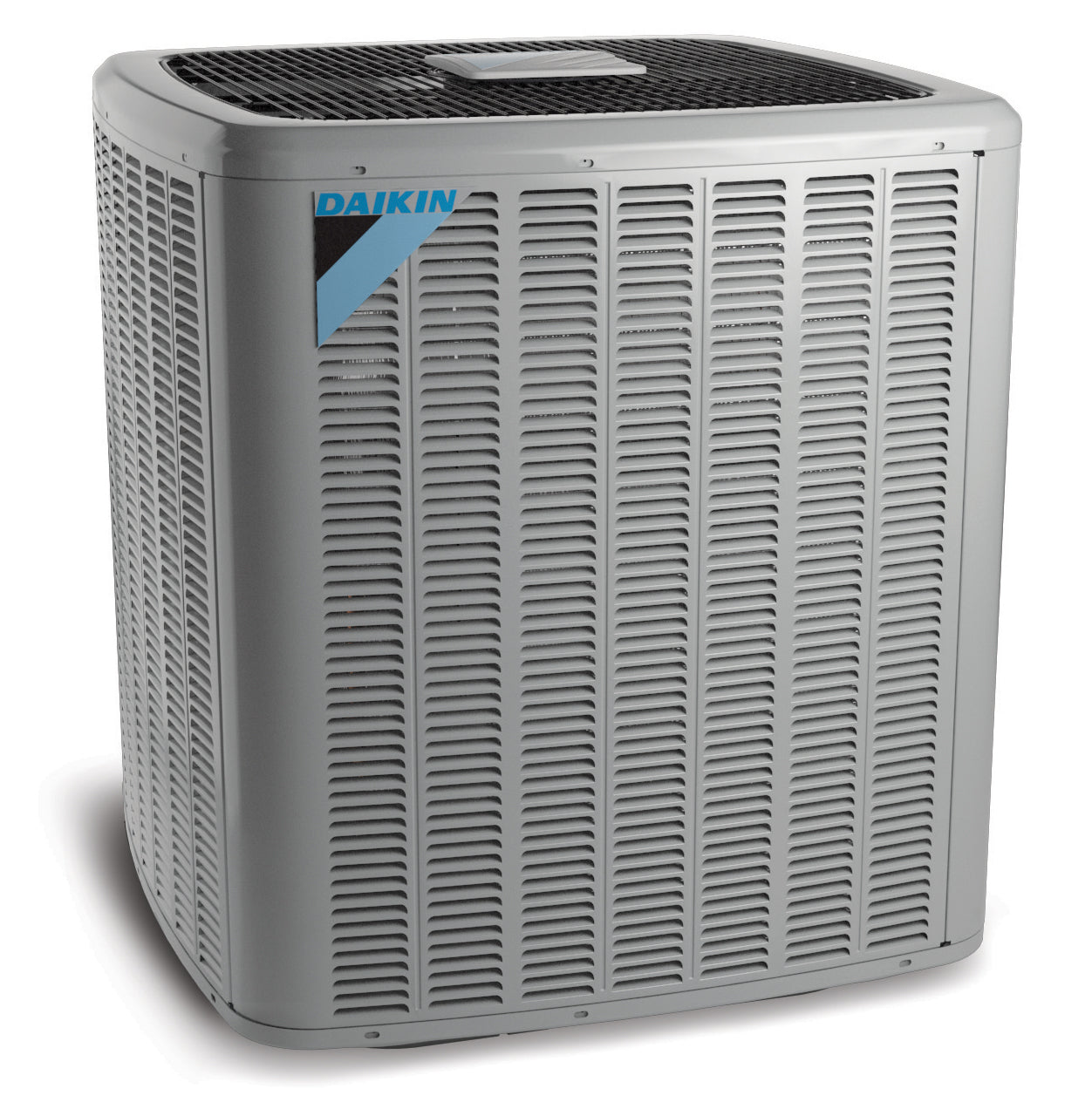

Daikin DX18TC0241 split air conditioner 18 SEER two stage 2 ton

Product Description

The DAIKIN DX18TC0241 Split Air Conditioner is an 18 SEER, two-stage, 2-ton outdoor unit designed for efficient cooling. This high-efficiency system features a two-stage scroll compressor and is compatible with the Daikin One+ Smart Thermostat. It operates on a single power phase at 208/230 V and 60 Hz, utilizing R-410A refrigerant. The unit provides a rated cooling capacity of 23400 BTU/hr.

• Two-stage scroll compressor for enhanced performance.
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment.
• Features diagnostic indicator lights and fault code storage for easy troubleshooting.

Product Highlights

High-efficiency 18 SEER, two-stage split air conditioner with R-410A refrigerant, AHRI Certified and ETL Listed.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DX18TC0241
• Country of Origin: USA

Technical Specifications

• Product Type: Split Air Conditioner
• Model Family: DX18TC
• Tonnage: 2 tons
• SKU: DX18TC0241
• Unit Type: Outdoor
• Depth: 35-3/4 inches
• Width: 35-3/4 inches
• Height: 40 inches
• Power Phase: 1
• Refrigerant Type: R-410A
• Max Voltage: 253 V
• Minimum Circuit Amps: 15.3 A
• Min Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Cabinet Features: Heavy-gauge galvanized-steel cabinet with grille-style sound control top design. Custom Nickel Gray powder-paint finish. 500-hour salt-spray tested. Wire fan discharge grille. Steel louver coil guard. Top and side maintenance access. Single-panel access to controls with space provided for field-installed accessories. When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
• SEER Rating: 18 SEER
• Motor Speed Type: Two-Speed ECM
• Compressor Stages: Two Stage
• Family Description: High-Efficiency, Communicating, Split System Air Conditioner Up to 19 SEER
• Cooling Capacity Rated: 23400 BTU/hr
• Airflow Rate Low Cooling: 570 CFM
• Airflow Rate High Cooling: 760 CFM
• Liquid Line Valve O.D.: 3/8 inches
• Suction Line Valve O.D.: 3/4 inches
• Installation Type: Ducted
• Communication Feature: Yes
• Thermostat Compatibility: Daikin One+ Smart Thermostat compatible
• EER: 13.0
• Compressor LRA: 62.9 Amps
• Compressor RLA: 10.0 Amps
• Current Type: AC
• Max Overcurrent Protection: 25 Amps
• Max Starting Current: 15.3 Amps
• Outdoor Fan FLA: 2.8 Amps
• Power Supply Conduit Size: 1/2 in;3/4 in
• Compressor Sound Blanket: Yes
• Condenser Fan Blade Count: 3.0
• Condenser Fan Diameter: 26 in
• Condenser Fan RPM: 850 r/min
• Expansion Device: TXV
• Sound Pressure High Cooling: 71 dBA
• Sound Pressure Low Cooling: 68 dBA
• Condenser Fan Horsepower: 1/3 metric hp
• Cooling Capacity Sensible: 17900 BTU per Hour
• Cooling Input Power: 1.8 kilowatts
• Sensible Heat Ratio: 0.758
• Additional Refrigerant Charge per Foot: 0.6 ounces per foot
• Factory Standard Refrigerant Charge: 135 ounces
• Refrigerant Pre-Charged Line Length: 15 feet
• Max Standard Line Set Length: 150 feet
• Vertical Standard Line Set Length: 25 feet
• Valve Connection Type: Sweat
• Rated Cooling Ambient Dry Bulb: 95 °F
• Rated Cooling Ambient Wet Bulb: 75 °F
• Rated Cooling Room Dry Bulb: 80 °F
• Rated Cooling Room Wet Bulb: 67 °F
• Subcooling Temperature at Service Valve: 6 °F
• Superheat Temperature at Service Valve: 8 °F
