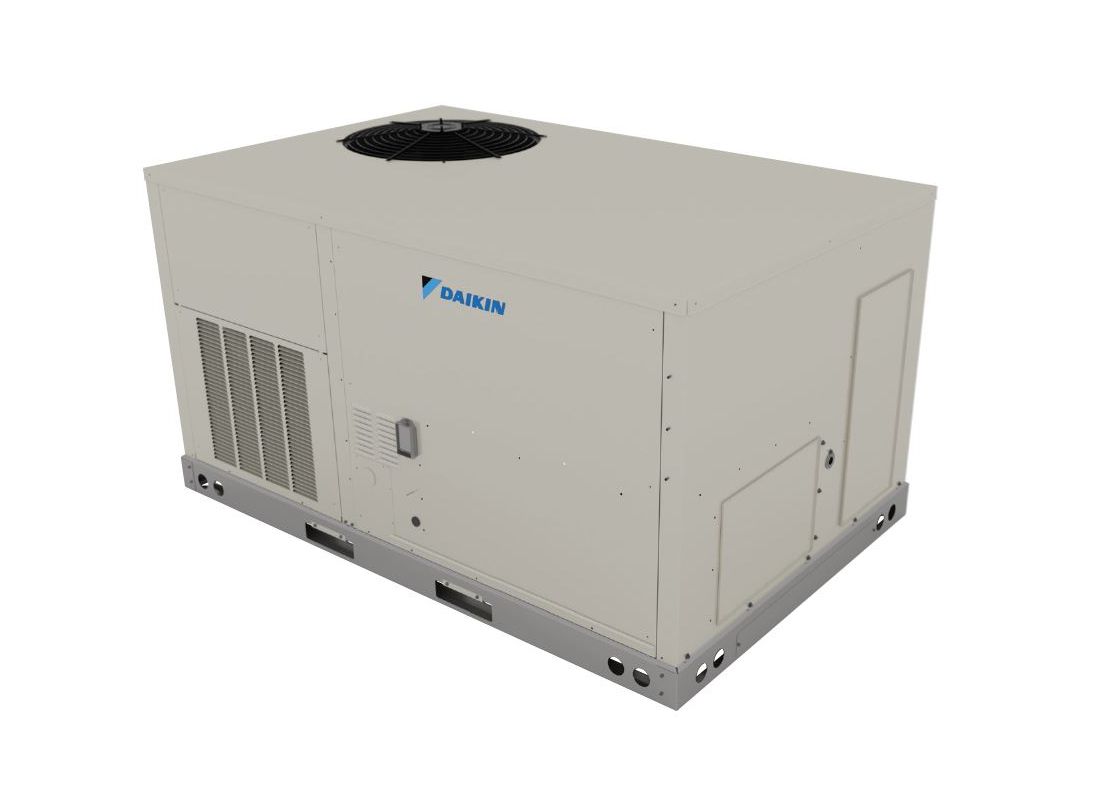

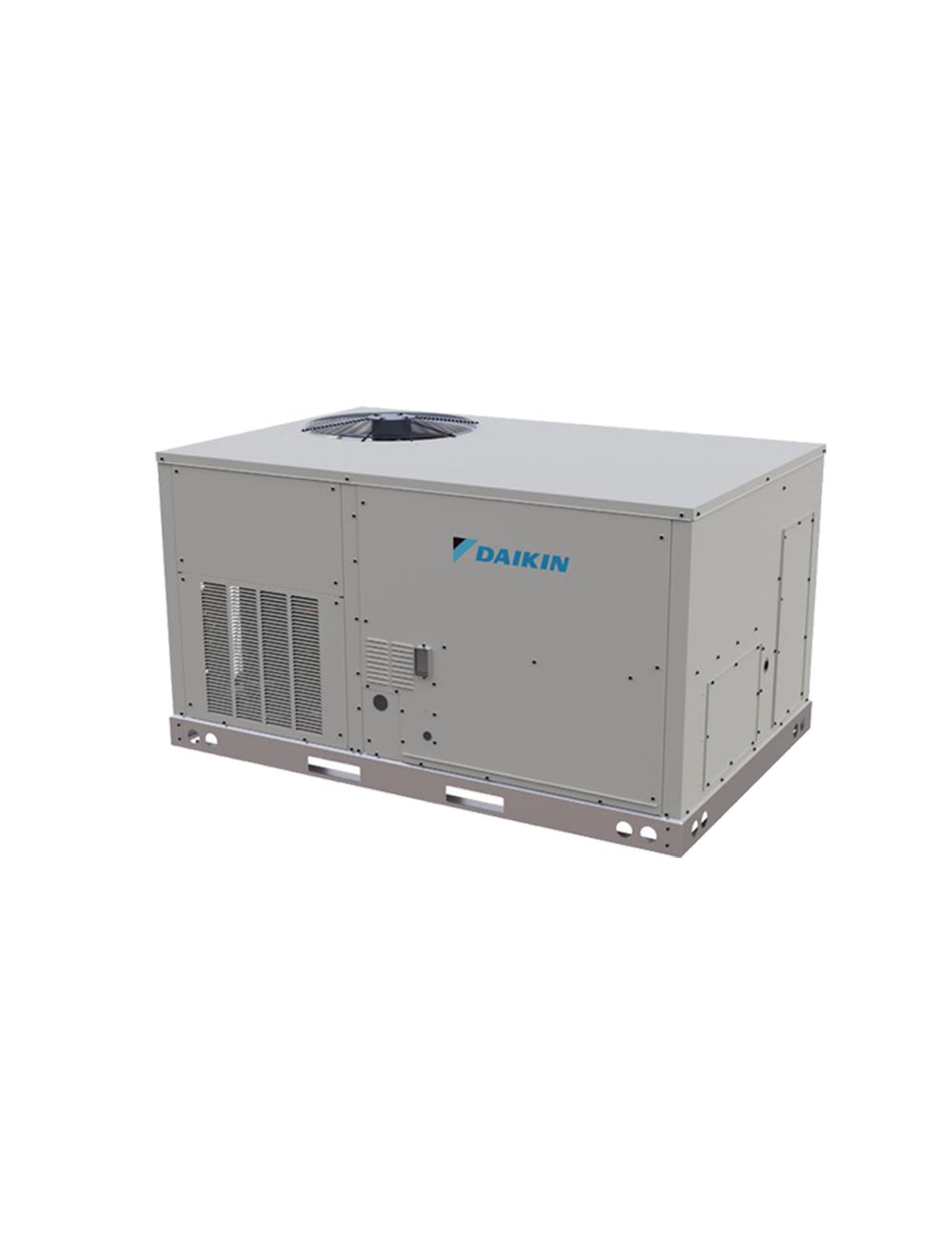

Daikin DSH0484D000001S Light Commercial Packaged Heat Pump 4 Ton REPLACEMENT DFH0484D000001S

Product Description

The Daikin DSH0484D000001S light commercial packaged heat pump is designed for fast and easy installation, ideal for new construction and retrofit projects. This 4 ton unit operates at 460V and utilizes R32 refrigerant. It features a direct-drive supply fan with aluminum blades for efficient and quiet operation. Constructed with high-quality galvanized steel and a powder-paint finish for corrosion resistance.

• Designed for fast and easy installation in new and retrofit projects.
• Direct-drive supply fan with aluminum blades ensures efficient and quiet operation.
• Constructed with high-quality galvanized steel and powder-paint finish for enhanced corrosion resistance.

Product Highlights

This Daikin packaged heat pump offers efficient heating and cooling, designed for durability and ease of installation in light commercial applications.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DSH0484D000001S
• Country of Origin: Japan

Technical Specifications

• MPN: DSH0484D000001S
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Heat Pump
• System Family: Light Commercial Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DSH048D
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Item Stocking Unit of Measure (UOM): EA
• Pallet Qty: 1.0
• Product ID: DSH0484D000001S
• Cooling Capacity - (Nominal): 46000 Btu/H
• COP47 (HSVTC): 3.98
• EER (HSVTC): 11.8
• EER Ducted: 11.8
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 45000 Btu/H
• SEER (HSVTC): 13.7
• Total BTU/h: 46000 Btu/H
• Compressor LRA: 55.1 A
• Compressor RLA: 5.8 A
• Indoor Blower FLA: 2.5 A
• Max Overcurrent Protection: 15 A
• Min. Circuit Amps: 10.4 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 460 V
• Total Unit Amps: 9 A
• Air Flow Rate (High) - Cooling: 1600 ft³/min
• Air Flow Rate (High) - Heating: 1600 ft³/min
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Condenser Coil Metal Type: Copper
• Condenser Coil Rows: 2.0
• Condenser Fan Blade Count: 4.0
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Dimensions - (Evap Wheel Diameter): 12 in
• Dimensions - (Evap Wheel Width): 11 in
• Dimensions - (Unit Depth): 74 in
• Dimensions - (Unit Height): 39-7/8 in
• Dimensions - (Unit Width): 48-5/16 in
• Energy Source: Electric
• ETL Listed: Yes
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 4.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1500 r/min
• Expansion Device: TXV
• External Static Pressure - (Rated): 0.8
• Filter Size - (Max): 14 X 20 X 2
• Filter Size - (Min): 14 X 20 X 2
• Heat Exchanger Type: Air Cooled
• Number of Speeds: 5
• Sound Pressure (High) - Cooling: 77 dBA
• Sound Pressure (Super High) - Cooling: 77 dBA
• System High Pressure: 660 lb/in²
• System Low Pressure: 22 lb/in²
• Weight - (Unit): 586 lb
• Condenser Fan Horsepower: 1/4 metric hp
• Evap Motor Horsepower: 1.2 metric hp
• Cooling Capacity - (Rated): 46000 Btu/H
• Heating Capacity - (Rated): 45000 Btu/H
• Sensible Heat Ratio - (S/T): 0.78
• Tonnage: 4.0
• Condensate Drain Outlet: 3/4 in
• Factory Std. Refrigerant Charge: 168 oz
• Pipe Size Gas: 7/8 in
• Pipe Size Liquid: 3/8 in
• Refrigerant Type: R-32
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1.0
• Dimensions - (Case Depth): 74.50 in
• Dimensions - (Case Height): 43.00 in
• Dimensions - (Case Width): 48.50 in
• Dimensions - (Shipping Unit Depth): 74.50 in
• Dimensions - (Shipping Unit Height): 43.00 in
• Dimensions - (Shipping Unit Width): 48.50 in
• Shipping Volume - (Unit): 155369.750 in³
• Volume - (Case): 155369.750 in³
• Weight - (Case): 605.090 lb
• Weight - (Shipping Unit): 605.090 lb
• Release Status: Active
• Refrigerant Charge: Pre-charged
• Weight (in lbs): 586.000000
• Replaces: DFH0484D000001S
• HSPF2: 6.70
• Cooling BTU: 46,000 BTU
• Heating BTU: 46,000 BTU
• Drive Type: Direct
• Maximum CFM: 1,580
• Decibel Level (dBA): 78 decibels
• SEER2 (Efficiency): 13.4
• Condenser Stages: Single Stage
• Electrical: 460 V. 3 Phase 60 Hz
• Phase: Three Phase
• Max Breaker Size: 15 amps
• Min. Breaker Size: 10.8 amps
• Height: 39 7/8"
• Width: 74"
• Depth: 48 5/16"
• AHRI Number: 215414901
• Voltage Rating: 460 V
• Amperage Rating: 10.4 A
• HSPF Rating: 6.9
• HP Rating: 1.2 hp
• Rotational Speed: 1500 rpm
• CFM Rating: 1580 cfm
• Configuration: Standard Efficiency
• EER Rating: 11.8
• Number of Stages: 1
• Fuse Rating: 15 A
• Fins per Inch: 16 FPI
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Dimensions: 73-3/8 in L x 48-5/16 W x 39-7/8 in H
• Additional Information: 4-Row
• Model Number(s): DSH0484D000001S
• Ton: 4.0 Ton
• Cooling Btu: 46,000
• Heating Btu: 45,000
• Cooling Stage(s): 1
• Heating Stage(s): 1
• Compressor Stage: Single
• Amp(s): 15
• Length (Inches): 74
• Motor Type: Direct Drive - Standard Static
• Nom. CFM: 1,580
• Nom. Tons: 4
• Volts: 460
• Wt. Lbs.: 586
• Sound Rating: 73 dB
• Ampere Rating: 5.8 A
• Capacity in Ton: 4
• Valve Type: Thermal Expansion
• Capacity in Tons: 4
• Standards: AHRI Certified, cETLus Intertek Listed
• Condensate Connection: 3/4 in FNPT
• Construction: Powder Painted Galvanized Steel
• Capacity Cooling: 46000 Btu/hr
• Capacity Heating: 45000 Btu/hr
• Capacity Heating at 47 Deg F: 45 mbh
• Capacity Heating at 17 Deg F: 26 mbh
• Electrical Conduit Size: 1/2 in
• Full Load Amperage: 0.7/2.5 A
• HSPF Heating: 6.9
• Locked Rotor Amperage: 55.1 A
• Power Consumption Rated (Max.)Heating @ 17 Deg F: 3.18 kW
• Power Consumption Rated (Max.)Heating@17 Deg F: 3.18 kW
• Power Consumption Rated (Min. - Max.)Heating @ 47 Deg F: 3.66 kW
• Power Consumption Rated (Min. - Max.)Heating@47 Deg F: 3.66 kW
• Rated Load Amperage[Compressor]: 5.8 A
• Locked Rotor Amps: 55.1 A
• Maximum Overcurrent Amps: 15 A
• Outdoor Coil Number of Rows: 4
• Power Supply Connection: 1-1/8 in
• Stages of Cooling: 1
• Cooling Input Power: 3.8 kW
