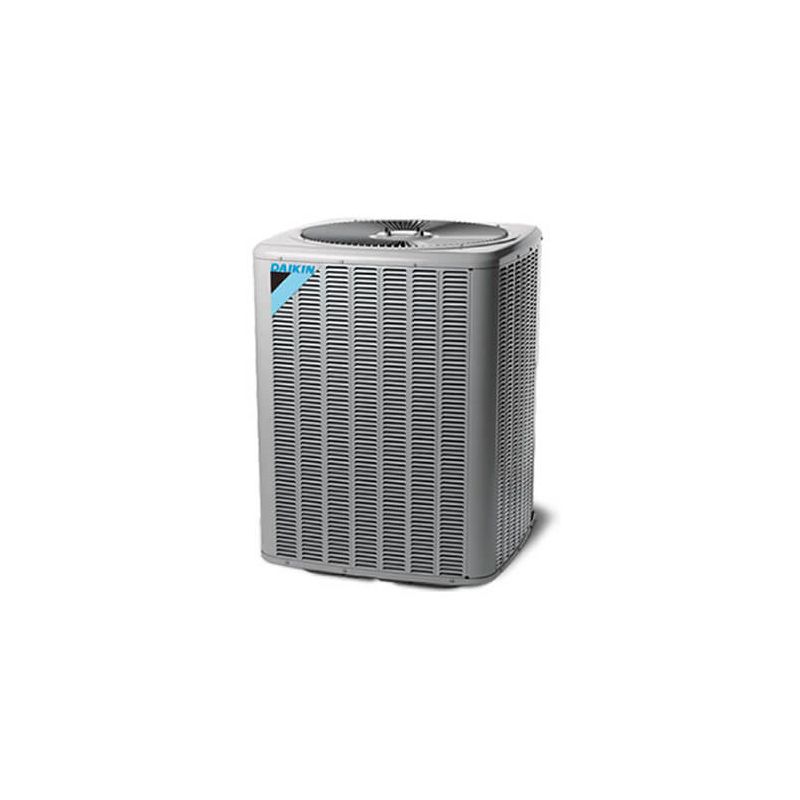

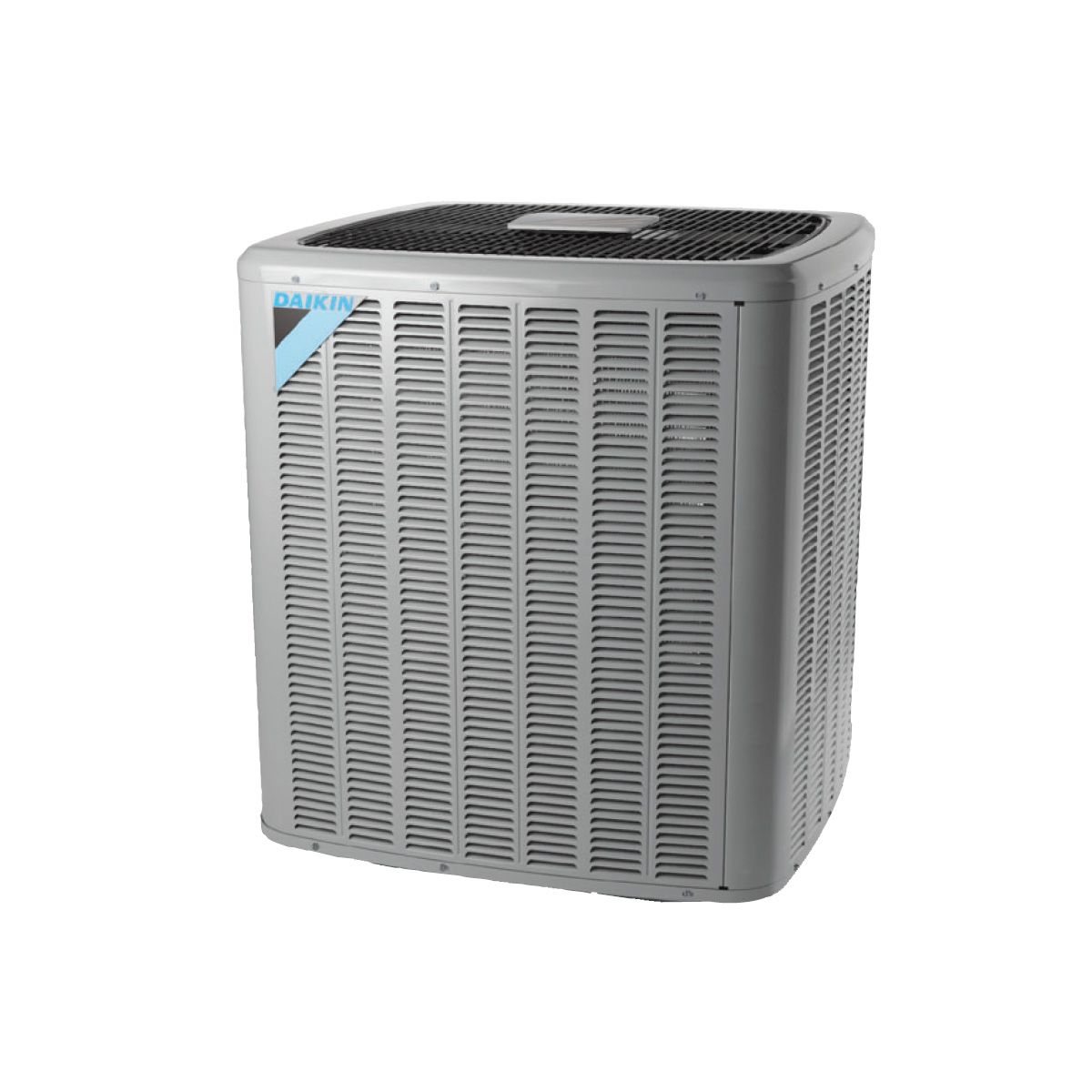

DAIKIN DH4SEA6030 Heat Pump 5 Ton

DAIKIN
Brand: DAIKIN
SKU: DH4SEA6030
Availability: In Stock

Ships via freight in 1-3 business days
$5,073.20
$5,073.20
LTL Delivery

This product weighs 286 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The DAIKIN DH4SEA6030 heat pump provides energy-efficient cooling and heating. This single stage, non-communicating 5 ton unit is suitable for ground-level or rooftop installations. It operates at 208/230V and 60 Hz. The design includes an innovative louvered sound control top. It uses R-32 refrigerant.

  • High-efficiency Copeland scroll compressor
  • Advanced Copeland CoreSense technology
  • Enhanced aluminum fin coil with 5mm diameter copper tubes in 3-ton and 7mm in 4.0- to 5.0-ton

Key Features

  • Single stage scroll compressor
  • R-32 refrigerant
  • Louvered sound control top
  • Suitable for ground-level or rooftop installation
Technical Specifications
Product Category
Light Commercial
Product Class
Split Heat Pump
System Family
Light Commercial Split System
Function Category
Heat Pump
Product Type
Equipment
Unit Type
Condensing
Market Type
Residential-Single Family
Product Family
DH4SEA_3
Compressor Stages
Single Stage
Compressor Type
Scroll
Cooling Capacity (Nominal)
60000 Btu/H
EER2 (HSVTC)
12.5
ENERGY STAR Certified
No
HSPF 2 (HSVTC)
8.2
SEER 2 (HSVTC)
14.3
Cooling Operation Range (Std. Max)
125 deg F
Cooling Operation Range (Std. Min)
55 deg F
Heating Operation Range (Std. Max)
70 deg F
Heating Operation Range (Std. Min)
-20 deg F
Rated Cooling Condition (Ambient DB)
95 deg F
Rated Cooling Condition (Ambient WB)
75 deg F
Rated Heating Condition (Ambient DB)
47 deg F
Rated Heating Condition (Ambient WB)
43 deg F
Max Overcurrent Protection
35 A
Min. Circuit Amps
20.5 A
Power Frequency
60 Hz
Power Phase
3 Ph
Power Voltage
208/240 V
Rated Load Amps
15.36 A
Sound Pressure (High) - Cooling
74 dBA
Cooling Capacity (Rated)
57300 Btu/H
Heating Capacity (Rated)
57000 Btu/H
Refrigerant Type
R-32
Refrigerant Pre-Charged Line Length
15 ft
Standard Line Set Length (Max)
200 ft
Standard Line Set Length (Vertical)
79 ft
Dimensions (Unit Depth)
35.5 in
Dimensions (Unit Height)
36.6 in
Dimensions (Unit Width)
35.5 in
Tonnage
5.0
Refrigerant Charge
194
Replaces
DZ14SA0603
Cooling BTU
56,500 BTU
Heating BTU
59,000 BTU
Decibel Level (dBA)
75 decibels
EER
11.5
Liquid Line
3/8 in
Suction Line
1 1/8 in
Liquid Valve Size
3/8 in
Suction Valve Size
7/8 in
Electrical
208/230 V. 3 Phase 60 Hz
Phase
Three Phase
Max Breaker Size
35 amps
Min. Breaker Size
21.5 amps
Height
34.25 in
Width
35.5 in
Depth
35.5 in
Item Name
Heat Pump
Series
DH4SEA
Type
Commercial
Motor Type
PSC
Nominal Capacity
60000 Btu/hr
Cooling Capacity
60000 Btu/hr
SEER Rating
14.3
SEER
14.3
Voltage Rating
208/230 V
Frequency Rating
60 Hz
Heating Capacity
60000 Btu/hr
Horse Power
1/4 hp
Capacity in Ton
5 ton
Suction Line Size
1-1/8 in
Liquid Line Size
3/8 in
Motor Amperage
1.3 A
Operating Temperature Range
-5 to 65 deg F
Dimensions
41-3/4 in H x 35-1/2 in W x 35-1/2 in D
Electrical Conduit Size
3/4 in, 1/2 in
Stages of Cooling
Single
Standards
AHRI Certified, ETL Listed, cETLus Listed
Parts Warranty (Years)
5
Compressor Stage
Single
Heating Stage(s)
1
Amp(s)
35
Electrical Phase(s)
3-Phase
Suction Valve Size (Inches)
1 1/8
Liquid Valve Size (Inches)
3/8
Height (Inches)
41 5/8
Width (Inches)
35 1/2
Depth (Inches)
35 1/2
Brand
DAIKIN
Manufacturer Part Number
DH4SEA6030
