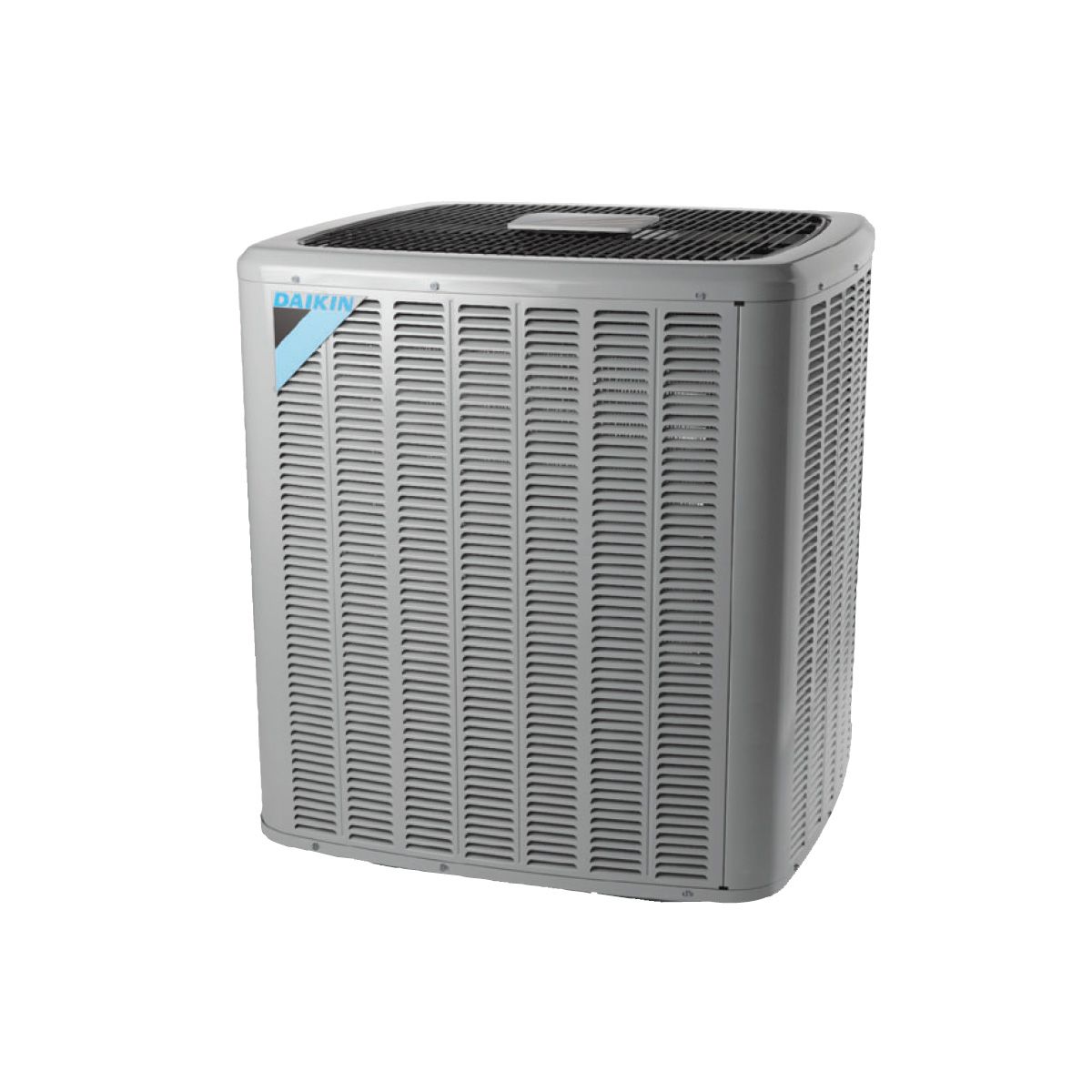

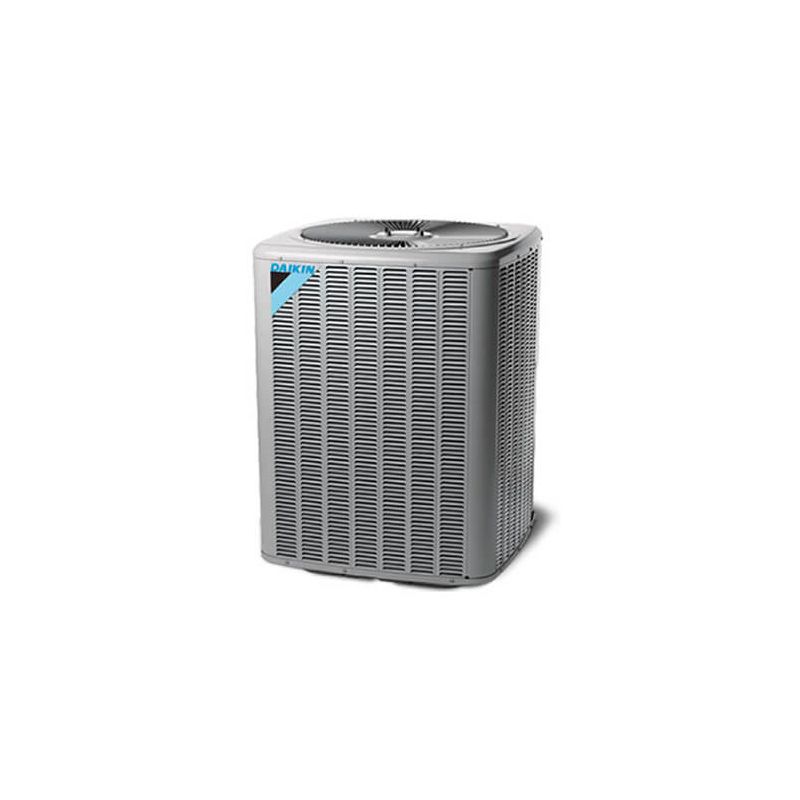

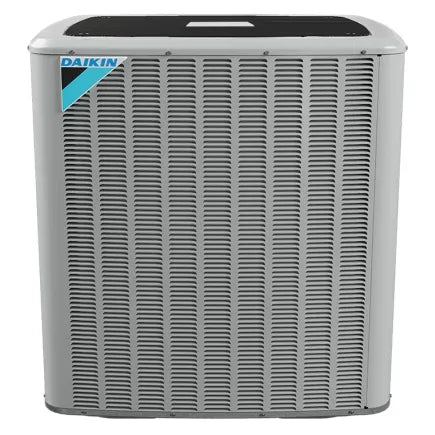

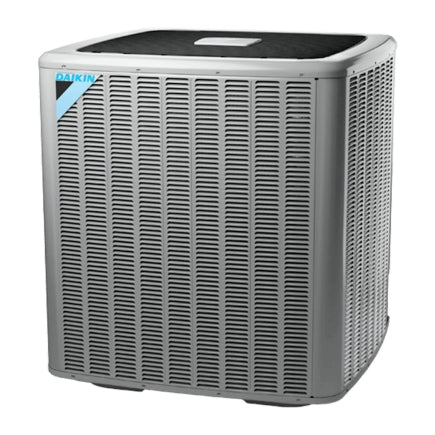

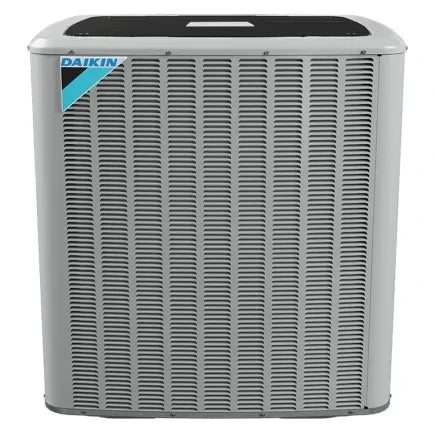

Daikin DH4SEA3630 Split Heat Pump, Single Stage 3 Ton

Product Description

The Daikin DH4SEA3630 split heat pump is a single-stage, non-communicating unit with a 3-ton capacity. This heat pump features a high-efficiency Copeland scroll compressor and advanced Copeland CoreSense technology. It is suitable for ground-level or rooftop installations. The unit is fully charged for 15' of tubing length.

• High-efficiency Copeland scroll compressor
• Advanced Copeland CoreSense technology
• Enhanced aluminum fin coil with 5mm diameter copper tubes in 3-ton

Product Highlights

This Daikin heat pump provides energy-efficient cooling and heating performance. It features a removable grille-style top design compliant with UL 60335-2-40 and a custom Nickel Gray powder-paint finish.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DH4SEA3630

Technical Specifications

• Brand: Daikin
• MPN: DH4SEA3630
• Product Category: Light Commercial
• Product Class - (PIM): Split Heat Pump
• System Family: Light Commercial Split System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Condensing
• Market Type: Residential-Single Family
• Product Family: DH4SEA_3
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Cooling Capacity - (Nominal): 36000 Btu/H
• EER2 (HSVTC): 12.5
• ENERGY STAR® Certified: No
• HSPF 2 (HSVTC): 7.5
• SEER 2 (HSVTC): 14.3
• Power Voltage: 208/240 V
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Refrigerant Type: R-32
• Tonnage: 3.0
• Cooling Operation Range - (Std. Max): 125 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Heating Operation Range - (Std.Max): 70 °F
• Heating Operation Range - (Std.Min): -20 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Min. Circuit Amps: 14.2 A
• Max Overcurrent Protection: 20 A
• Rated Load Amps: 10.56 A
• Sound Pressure (High) - Cooling: 72 dBA
• Dimensions - (Unit Depth): 35.5 in
• Dimensions - (Unit Height): 36.6 in
• Dimensions - (Unit Width): 35.5 in
• Weight - (Unit): 198 lb
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 200 ft
• Standard Line Set Length - (Vertical): 79 ft
• Pipe Size Liquid: 3/8 in
• Valve Size Suction (O.D.): 7/8 in
• Cooling Capacity - (Rated): 35000 Btu/H
• Heating Capacity - (Rated): 34400 Btu/H
• Refrigerant Charge: 83
• Cooling BTU: 34,600 BTU
• Heating BTU: 32,800 BTU
• Decibel Level (dBA): 74 decibels
• Refrigerant: R32
• SEER1 (Efficiency): 14
• EER: 11.5
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Liquid Valve Size: 3/8"
• Suction Valve Size: 3/4" (3)
• Electrical: 208/230 V. 3 Phase 60 Hz
• Phase: 3 ph
• Max Breaker Size: 20 amps
• Min. Breaker Size: 14.1 amps
• Height: 32.25"
• Width: 29"
• Depth: 29"
• Model Number(s): DH4SEA3630
• Type: Heat Pump
• Ton: 3.0 Ton
• SEER: 14.3
• Cooling Btu: 36,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Heating Btu: 36,000
• Heating Stage(s): 1
• Voltage: 240
• Electrical Phase(s): 3-Phase
• Amp(s): 20
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• Height (Inches): 39 5/8
• Width (Inches): 35 1/2
• Depth (Inches): 35 1/2
• Item Name: Heat Pump
• Series: DH4SEA
• Motor Type: PSC
• Color: Gray
• Nominal Capacity: 36000 Btu/hr
• Cooling Capacity: 36000 Btu/hr
• SEER Rating: 14.3
• Voltage Rating: 208/230 V
• Frequency Rating: 60 Hz
• Heating Capacity: 36000 Btu/hr
• Horse Power: 1/6 hp
• Capacity in Ton: 3 ton
• Suction Line Size: 7/8 in
• Liquid Line Size: 3/8 in
• Motor Amperage: 0.97 A
• Operating Temperature Range: -5 to 65 deg F
• Dimensions: 35-3/4 in H x 35-1/2 in W x 35-1/2 in D
• Electrical Conduit Size: 3/4 in, 1/2 in
• Stages of Cooling: Single
• Standards: AHRI Certified, ETL Listed, cETLus Listed
• Model: DH4SEA3630
• UPC: 633190265975
• AHRI Number: 215685292
• Product Height (in): 35.8
• Avg Coverage Area: 1,500 - 1,800 Sq Ft
• Product Length (in): 35.5
• Product Width (in): 35.5
• Primary Heating Capacity: 35,001 - 40,000
• System Application Type: Central Split Systems
• Region Compatibility: Nationwide
