Daikin DAX12043 Air Handler, Motor, 10 Ton

Product Description

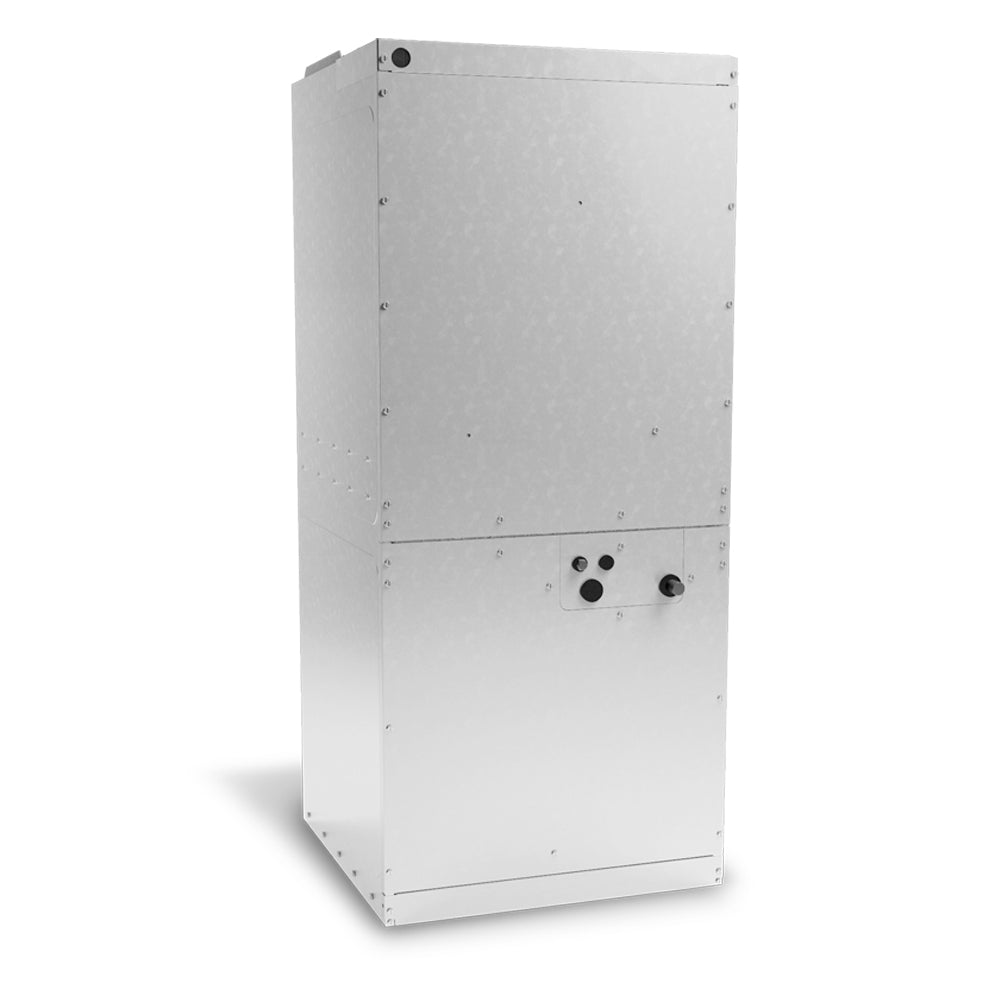

The DAIKIN DAX12043 air handler is designed for indoor use in light commercial split systems. This 10-ton air handler features a heavy-gauge, reinforced, galvanized-steel cabinet fully insulated with a fiberglass blanket. It includes horizontal and vertical condensate pans and a built-in filter rack with a 2" filter. The unit supports both upflow and horizontal (left side) installation.

• Suitable for upflow or horizontal (left side) installation
• Features two thermal expansion valves (TXV Control)
• Equipped with two 5-speed direct-drive motors

Product Highlights

This DAIKIN air handler is AHRI Certified and ETL Listed, ensuring quality and safety. It operates on 208/240V power with a 3-phase configuration and uses R-410A refrigerant.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DAX12043
• Country of Origin: USA

Technical Specifications

• Class: Air Handler
• Family: DAX
• Tonnage: 10 tons
• Category: Air Handler
• Keywords: DAX12043
• Unit Type: Indoor
• Unit Depth: 60.5 in
• Unit Width: 48.125 in
• Power Phase: 3 Ph
• Refrigerant Type: R-410A
• Unit Height: 24 in
• Max. Voltage: 253 V
• Min. Circuit: 15.5/15.5 A
• Min. Voltage: 197 V
• Power Voltage: 208/240 V
• Power Frequency: 60 Hz
• Cabinet Features: Heavy-gauge, reinforced, galvanized-steel cabinet Fully insulated with fiberglass blanket Horizontal and vertical condensate pans Built-in filter rack (2" filter included) Entry on top of panel for both low and high voltage Removable access panels make servicing of unit faster and easier
• Product Category: Light Commercial
• Product Class - (PIM): Air Handler
• System Family: Light Commercial Split System
• Function Category: Air Handler
• Product Type: Equipment
• Market Type: Light Commercial
• Product Family: DAX
• Cooling Capacity: 120000 Btu/H
• Current Type: AC
• Electric Heat Range: 15 kW;20 kW;30 kW
• Max Overcurrent Protection: 20 A
• Condensate Drain Outlet: 3/4 in
• Blower Motor HorsePower: 1 metric hp
• BTU Rating: 120000 Btu/hr
• HP Rating: 1 hp
• CFM Rating: 4000 cfm
• Voltage Rating: 208/230 V
• Amperage Rating: 15.5 A
• Wattage: 30 kW
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Configuration: Multi-Position
• Liquid Line Size: 3/8 in
• Suction Line Size: 1-1/8 in
• Coil Rating: 10 sq-ft
• Connection Type: FPT
• Motor Type: Direct Drive
• Material: Steel
• Finish: Galvanized
• Connection Size: 3/4 in
• Filter Size: 16 x 20 x 2 in, 20 x 20 x 2 in
• Number of Stages: 2
• Number of Speeds: 5
