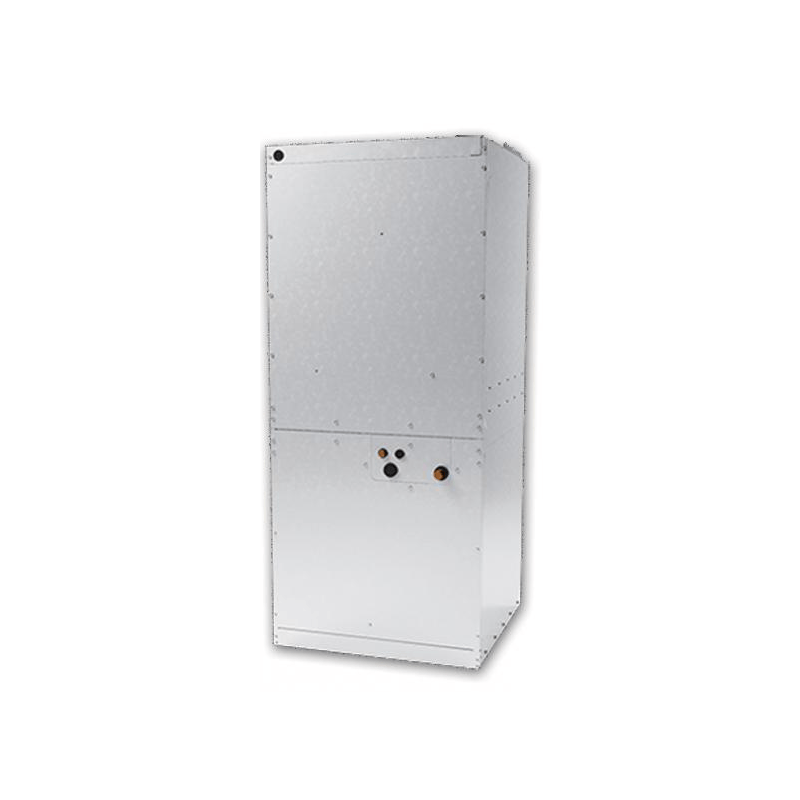

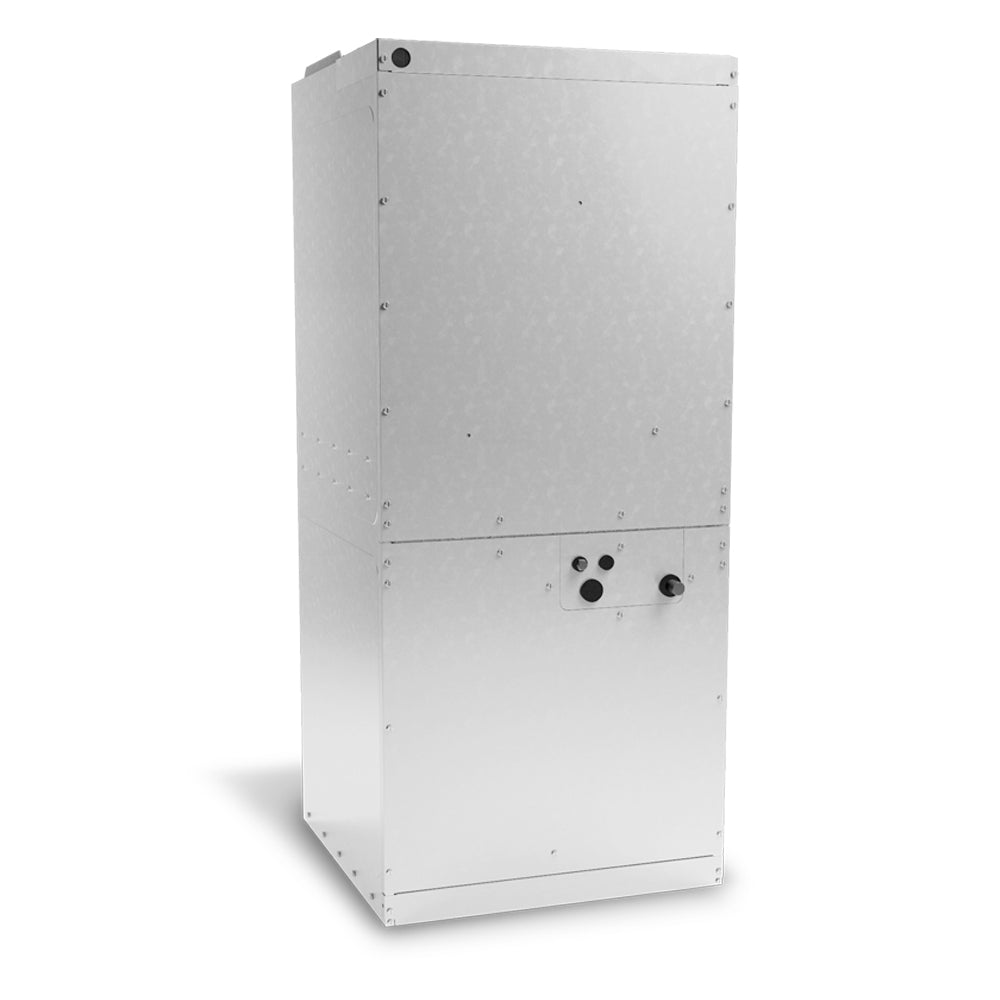

Daikin DAX09043 Air Handler, Motor, 7.5 Ton

Product Description

The DAIKIN DAX09043 air handler features a motor and is designed for a 7.5-ton capacity. It is equipped with a cabinet that includes expansion capabilities. This unit is designed for indoor use and utilizes R-410A refrigerant. It features a heavy-gauge, reinforced, galvanized-steel cabinet insulated with a fiberglass blanket.

• Suitable for upflow or horizontal (left side) installation.
• Features TXV control with two thermal expansion valves.
• AHRI Certified and ETL Listed.

Product Highlights

The DAX09043 air handler is designed for efficient and versatile installation, featuring robust construction and certified performance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DAX09043
• Country of Origin: USA

Technical Specifications

• Class: Air Handler
• Family: DAX
• Tonnage: 7.5 tons
• Category: Air Handler
• Unit Type: Indoor
• Unit Depth: 60.5 in
• Unit Width: 48.125 in
• Power Phase: 3 Ph
• Refrigerant Type: R-410A
• Unit Height: 24 in
• Max Voltage: 253 V
• Min. Circuit Amps: 15.5/15.5 A
• Min. Voltage: 197 V
• Power Voltage: 208/240 V
• Power Frequency: 60 Hz
• Product ID Bar Code: DAX09043
• Prop65 Label Required: TRUE
• Product Category: Light Commercial
• System Family: Light Commercial Split System
• Function Category: Air Handler
• Product Type: Equipment
• Market Type: Light Commercial
• Cooling Capacity: 90000 Btu/hr
• Current Type: AC
• Electric Heat Range: 15 kW;20 kW;30 kW
• Max Overcurrent Protection: 20 A
• Blower Motor HorsePower: 1 metric hp
• Condensate Drain Outlet: 3/4 in
• Replaces: DAT09043
• Cooling BTU: 90,000 BTU
• Blower Motor: Multi Speed - PSC
• Drive Type: Belt
• Maximum CFM: 3000
• Liquid Line: 3/8" (2)
• Suction Line: 1 1/8" (2)
• Phase: Three Phase
• Nominal Capacity: 7.5 ton
• HP Rating: 1 hp
• CFM Rating: 3000 cfm
• Amperage Rating: 15.5 A
• Wattage: 30 kW
• Configuration: Multi-Position
• Connection Type: FPT
• Coil Rating: 10 sq-ft
• Connection Size: 3/4 in
• Liquid Line Size: 3/8 in
• Suction Line Size: 1-1/8 in
• Filter Size: 16 x 20 x 2 in, 20 x 20 x 2 in
• Number of Stages: 2
• Number of Speeds: 5
• Motor Type: Direct Drive
• Material: Steel
• Finish: Galvanized
