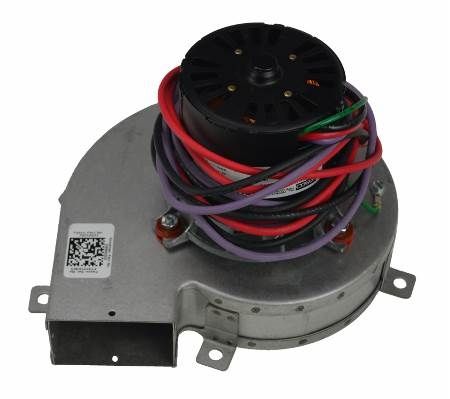

Daikin D9886202 Draft Inducer Motor Assembly 240V 1 Phase 105W

Product Description

The Daikin D9886202 draft inducer motor assembly is made for combustion applications. It runs on 240 V, 60 Hz, single-phase power. This motor has a power rating of 105 W and a current of 0.5 A. It can operate at two speeds, achieving a maximum of 3000 rpm. The motor features direct drive functionality with counter-clockwise rotation. Its enclosure style is Open Air Over (OAO). Key dimensions include a diameter of three point three inches, a width of eight inches, a height of five point seven six inches, and a depth of seven point seven five inches. The product uses a sleeve bearing and is classified under Class B insulation.

• Operates at 240 V, 60 Hz, single-phase power.
• Two-speed operation with a maximum speed of 3000 rpm.
• Constructed with sleeve bearing and OAO enclosure.

Product Highlights

The Daikin D9886202 is vital for efficient combustion processes in HVAC systems.

Product Information

Standard Information

• Brand: Daikin
• Type: Combustion Motor

Technical Specifications

• Voltage: 240 V
• Power: 105 W
• Phase: 1 Ph
• Frequency: 60 Hz
• Class: Class B
• Current: 0.5 A
• Bearing: Sleeve Bearing
• Drive: Direct Drive
• Rotation: Counter Clockwise
• Enclosure: OAO
• Speed: 2 Speed
• RPM: 3000 rpm
• Diameter: 3.3 inches
• Width: 8 inches
• Height: 5.76 inches
• Depth: 7.75 inches
