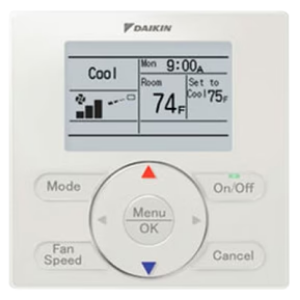

Daikin BRC1NRV72 Navigation Remote Controller Wired

DAIKIN
Brand: DAIKIN
SKU: BRC1NRV72
Availability: In Stock

Ships same day if ordered by 12 pm
$465.09
$465.09
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Daikin BRC1NRV72 is a wired navigation remote controller for VRV, SkyAir and NEXIO Max systems that provides configurable display modes, scheduling, and advanced diagnostics. It supports R-32 VRV and R-32 SkyAir indoor units as well as many previous-generation VRV systems, offers dual or single setpoint control and supports up to 16 indoor units per remote control group.

  • Backlit navigation display with configurable Detailed, Standard, and Simple modes; built-in room temperature sensor and 12/24 hour clock
  • Weekly scheduling with up to 5 events per day, dual or single cool/heat setpoints and independent unoccupied setback setpoints
  • NEXIO Max features including CO2 and humidity monitoring, Optimum Start/Stop, Title 24 economizer setpoints, and multi-zone VAV control

Product Highlights

Wired wall-mounted controller with backlit display, built-in room sensor, scheduling, 16-unit group support, and NEXIO Max monitoring and VAV control features

Product Information

Standard Information

  • Brand: DAIKIN
  • Manufacturer Part Number: BRC1NRV72
Technical Specifications
Model/MPN
BRC1NRV72
Brand
Daikin
Product type
Navigation remote controller / wall-mounted controller
Type
Wired navigation controller
Application
VRV, SkyAir and NEXIO Max systems; ductless systems
Compatible systems
R-32 VRV, R-32 SkyAir indoor units, NEXIO Max systems, and many previous-generation VRV systems
Indoor units compatibility examples
FAQ, FBQ, FCQ, FHQ, FTQ SkyAir indoor units
Display modes
Configurable: Detailed, Standard, Simple
User interface
Backlit display; 12/24 hour clock; Fahrenheit/Celsius selectable
Languages supported
English, French, Spanish (buttons and system status display in English only)
Setpoints
Dual or single Cool and Heat setpoints for occupied periods; independent setback setpoints for unoccupied periods
Scheduling
Weekly schedules (7-day, 5+1+1, 5+2, Everyday); up to 5 events per day
Remote group capacity
Supports up to 16 indoor units per remote control group
Room sensing
Built-in room temperature sensor with adjustable offset
Security / lockouts
Disable unwanted buttons/modes; individual button prohibit; configurable power-off behavior
Auto features
Auto-changeover for Heat Recovery and Heat Pump systems; automatic Daylight Savings Time adjustment; Optimum Start/Stop
NEXIO Max features
CO2 monitoring with trend graph; humidity monitoring and setpoint control; Title 24 economizer setpoints; multi-zone VAV static pressure control; discharge air temperature control; single- and multi-zone VAV fan speed control
Diagnostics
Real-time malfunction/error monitoring and display
Dimensions
4.72 in H x 4.72 in W x 0.75 in D
Manufacturer
Daikin Company, L.P.
Series
Sky-Air
