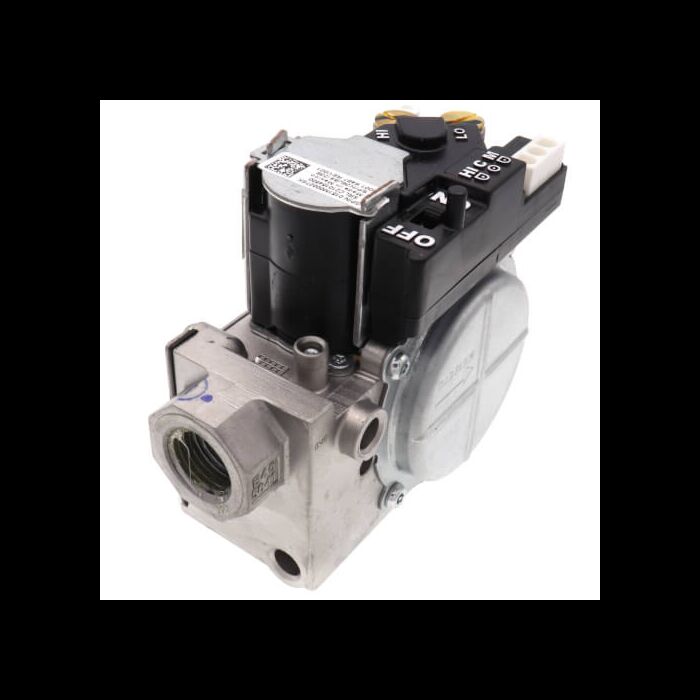

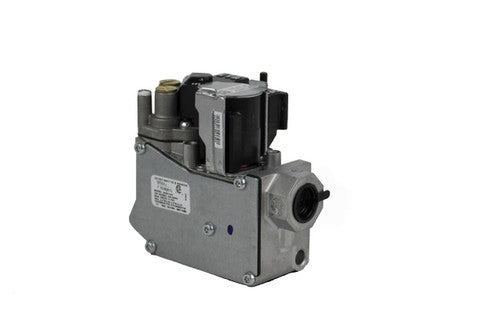

Daikin 0151M00027SK Gas Valve Kit

Product Description

The DAIKIN 0151M00027SK gas valve kit is made for furnace applications. This kit contains a gas valve, wiring harness, and installation instructions. The two-stage valve works with both natural gas and LP gas and has fast opening attributes. It is compatible with hot surface or direct spark ignition systems.

• Includes gas valve and wiring harness.
• Compatible with natural gas and LP gas.
• Designed for furnace applications.

Product Highlights

Product Information

Standard Information

• Manufacturer: White-Rodgers
• Model Number: 36J54-238

Technical Specifications

• MPN: 0151M00027SK
• Ignition Type: Hot Surface or Direct Spark
• Gas Type: Natural or LP Gas
• Stages: 2
• Opening Characteristics: Fast
• Max BTU/HR: 140,000 (Natural); 226,800 (LP Gas)
• Voltage: 24
• Hertz: 50/60
• Amperage: 0.430
• Pressure Regulator Factory Set To (Natural/High): 3.5 W.C.
• Pressure Regulator Factory Set To (Natural/Low): 2.0 W.C.
• Pressure Regulator Adjustment Range (Natural/High): 2.0-5.0
• Pressure Regulator Adjustment Range (Natural/Low): 1.0-4.0
• Pressure Regulator Adjustment Range (LP Gas/High): 8.0-12.0
• Pressure Regulator Adjustment Range (LP Gas/Low): 4.5-10.0
• Maximum Pressure: 1/2 PSI (14.0 W.C.)
• Inlet/Outlet Size: 3/4 NPT
• Pressure Tap Size: 1/8 NPT
• Ambient Temperature Rating: -40F to 175F (-40C to 79C)
• Mounting: Any Position
• Used on: Furnace
• Type: Gas Valve
