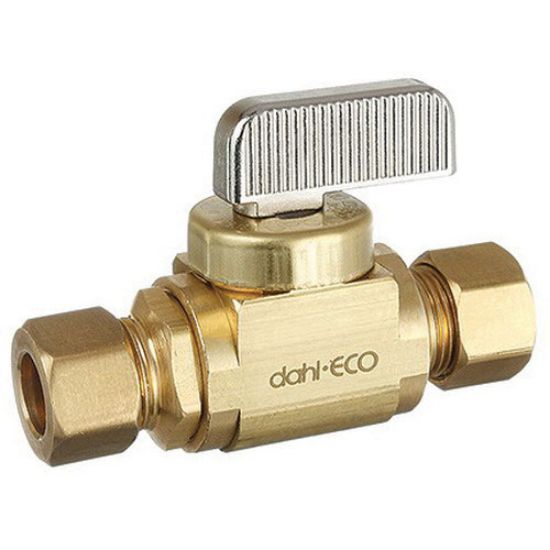

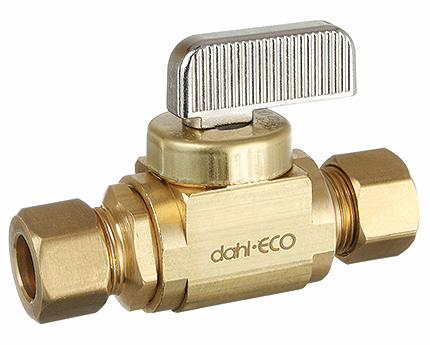

Dahl 521-31-31 In-Line Stops & Isolation 3/8 OD Comp X 3/8 OD Comp

Product Description

The DAHL 521-31-31 In-Line Stops & Isolation valve features a 3/8 OD Comp X 3/8 OD Comp connection, straight pattern, and rough brass finish. Constructed with lead-free brass and made with 100% North American materials. Every valve is tested before leaving the factory.

• Every valve is tested before leaving our factory.
• Easy to install
• Lead-free brass

Product Highlights

The DAHL 521-31-31 valve offers reliable in-line stop and isolation with quality tested, lead-free brass construction.

Product Information

Standard Information

• Brand: DAHL
• Manufacturer Part Number: 521-31-31
• Country of Origin: Canada

Technical Specifications

• Material: Lead-Free Brass
• Pattern: Straight
• Inlet Connection: 3/8 OD Comp
• Finish: Rough Brass
• Operation: Plated Handle
• Outlet Connection: 3/8 OD Comp
• Body Material: Brass
• End Style: OD Compression
• Nominal Size: 3/8 x 3/8 in
• MPN: 521-31-31
• Size: 3/8 OD Comp x 3/8 OD Comp
• Connection Type: Compression
• Type: Straight
• Flow Coefficient (Cv): 3 Cv
• Handle Material: Zinc
• Pressure Rating: 250 psi
• Softgoods Material: EPDM/FKM/PTFE
• Temperature Rating: 250 deg F
• Additional Information: 1.2 in Top to Inlet Center, Lead-Free
• Colour/Finish Category: Brass Tones
• Colour/Finish Name: Rough Brass
• End Connection: OD Compression x OD Compression
• End Connection 1: OD Compression
• End Connection 2: OD Compression
• Lead Law Compliant: Yes
• Maximum Temperature: 250
• Pressure - Maximum: 250 psi
• Specifications - ANSI: ANSI 61 Annex G
• Specifications - CSA Certified: Yes
• Specifications - NSF: NSF 61 Annex G
• Specifications - NSF Certified: Yes
• Style Name: Mini-Ball
• Valve Size: 3/8 in. x 3/8 in.
• Valve Type: Inline Supply Stops
• Product Type: Supply Stop Valves
• Valve Body Style: Straight
