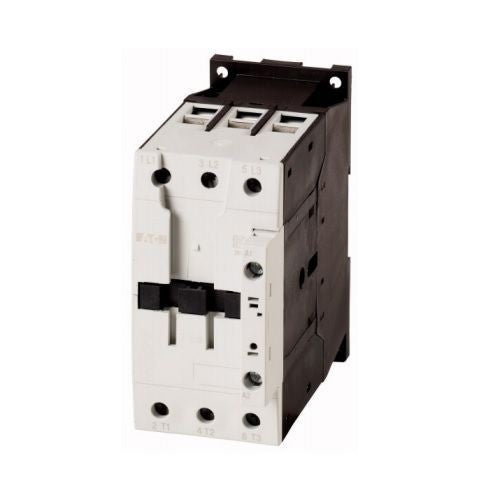

Cutler & Hammer XTCE050D00A Xt Iec Fvnr Contactor 50A

Product Description

The CUTLER & HAMMER XTCE050D00A is an Eaton XT IEC contactor with a 50A amperage rating and a coil voltage of 110 Vac 50 Hz and 120 Vac 60 Hz. This three-pole contactor features screw terminals and is suitable for FVNR applications. It is designed for efficient and effective motor load switching.

• 50A amperage rating
• 110 Vac 50 Hz, 120 Vac 60 Hz coil voltage
• Screw terminals for secure connections

Product Highlights

The Cutler Hammer XTCE050D00A is a reliable contactor for motor control applications, featuring a compact design and easy installation.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: XTCE050D00A
• Country of Origin: United States

Technical Specifications

• Amperage: 50A
• Voltage: 110 Vac 50 Hz; 120 Vac 60 Hz
• Contact Configuration: 0NO-0NC
• Frame Size: Frame D
• Size: 55 mm
• Frequency: 50-60 Hz
• Poles: Three-pole
• Terminals: Screw terminals
• Application: FVNR
• HP rating - max: 3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: 3
• Type: AC Non-Reversing IEC
• Coil: 110-120 Vac, 50/60 Hz
• Coil voltage: 110/120 VAC
• Continuous ampere rating: 50 A
• Series: XT IEC
• Operation: Non-reversing
• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE050D00A
• EAN: 4015082778279
• Product Length/Depth: 6 in
• Product Height: 2 in
• Product Width: 4.75 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• AMP Rating: 50 AMP AC-3 80 AMP AC-1
• Horsepower: 40 H.P. at 460 volt 20 H.P. at 230 volt
• Mounting: Screw or DIN rail
• Product Series: XT
• Family Series: Cutler Hammer, Div of Eaton Contactors, XT Series
• Description: Eaton XT IEC contactor, 50A, 110 Vac 50 Hz, 120 Vac 60 Hz, 0NO-0NC, 50A, Frame D, 55 mm, 50-60 Hz, 3, 7.5, 10/ 15, 20, 40, 50 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR
• Nominal Coil Voltage: 120 VAC
• Coil Type: Magnetic
• Auxiliary Contact: None
• Termination: Screw
• Overload Relays: C396, XTOB, XTOT
• General Purpose (AC1): 65 A
• UL Motor Switching (AC3): 50 A
• Frequency Rating: 50/60 Hz
• Maximum Load Current: 50 A
• Mounting Type: DIN Rail/Panel
• Operating Temperature: -13 to 122 deg F
• Enclosure Type: IP20
