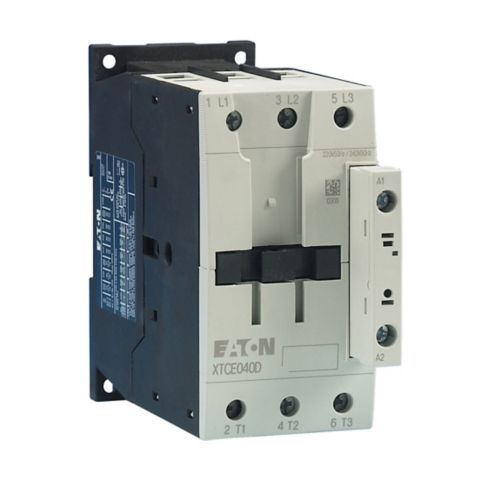

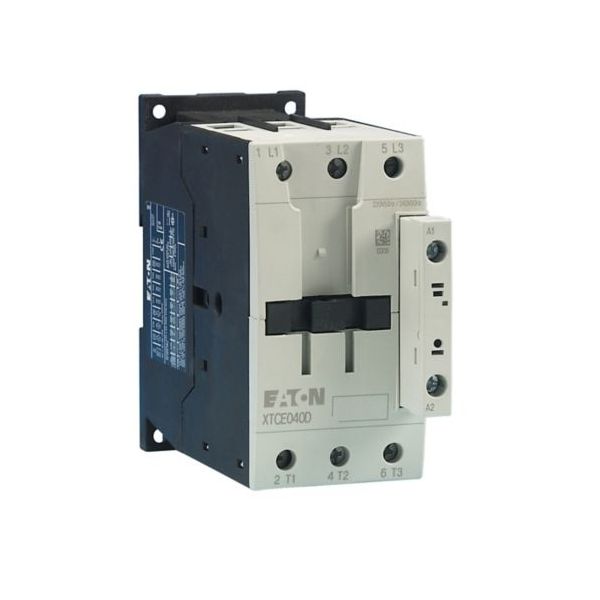

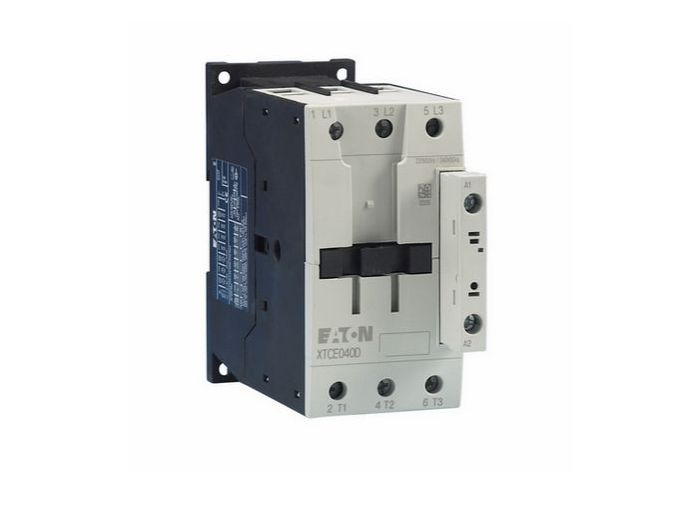

Cutler & Hammer XTCE040D00AD Contactor XT Series 40A

Product Description

The Cutler & Hammer XTCE040D00AD contactor is designed for efficient power control in applications ranging from seven amps to two thousand amps. This product meets IEC and UL standards and is ideal for motor loads where separate overcurrent protection is required. The contactor features screw terminals and supports full voltage motor power control.

• Rated for IP20 finger protection
• Supports plug-in accessories for easier installation
• Can be mounted on a panel or DIN rail up to sixty-five amps

Product Highlights

This contactor is an effective solution for various applications requiring reliable motor control.

Product Information

Standard Information

• Brand: Cutler Hammer, Div of Eaton
• Product Series: XT

Technical Specifications

• Manufacturer Part Number: XTCE040D00AD
• Nominal Coil Voltage: 125 VDC
• Coil Voltage Range: 110-130 VDC
• Poles: 3
• Frame Size: D
• Termination Type: Screw
• General Purpose Current Rating (AC1): 50 A
• UL Motor Switching Rating (AC3): 40 A
• Voltage Rating: 600 V
• Amperage: 40
• Phase: 3
