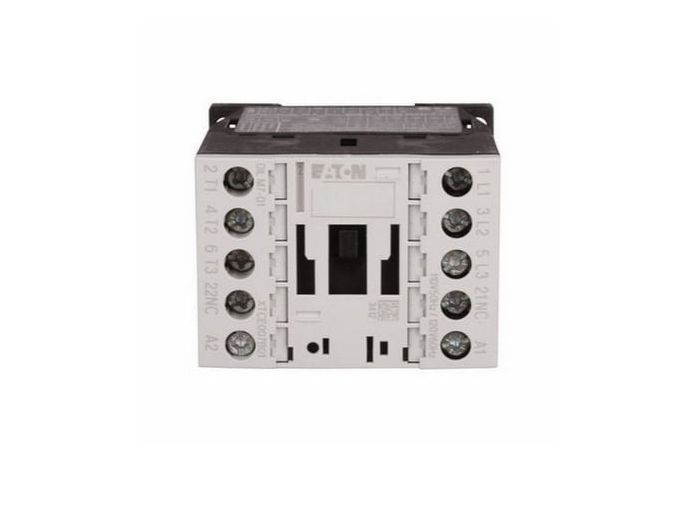

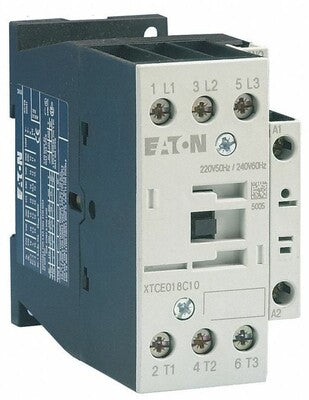

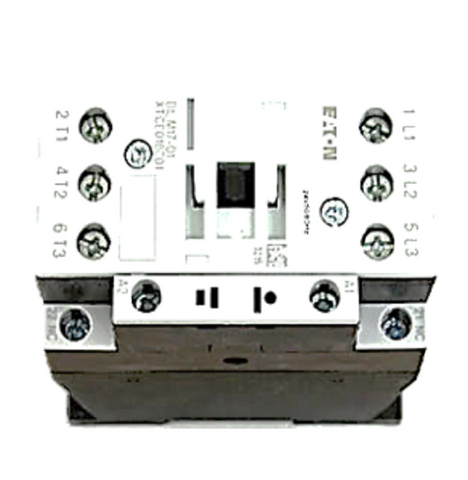

Cutler & Hammer XTCE018C01T Contactor 18A 24V 3 Pole

Brand: CUTLER & HAMMER
SKU: XTCE018C01T
Availability: In Stock

Ships same day if ordered by 12 pm
$220.33
$220.33
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Cutler Hammer XTCE018C01T is a heavy-duty contactor from the Cutler Hammer XT Series, engineered for performance in commercial and industrial motor control applications. Rated for 18A, the XTCE018C01T features a 24V coil, supports 3-phase operation, and is configured as a 3-pole unit. It is compatible with Eaton overload relays and control accessories.

  • IEC & UL rated contactor
  • Full voltage, non-reversing
  • Includes 1NC auxiliary contacts

Product Highlights

The Cutler Hammer XTCE018C01T contactor is designed to manage frequent motor starts, resist arcing, and maintain contact reliability over long service intervals.

Product Information

Standard Information

  • Brand: CUTLER & HAMMER
  • Manufacturer Part Number: XTCE018C01T
  • Country of Origin: United States
Technical Specifications
Manufacturer
Cutler Hammer
Subcategory
Contactor
Family
XT Series
Amperage
18
Poles
3
Voltage
600
Part Number
XTCE018C01T
Type
XTCE018C
UPC
078211648533
Phase
3
Coil Voltage Min
24
Coil Voltage Max
24
Current Rating
18 Amperes
Contact Configuration
1 Normally Closed (N/C)
Product Series
XT
Family Series
Eaton Contactors, XT Series
Description
Eaton XT IEC contactor, 18A, 24 Vac, 50-60 Hz, 1NC, 18A, Frame C, 45 mm, 50-60 Hz, 2, 2, 3/ 5, 5, 10, 15 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, FVNR
Nominal Coil Voltage
24 VAC
Coil Voltage
24 VAC
Coil Type
Magnetic
Auxiliary Contact
1NC
Termination
Screw
General Purpose (AC1)
35 A
UL Motor Switching (AC3)
18 A
Primary brand
Eaton
Secondary brand
Cutler-Hammer
Main function
Contactor
Product series / family name
XT IEC power control
Sub-range name
XTCE
Functions
Definite Purpose (DP) contactor
Rated current
18A (AC-3)
Rated current
40A (AC-1)
Rated active power (kW)
5kW (220/230Vac; AC-3; IEC; 50/60Hz)
Rated active power (kW)
7.5kW (380/440Vac; AC-3; IEC; 50/60Hz)
Rated active power (kW)
10kW (415Vac; AC-3; IEC; 50/60Hz)
Rated active power (kW)
11kW (660/690Vac; AC-3; IEC; 50/60Hz)
Rated reactive power (kVAr)
6.5kVAr (Individual Compensation; 230Vac)
Rated reactive power (kVAr)
12kVAr (Individual Compensation; 400/420/440Vac)
Rated reactive power (kVAr)
14.5kVAr (Individual Compensation; 525Vac)
Rated reactive power (kVAr)
19kVAr (Individual Compensation; 690Vac)
Rated reactive power (kVAr)
7.5kVAr (Group Compensation with reactor; 230Vac)
Rated reactive power (kVAr)
16kVAr (Group Compensation with reactor; 400/420/440Vac)
Rated reactive power (kVAr)
20kVAr (Group Compensation with reactor; 525Vac)
Rated reactive power (kVAr)
28kVAr (Group Compensation with reactor; 690Vac)
Rated power (HP)
2HP (Single-phase; UL/CSA; 115Vac)
Rated power (HP)
2HP (Single-phase; UL/CSA; 200Vac)
Rated power (HP)
3HP (Single-phase; UL/CSA; 230Vac)
Rated power (HP)
5HP (3-phase; UL/CSA; 200Vac)
Rated power (HP)
5HP (3-phase; UL/CSA; 230Vac)
Rated power (HP)
10HP (3-phase; UL/CSA; 460Vac)
Rated power (HP)
15HP (3-phase; UL/CSA; 575Vac)
Rated operating voltage (Ue)
690 V
Rated insulation voltage (Ui)
690 V
Connection type
Screw connection
Control Voltage (AC)
24Vac (50/60Hz)
Mounting mode
DIN rail
Normally Closed (NC) auxiliary contacts
1 NC contacts
Number of Normally Open (NO) circuits
3 NO Pole(s)
Net Width (mm)
45 mm
Mechanical durability (at no load)
10 000 000 operations
Application type
DOL (Direct On Line)
Application type
FVNR (Full-Voltage Non-Rv.)
Manufacturer product status
Commercialized
Compliant with standard(s)
IEC/EN 60947
Compliant with standard(s)
VDE 0660
Compliant with standard(s)
UL
Compliant with standard(s)
CSA
Compliant with standard(s)
RoHS
Compliant with standard(s)
CCC
Operating rate
(Electrical; AC-3; 400Vac) 800 Cycles/hour
Operating rate
(Electrical; AC-1; 400Vac) 800 Cycles/hour
Operating rate
(Mechanical) 5000 Cycles/hour
Degree of pollution
3
Frame Size
C
