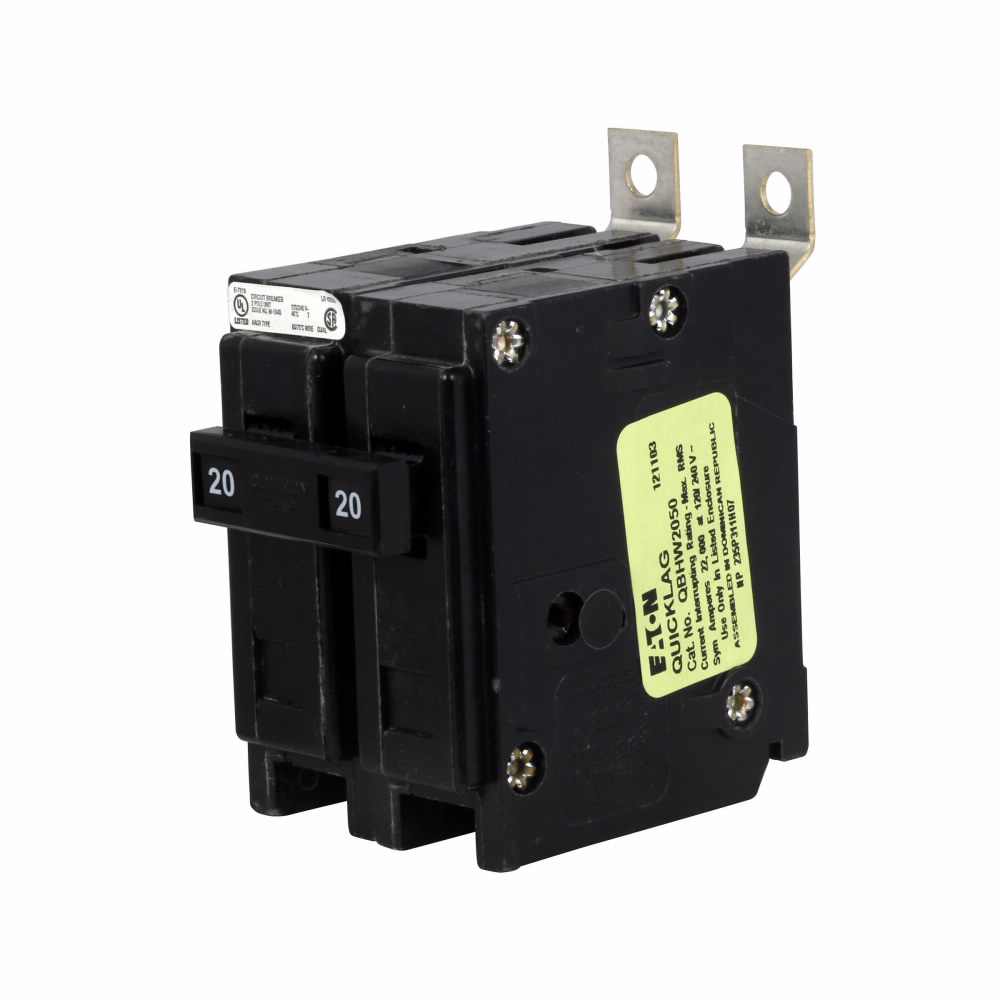

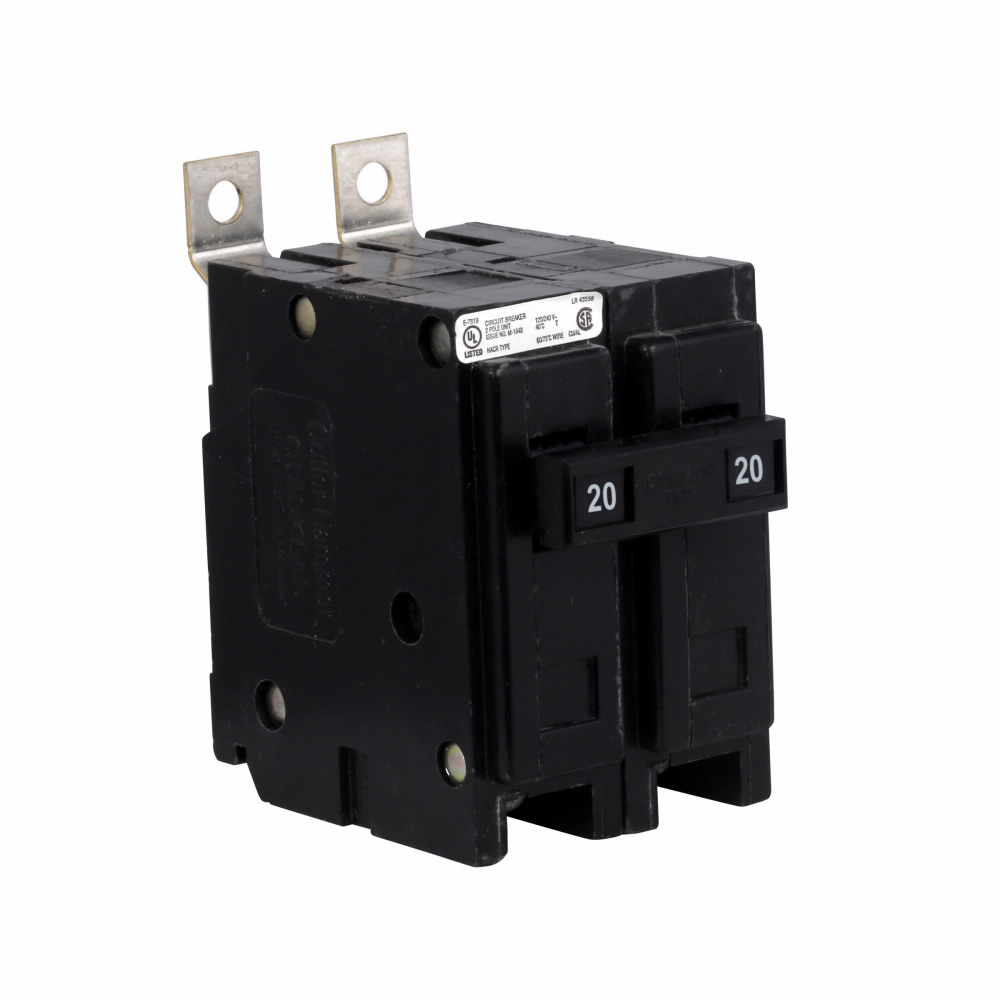

Cutler-Hammer Manufacturing Co. QBHW2020 ETN QBHW2020 20 Amp Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. QBHW2020 is a thermal-magnetic circuit breaker that offers reliability and safety for electrical systems. This model is rated at twenty amps and works with both one hundred twenty and two hundred forty volts. The non-interchangeable, two-pole design ensures easy installation in industrial settings.

• Type QBHW, QuickLag
• Interrupt rating of 22 kAIC
• Temperature rating of 40 degrees Celsius

Product Highlights

This circuit breaker is designed for industrial use and provides long time and instantaneous tripping features.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: QBHW2020
• Voltage: 120/240 Volt
• Amperage: 20 Amp
• Number of Poles: 2 Pole
• Mounting Type: Bolt-On
• Weight: 0.55 lb
• Height: 4.8 Inch
• Length: 3.7 Inch
• Trip Type: Non-Interchangeable, Long Time and Instantaneous, Thermal Magnetic
