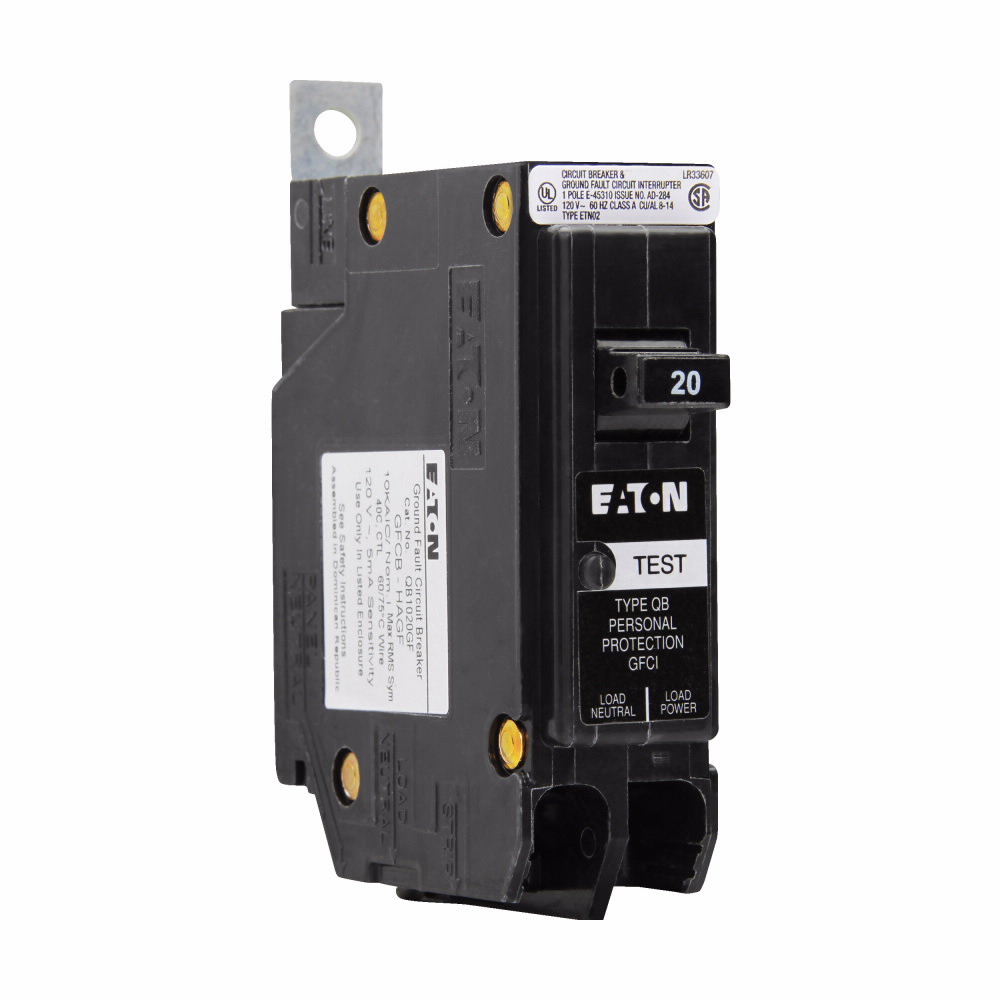

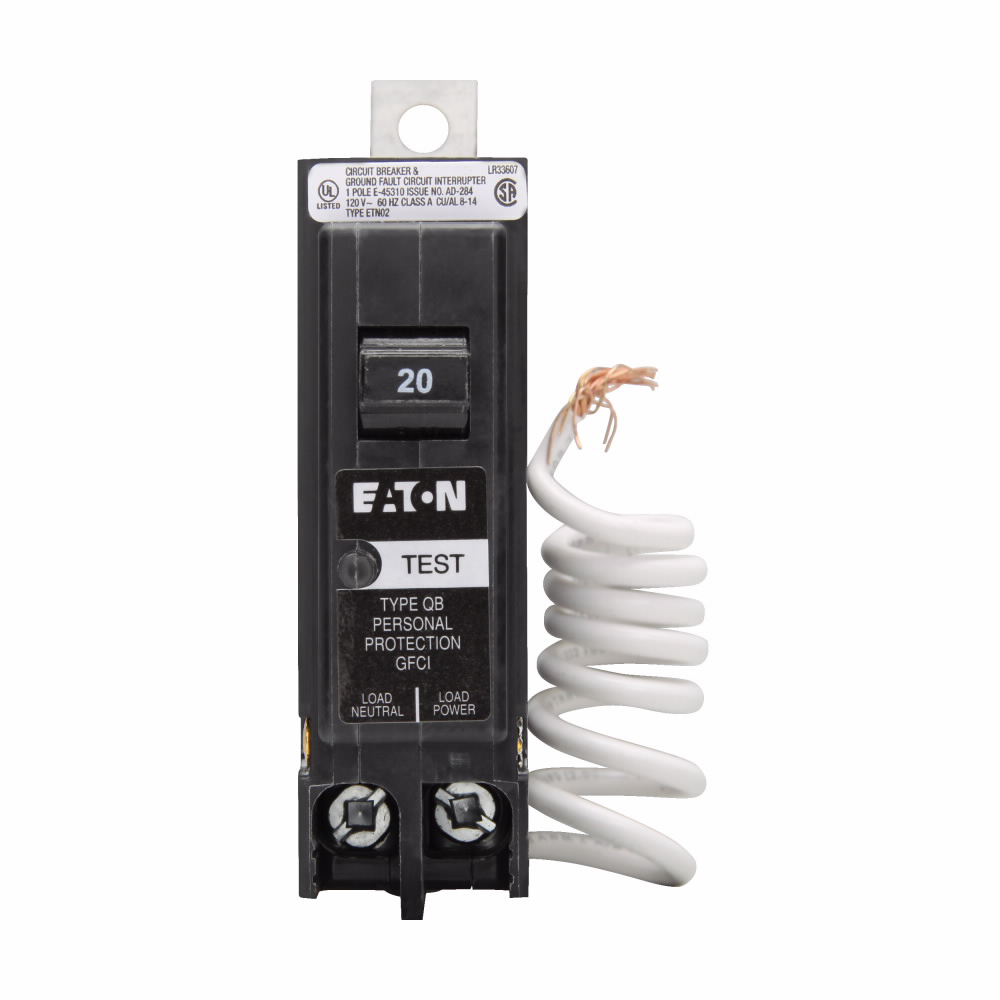

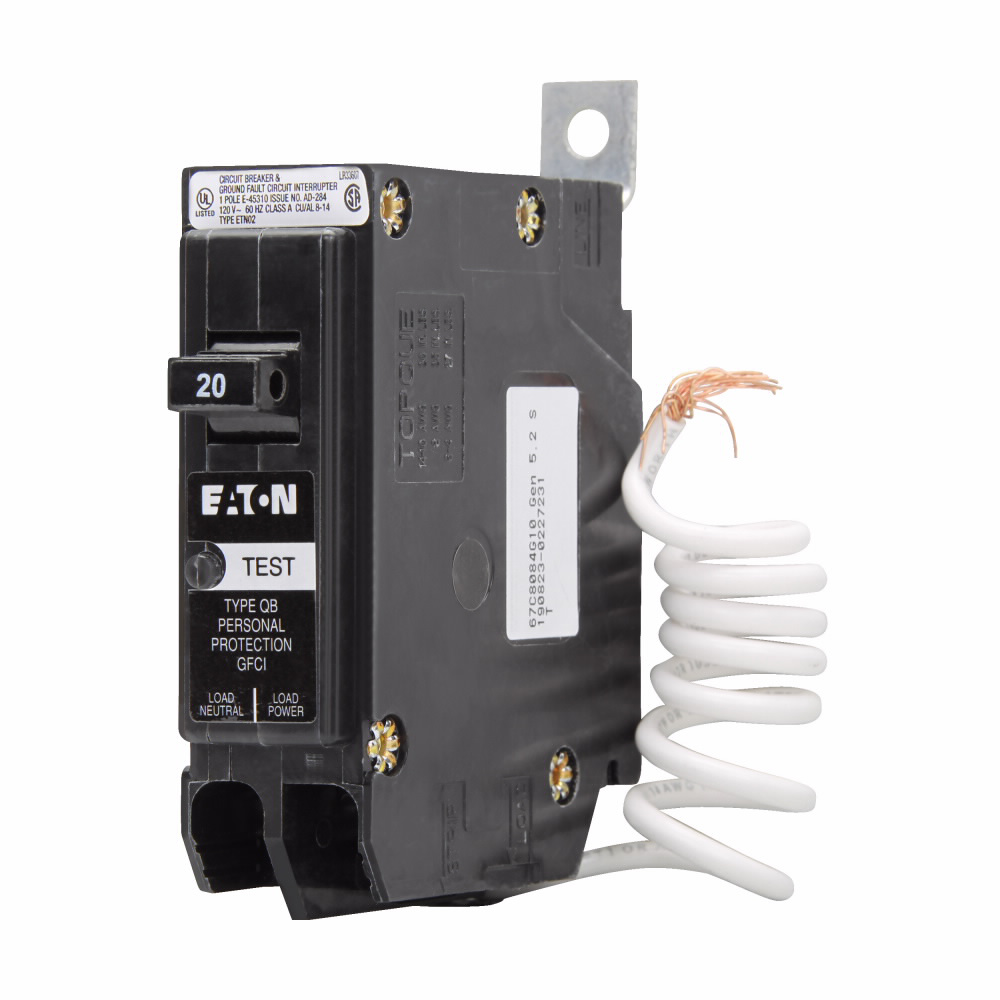

Cutler-Hammer Manufacturing Co. QB1020GF ETN QB1020GF Bolt-on GFCI 1 Pole

Product Description

The Cutler-Hammer Manufacturing Co. QB1020GF is a ground fault circuit breaker designed to protect electrical circuits from overloads and faults. This 20 AMP, single-pole breaker operates at a voltage of 120/240 Volts. It features a trip sensitivity of five milliamps to ensure safety against electrical shocks.

• Type: Ground Fault Circuit Breaker
• Amperage: 20 Amp
• Mounting: Bolt-On

Product Highlights

This circuit breaker is ideal for residential and commercial applications, ensuring reliable protection for various electrical setups.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Product Type: Ground Fault Circuit Breaker
• Voltage: 120/240 Volt
• Amperage: 20 Amp
• Trip Type: Non-Interchangeable
• Wire Size: 14-4 AWG
• Interrupt Rating: 10 kAIC
• Number of Poles: 1 Pole
• Length: 4 Inch
• Width: 3.5 Inch
• Height: 1 Inch
• Weight: .45 lb
