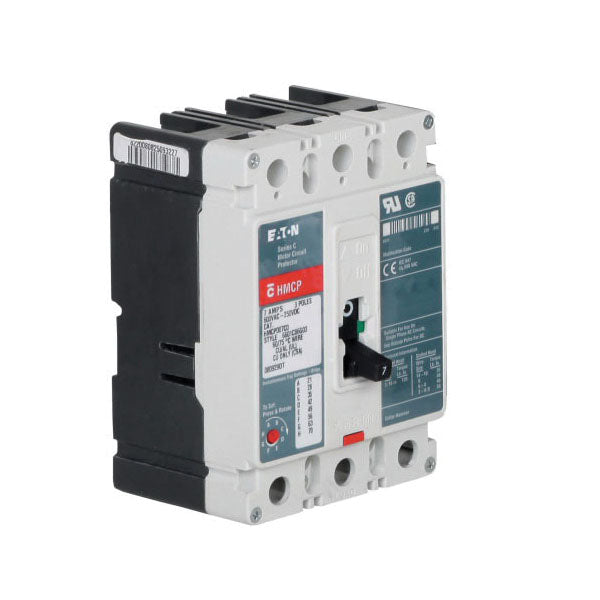

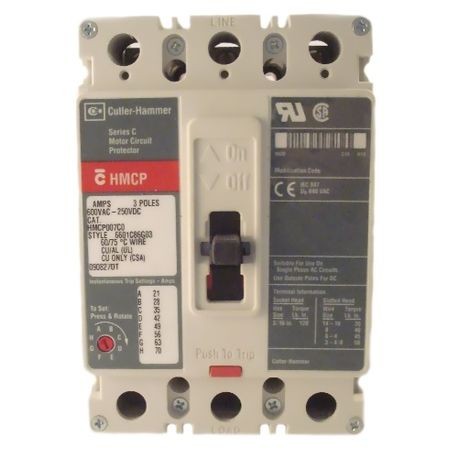

Cutler-Hammer HMCP030H1C Motor Circuit Protector, 600 VAC, 250 VDC, 30 A, 3 Poles, Magnetic Trip

Product Description

The Cutler-Hammer HMCP030H1C serves as a motor circuit protector. This essential device is designed for use in commercial and institutional buildings. It is a three-pole molded case circuit breaker with an amperage rating of thirty amps.

• Application: Suitable for commercial and institutional structures.
• Voltage Rating: Operates at six hundred volts AC and two hundred fifty volts DC.
• Standard: UL 489 and CSA certified.

Product Highlights

The HMCP030H1C provides reliable motor protection in demanding environments. It includes a magnetic trip feature for enhanced safety during overload conditions.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Vendor SKU: HMCP030H1C

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC, 250 VDC
• Frame: F
• Trip Range: 90 to 300 A
• Dimensions: 3.38 inches L x 4.13 inches W x 6 inches H
• Number Of Poles: Three-pole
• Standard & Approvals: UL 489, CE Certified, CSA C22.2 No. 5.1, IEC 157-1
• Weight: 4.5 lbs
