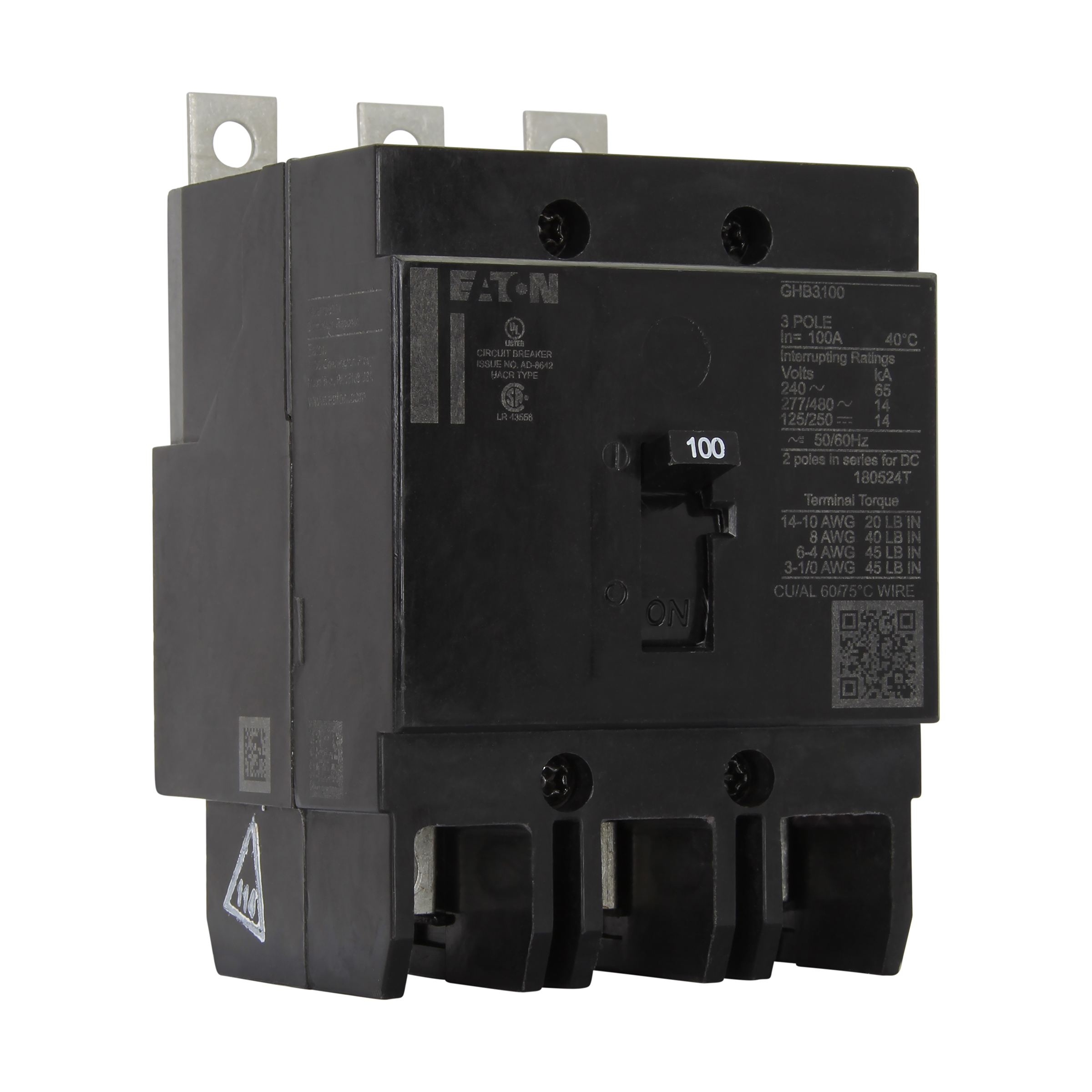

Cutler-Hammer GHB3100 Circuit Breaker 100A 3P - Replacement MPN

Product Description

The Cutler-Hammer GHB3100 is a molded case circuit breaker with a current rating of one hundred Amperes. This unit operates on a three-pole system and is rated for voltages of four hundred eighty volts (480Y/277 Vac) and one hundred twenty-five to two hundred fifty volts DC (125/250 Vdc). Designed for applications needing reliable circuit protection, the GHB3100 is suitable for electrical assemblies and is equipped with a fixed thermal and magnetic trip type.

• Rated for three poles and one hundred Amperes
• Voltage ratings of 480Y/277 Vac and 125/250 Vdc
• Complete breaker with fixed thermal and magnetic trip mechanism

Product Highlights

Cutler-Hammer’s GHB3100 provides essential protection for electrical circuits, making it appropriate for commercial and industrial use. Its robust design ensures reliable operation in critical environments.

Product Information

Standard Information

• Type: Molded case circuit breaker
• Brand: Cutler-Hammer

Technical Specifications

• Amperage Rating: 100A
• Number Of Poles: Three-pole
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Trip Type: Fixed thermal, fixed magnetic
• Frame Size: G-frame
• Series: Series C
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
• Weight: 1.75 LB
• Dimensions: 2.63 inches Length x 3 inches Width x 4 inches Height
