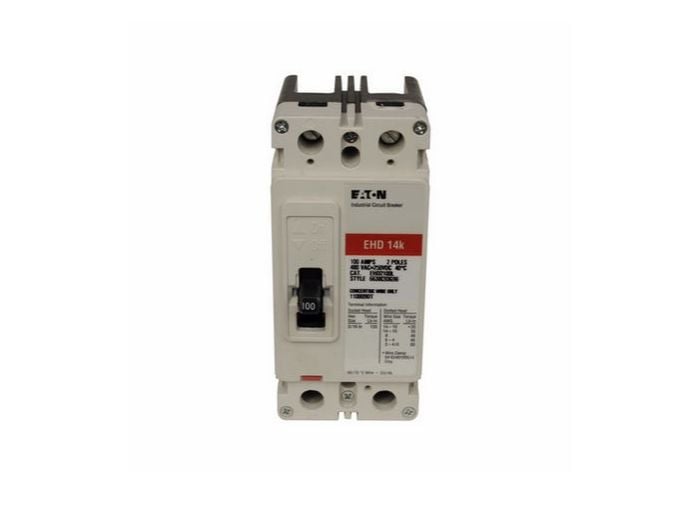

Cutler & Hammer Ehd2100l ehd2100l 100a 2p cb

Product Description

The CUTLER & HAMMER EHD2100L is an Eaton Series C complete molded case circuit breaker with an F-frame and fixed thermal, fixed magnetic trip type. This two-pole breaker is rated for 100A, 18 kAIC at 240 Vac, and 14 kAIC at 480 Vac, and is suitable for line and load applications, operating at 50/60 Hz. It is designed for electrical and machinery OEMs across various industries.

• Complete molded case circuit breaker
• Fixed thermal trip type
• Fixed magnetic trip type

Product Highlights

The Cutler Hammer EHD2100L circuit breaker offers reliable circuit protection with fixed thermal and magnetic trip functionality.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: EHD2100L
• Country of Origin: United States

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: EHD2100L
• Series: C
• Frame: F-frame
• Type: Complete molded case circuit breaker
• Trip Type: Fixed thermal; fixed magnetic
• Poles: Two-pole
• Amperage: 100A
• kAIC at 240 Vac: 18 kAIC
• kAIC at 480 Vac: 14 kAIC
• Line and Load: Line and load
• Frequency: 50/60 Hz
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 2.75 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 100 A
• Circuit breaker type: EHD
• Circuit breaker frame type: Complete breaker
• Terminals: Line and load
• Interrupt rating: 14 kAIC at 480 Vac 18 kAIC at 240 Vac
• Number of poles: Two-pole
• Manufacturer: Cutler Hammer, Div of Eaton
• Product Series: C
• Family Series: Cutler Hammer, Div of Eaton Circuit Breakers, C Series
• Current Rating: 100 A
• Max Voltage: 480 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: Panel
• Neutral Pole: No
• Neutral Protection: No
• 100% Rated: No
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 489
