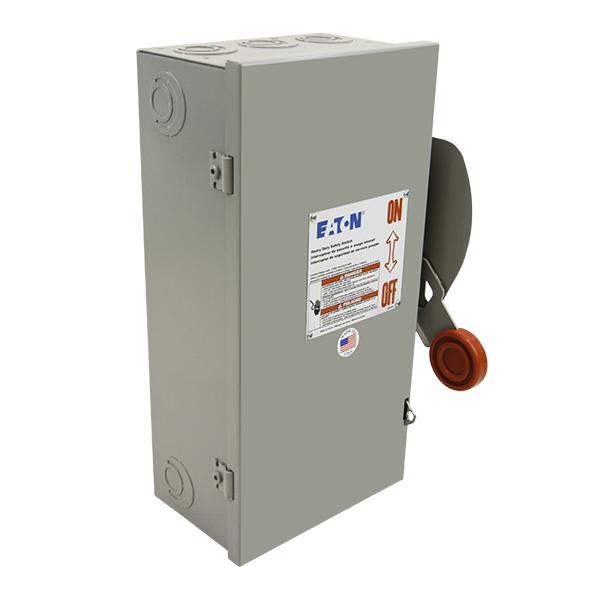

Cutler & Hammer DH322NGK Heavy Duty Safety Switch 60 Amp

Product Description

The Cutler & Hammer DH322NGK heavy-duty single-throw fused safety switch is rated at 60A and 240V. This three-pole, four-wire switch is suitable for commercial and institutional buildings for power distribution and controls. It uses #14-#2 Cu/Al conductors.

• Amperage: 60 Amp
• Enclosure: NEMA 1
• Number of Poles: 3 Pole

Product Highlights

The Cutler & Hammer DH322NGK safety switch is a robust solution for power distribution needs.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH322NGK
• Country of Origin: United States

Technical Specifications

• Amperage: 60 Amp
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Conductor Size: 14-2 AWG
• Enclosure: NEMA 1
• Enclosure Material: Steel
• Material: Steel
• NEMA: 1
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Type: Heavy Duty Fusible Safety Switch
• Voltage: 240 Volt
• Wire Size: 14-2 AWG
• Brand: Cutler-Hammer
• Country of Origin: United States
• Catalog No.: DH322NGK
• Poles: 3
• Phase: 3
• Disco Type: Fused
• NEMA Rating: 1
• Fuse Class: R
