Cutler & Hammer DH321NRK 30A 240V Sfty Sw

Product Description

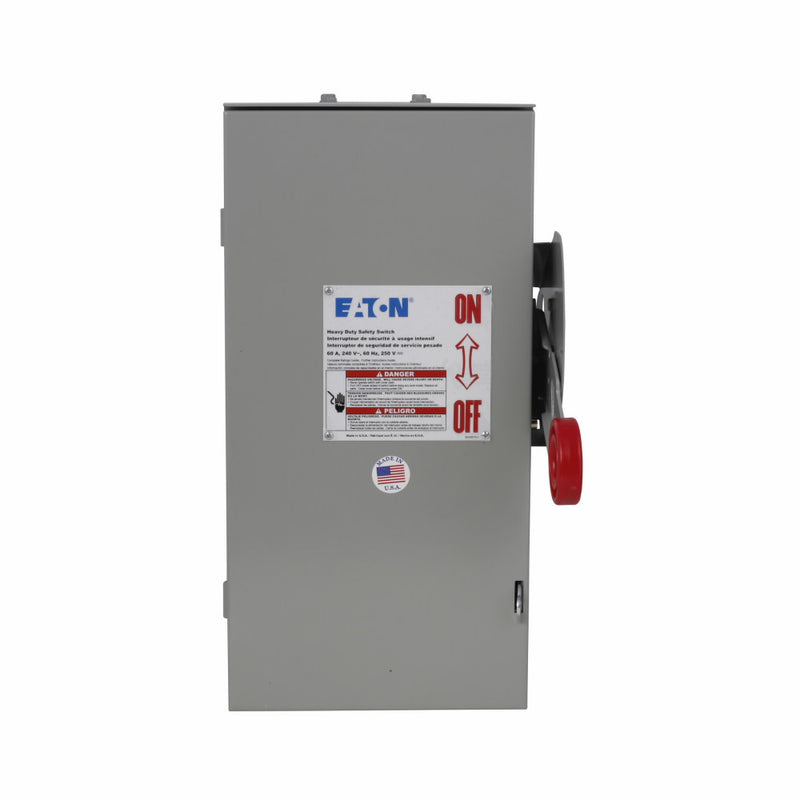

The CUTLER & HAMMER DH321NRK is a 30 Amp, 240 Volt, 3-pole fusible safety switch with NEMA 3R rating designed for heavy-duty power distribution applications. This DH series disconnect switch features an enhanced visible blade single-throw mechanism and a painted galvanized steel enclosure. It uses Class H fuses with neutral and has a four-wire configuration.

• NEMA 3R rating ensures protection against rain and sleet for outdoor or indoor use.
• Enhanced visible blade single-throw mechanism
• Painted galvanized steel enclosure

Product Highlights

Heavy duty fusible safety switch with NEMA 3R rating for reliable performance in commercial and industrial settings.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH321NRK
• Country of Origin: United States

Technical Specifications

• Catalog Number: DH321NRK
• UPC: 782113205373
• Product Length/Depth: 16.5 in
• Product Height: 16.27 in
• Product Width: 9.5 in
• Certifications: UL Listed
• Product Type: Fusible safety switch
• Enclosure: 3R
• Enclosure material: Painted galvanized steel
• Fuse class provision: Class H
• Fuse configuration: Fusible with neutral
• Number of poles: Three-pole
• Number of wires: 4
• Type: Heavy duty fusible safety switch
• Wire size: #14-2 AWG Cu/Al
• Amperage Rating: 30A
• HP rating - max: 1.5, 3/ 3, 7.5/ 5 hp (1,3PH @Std/TD, 250 Vdc)
• NEMA rating: NEMA 3R
• Voltage rating: 240V
• Product Category: Heavy Duty, Fusible with neutral
• Manufacturer: Eaton
• Brand: Eaton
• Category: Switch
• Item Subcategory: Disconnect
• Family: DH Series
• Voltage: 240
• Amperage: 30
• Phase: 3
• Poles: 3
• AIC rating: 100kA@240V
• Fuse Class: R
• Configuration: Single
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Compatible Frames: THKM
• Product Series: DH
• Description: Eaton Enhanced visible blade single-throw safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 240 V, Max Hp: 1.5, 3/ 3, 7.5/ 5 hp 1,3PH Std/TD, 250 Vdc, 14-2 Cu/Al
• Switch Type: Heavy Duty
• Fusible: Yes
• Fuse Type: H, R
• Neutral: Yes
• Composition: Metallic
• Approvals: CUL, UL
• Net Weight: 14.1 lbs
• Gross Weight: 20 lbs
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Conductor Size: 14-2 AWG
• Enclosure Material: Steel
• Material: Steel
• NEMA Size: 3R
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
