Cutler & Hammer DG321UGB Safety Switch 30A 240V

Product Description

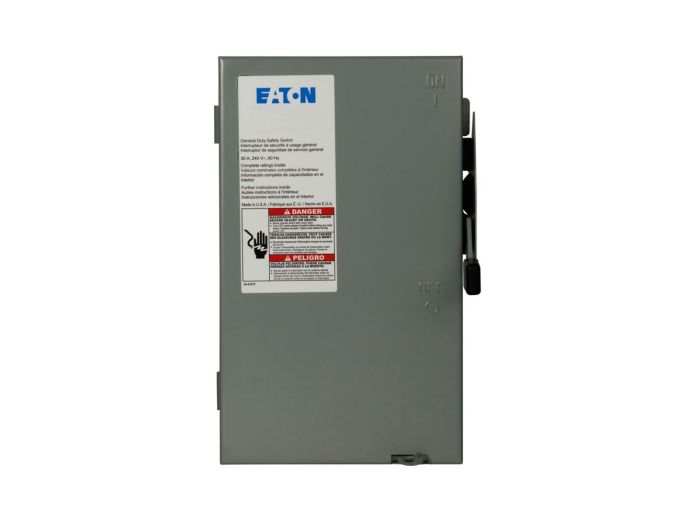

The CUTLER & HAMMER DG321UGB is a safety disconnect switch designed to manually connect or disconnect a load from its power source. This general-duty, non-fusible safety switch is suitable for residential and commercial applications, including light-duty motor circuits and service entrances. It features a NEMA 1 enclosure for indoor use.

• Non-fusible safety switch
• Suitable for light duty motor circuits and service entrance

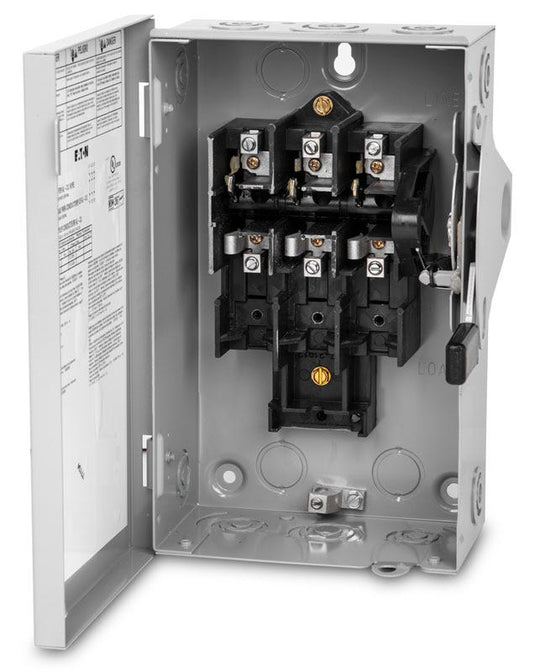

• Visible double-break quickmake, quick break rotary blade mechanism

Product Highlights

The Cutler-Hammer DG321UGB safety switch provides a reliable disconnect solution for various applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DG321UGB
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton general duty non-fusible safety switch
• SKU: DG321UGB
• Catalog Number: DG321UGB
• UPC: 782113120140
• Product Length/Depth: 6.88 in
• Product Height: 10.69 in
• Product Width: 6.38 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
• Product Type: Non-fusible safety switch
• Enclosure: NEMA 1
• Enclosure material: Painted steel
• Fuse configuration: Non-fusible
• Number of poles: 3
• Number of wires: 3
• Type: General Duty, Non-Fusible
• Amperage Rating: 30 A
• Voltage Rating: 240 VAC
• Product Category: General duty safety switch
• Series: B Series
• Power Rating: 10 hp at 1 Phase, 15 hp at 3 Phase
• Contact Form: 3PST
• Enclosure Type: Indoor
• Mounting Type: Surface/Panel
• Material: Steel
• Finish: Painted
• Maximum Amperage: 30 A
• Current Rating: 30 A
• Country of Origin: United States
• Model: DG321UGB
• Brand: Eaton
• Poles: 3
• Phase: 3
• Approval: UL
• Interrupting Rating: 100kA@240V
• Frame Type: DG
• Nema Rating: 1
• Length (in): 11.29
• Width (in): 7.25
• Height (in): 10.69
• Body Material: Steel
• Configuration: Single
• Mpn: DG321UGB
• Wire: 3
• Ampere Rating (A): 30
• Volts (V): 240
• Type of Duty: General Duty
• Disconnect Type: Non-Fusible
• Action: Single Throw
• Height (In.): 10.69
• Width (In.): 6.38
• Depth (In.): 6.88
• Standards: UL Listed
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: DG321UGB
• Fuse Type: Non-Fusible
• Horsepower, Max, 1 Phase, at 240 V: 3
• Horsepower, Max, 3 Phase, at 240 V: 7.5
• Maximum Current: 30 A
• Operation: Safety
• Primary Type: Safety Switch
• Special Features: Non-Fusible, NEMA 1
• Unit of Measure: EA
• UPC Code: 782113120140
• Manufacturer: Eaton
• Product Series: DG
• Family Series: Eaton Safety Switches, DG Series
• Description: Eaton General duty non-fusible safety switch, single-throw, 30 A, NEMA 1, Indoor, Painted steel, Three-pole, Three-wire, 240 V
• Switch Type: General Duty
• Fusible: No
• Neutral: No
• Composition: Metallic
