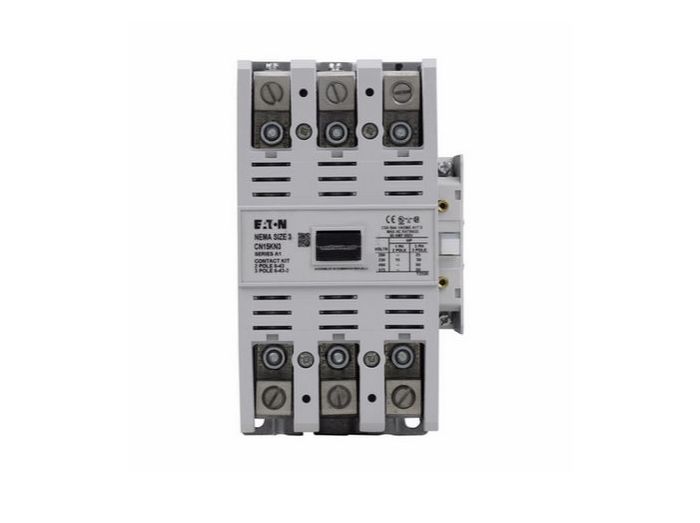

Cutler & Hammer CN15KN3C Freedom NEMA Contactor 90 A

Product Description

The CUTLER & HAMMER CN15KN3C Freedom NEMA Contactor is a full voltage non-reversing contactor with a NEMA Size 3 open enclosure and a 90 A maximum load. This three-pole contactor features a 480/60 or 440/50 coil voltage and is designed for use in applications where running over current protection is either not required or is provided separately.

• Horizontal or vertical mounting on upright pane allows for application freedom
• Screw type power terminals have captive, backed-out self-lifting pressure plates with screws result in reduced wiring time
• Accessible terminals allow for ease of use and are convenient for simple wiring

Product Highlights

Designed for durability and ease of use, this contactor features accessible terminals and a robust construction for various control applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CN15KN3C

Technical Specifications

• Type: Non-Reversing
• Series: Freedom
• Coil Voltage: 440/480 VAC
• Maximum Load Current: 90 A
• Coil Power Rating: 25 hp
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Contact Configuration: 1NO
• Enclosure Type: NEMA 3/Open
• Manufacturer Part Number: CN15KN3C
• Manufacturer: Cutler Hammer, Div of Eaton
• Product Series: Freedom
• Family Series: Cutler Hammer, Div of Eaton Contactors, Freedom Series
• Description: Eaton Freedom NEMA Contactor, Full voltage non-reversing, NEMA Size 3 open enclosure - 90 A, Three-pole, 480/60 or 440/50 coil voltage
• Nominal Coil Voltage: 480 VAC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: 1NO
• Termination: Box Lug
• Overload Relays: C306, C396
• NEMA Frame Size: 3
