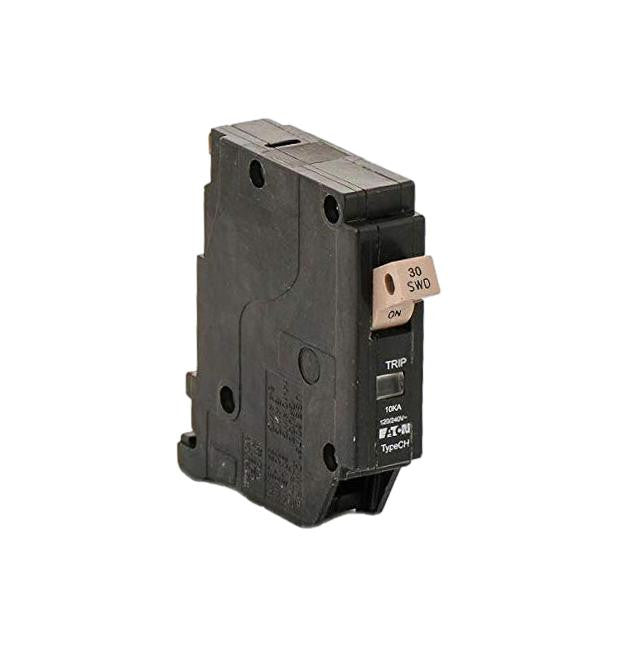

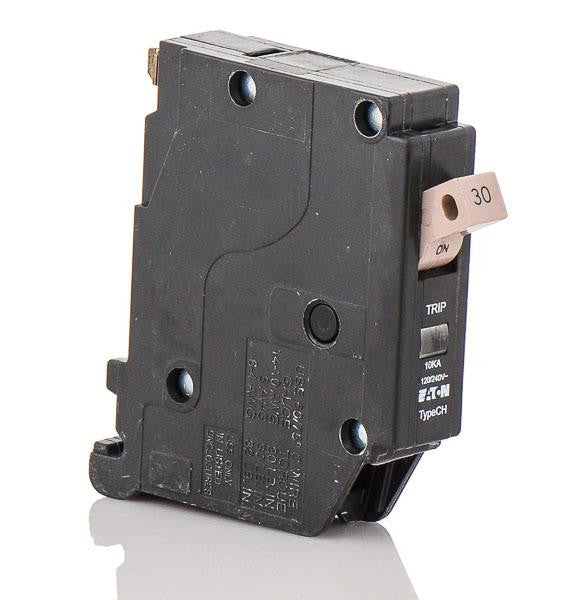

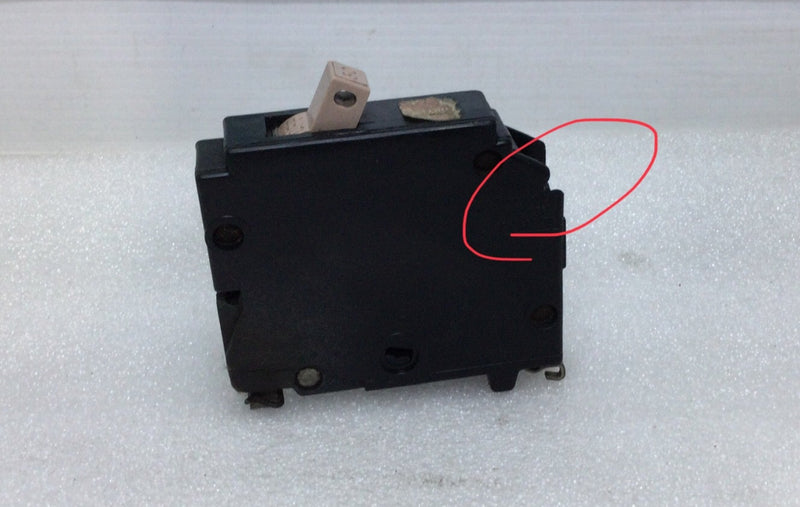

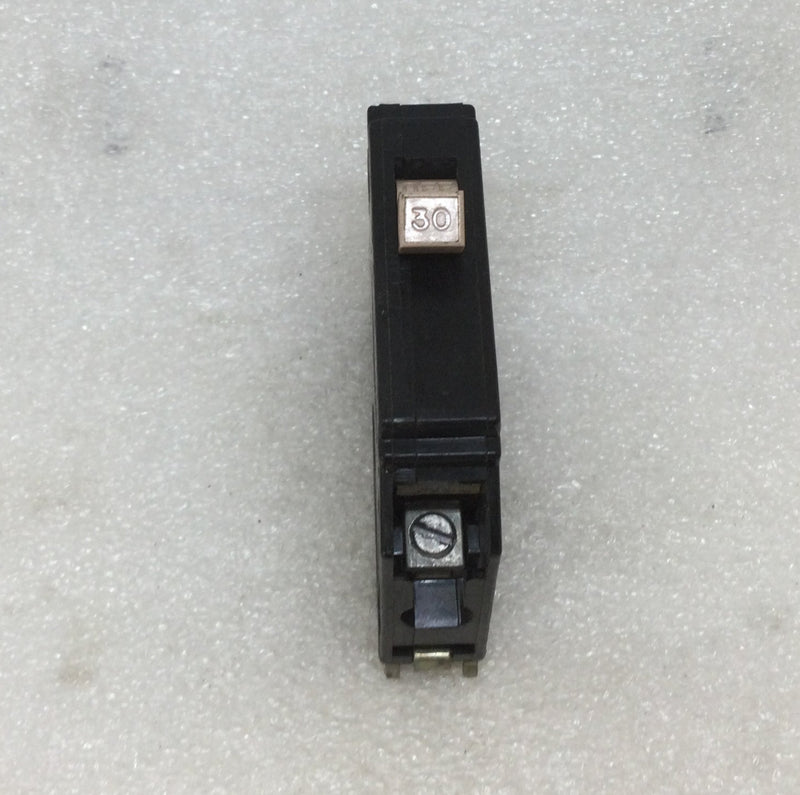

Cutler & Hammer CH130 CH Standard Circuit Breaker 30 A

Product Description

The Cutler & Hammer CH130 is a circuit breaker featuring a quick-make, quick-break switch mechanism and inverse time element tripping operation. This Type CH standard circuit breaker trips to the off position. It has handles marked with ON-OFF indication and ampere rating of the breaker.

• Quick-make, quick-break switch mechanism
• Inverse time element tripping operation
• Trip-free handle design

Product Highlights

This Cutler-Hammer circuit breaker is suitable for installation in NEMA 1/3R enclosures and offers reliable protection for your home.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: CH130

Technical Specifications

• Type: CH Standard
• Voltage: 120/240 VAC
• Amperage: 30 A
• Interrupt Rating: 10 kA
• Trip Type: Thermal Magnetic
• Poles: 1 Pole
• Phase: 1 ph
• Wire Size: (1) 14 to 8 AWG, (2) 14 to 10 AWG Wire
• Enclosure: NEMA 1/3R Enclosure
• Mounting: Plug-On Mounting
• Temperature: 60 to 75 deg C
• AIC Rating: 10kA @ 120/240VAC, 10kA @ 48VDC
• Terminal Type: Box Lugs
• For Use With: Type CH Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Max Wire: 8 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Standards: CSA C22.2, UL 489
• Approval: CSA, UL
• Construction Features: HACR Rated
• Ampere: 30 Ampere
• Rating: 10k Rated at 240 VAC
• Model #: CH130
• Volts: 120/240V
• Metal Foot: 1/2 Notch
• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Number of Poles: 1
• Enclosure Type: NEMA 1/3R
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 deg C
