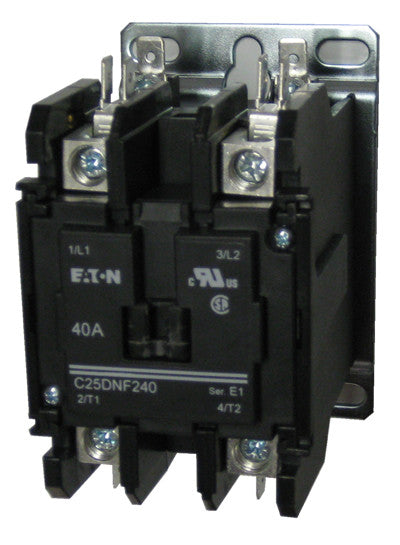

Cutler & Hammer C25dnf240c Contactor 40A

Product Description

The CUTLER & HAMMER C25DNF240C is a definite purpose 2 pole contactor rated at 40 AMPS with a 440/480 volt AC coil. Often found in heating and air conditioning units, elevators, refrigeration, and cranes/hoists. The compact size of the C25D series makes it an economical choice for applications where reliability and consistency are paramount.

• 40 amps inductive, 50 amps resistive
• Voltage Rating: 600VAC maximum
• Coil Voltage: 440VAC at 50Hz, 480VAC at 60Hz

Product Highlights

UL recognized, CSA certified, and RoHS compliant, ensuring reliable performance and safety in North American and European markets.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: C25DNF240C
• Country of Origin: China

Technical Specifications

• Number of Pole: 2
• AMP Rating (Inductive): 40A
• AMP Rating (Resistive): 50A
• Locked Rotor AMPS: 240A
• Coil Voltage: 440/480 volt AC coil
• Terminals: Double Quick Connect
• Manufacturer: Eaton
• Amperage: 40
• Voltage: 600
• Voltage Type: AC
• Poles: 2NO
• Frame Type: C25
• Part Number: C25DNF240C
• Brand: Cutler Hammer
• Category: Motor Control
• Item Subcategory: Contactor
• Family: C25 Series
• Type: C25
• Phase: 1
• Configuration: Non-Reversing
• Coil Voltage Maximum: 480
• Coil Voltage Minimum: 440
• Frequency: 50 Hz
• Product Series: C25
• Description: Eaton definite purpose contactor, Quick, 40A, 440-480 Vac, 50/60 Hz,Mounting plate, 15-50A, two- and three-pole, 40A, Contactor, Two-pole, 50A, Box lugs posidrive setscrew and quick connect terminals side-by-side, Non-reversing
• Nominal Coil Voltage: 480 VAC
• Coil Type: Magnetic
• Frame Size: D
• Termination: Box Lug, Quick Connect
• Shunt: No
• Enclosure: Open
• Resistive Rating: 50 A
• Approvals: CSA, UR
