Cutler & Hammer C25DND325A Definite Purpose Contactor 25A

Product Description

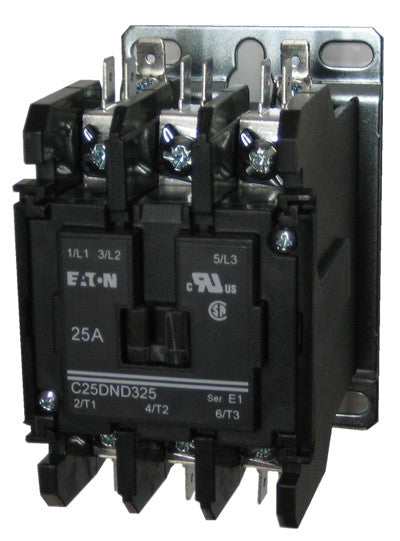

The CUTLER & HAMMER C25DND325A is a definite purpose contactor rated at 25 AMPS with a 120 volt AC coil. It is designed to improve control of refrigeration, air conditioning, ventilation and resistance heating applications. It has double quick connect terminals and a metal base plate.

• Direct physical and electrical replacement for the Siemens/Furnas 42AF35AF contactor
• Compact size
• Economical

Product Highlights

This contactor is RoHS compliant, CSA certified and UL recognized for use in Europe and North America.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: C25DND325A

Technical Specifications

• Product Name: Eaton definite purpose contactor
• Catalog Number: C25DND325A
• UPC: 782116300501
• Product Length/Depth: 3.35 in
• Product Height: 2.5 in
• Product Width: 2.4 in
• Product Weight: 1 lb
• Warranty: 1 year
• Compliances: RoHS Compliant
• Certifications: CSA Certified
• Product Type: Definite purpose contactor
• Amperage Rating: 25A
• Number of poles: 3
• Type: Non-reversing
• Coil Voltage: 110-120 Vac
• Enclosure: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 25 A
• Model: Contactor
• Resistive load: 35 A
• Terminals: Screw/pressure plate and quick connect terminals (side-by-side)
• Connection: Quick
• Date: Fri May 15 2026
• AMP Rating (Inductive): 25A
• AMP Rating (Resistive): 35A
• Locked Rotor AMPS: 150A
• Operating Voltage: 600VAC
• Contact Configuration: 3PST
• Switching Power AC3: 5.5kW
• Switching Current AC1: 35A
• Coil Voltage VAC Nom: 120V
• Coil Voltage VDC Nom: None
• Switching Power AC1: 2.2kW
• Load Current Resistive: 35A
• Switching Current AC3: 25A
• Product Range: C25 Series
• SVHC: No SVHC (17-Dec-2015)
• Applications: For Electrical Assemblies, Panels and EOEMs
• Enclosure Type: Open With Metal Mounting Plate
• Power Rating: 2.2 kW at 1 Phase, 5.5 kW at 3 Phase
• Standard: CSA,UL Recognized
• TC Connection: Quick
• Terminal Type: Screw/Pressure Plate And Quick Connect Terminals
• Voltage: 230 Volt
• Manufacturer Part Number: C25DND325A
• Manufacturer: Eaton - Cutler Hammer
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Mounting Type: Panel Mount
• Series: C25CN Series
• Number of Poles: 3
• Maximum Operating Temperature: 150 °F, 65 °C
• Terminator Type: Screw/Pressure Plate
• UPC Code: 782116300501
• Alternate Mfr Part Number: D1C25DND325A
• Weight: 1.3 lb
• Dimensions: 3.75 Inch X 0.00 in W X 3.35 in L
• Approvals: CSA Certified, UL Recognized
• Enclosure Rating: Open with metal mounting plate
• Horsepower, Motor, Max at 115 V: 3
• Horsepower, Motor, Max at 230 V: 7.5
• Coil Power: 110-120 Vac, 50/60 Hz W
• Control Voltage: 120 V
• Contact Current Rating: 25 A
• Product Series: C25
• Family Series: Eaton Contactors, C25 Series
• Nominal Coil Voltage: 120 VAC
• Coil Type: Magnetic
• Poles: 3NO
• Frame Size: D
• Termination: Pressure Plate, Quick Connect, Screw
• Shunt: No
• Resistive Rating: 35 A
• UR: UR
• Net Weight: 0.9 lbs
• Gross Weight: 0.9 lbs
