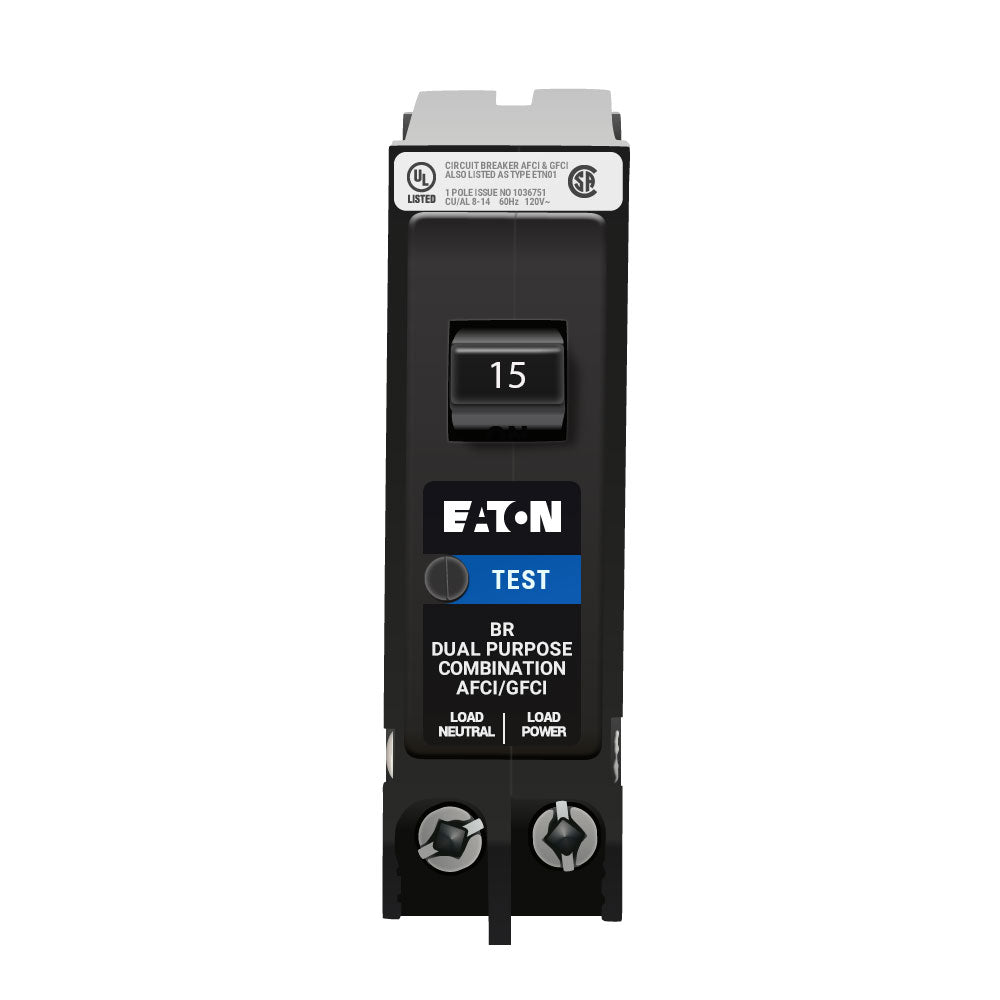

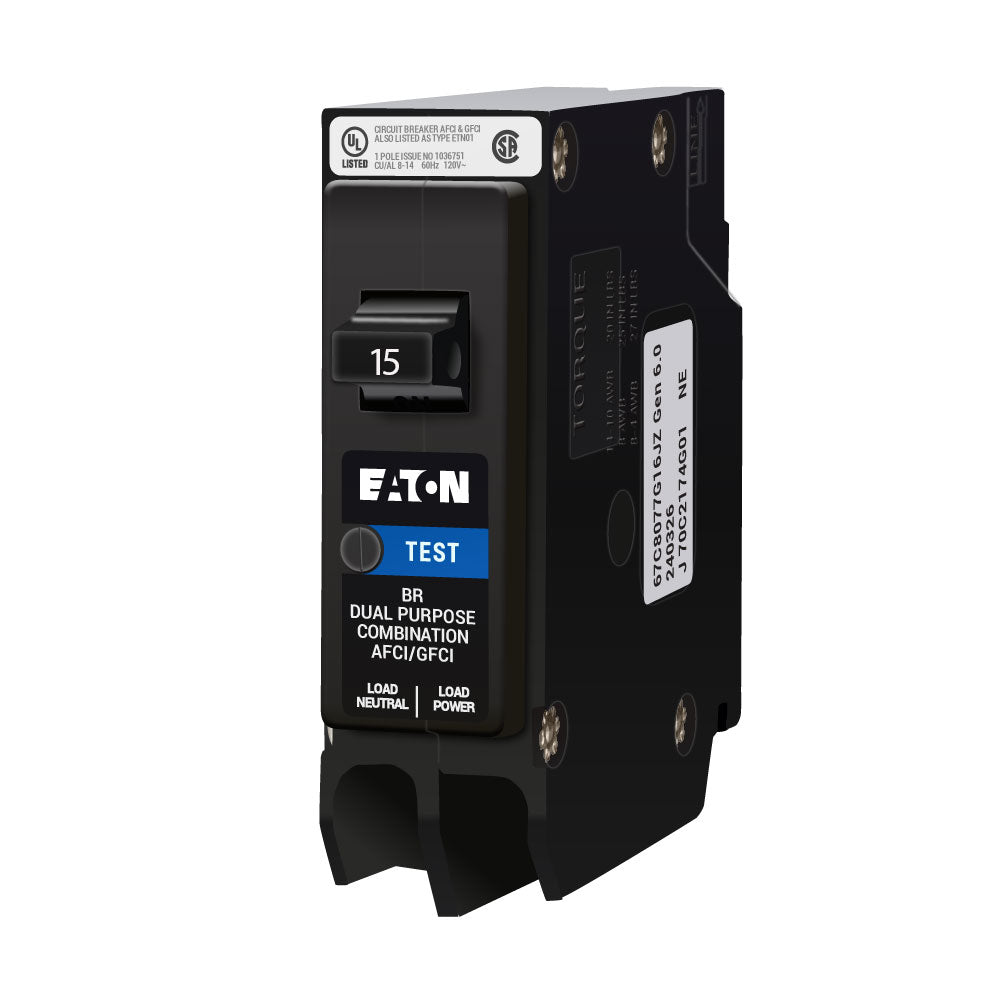

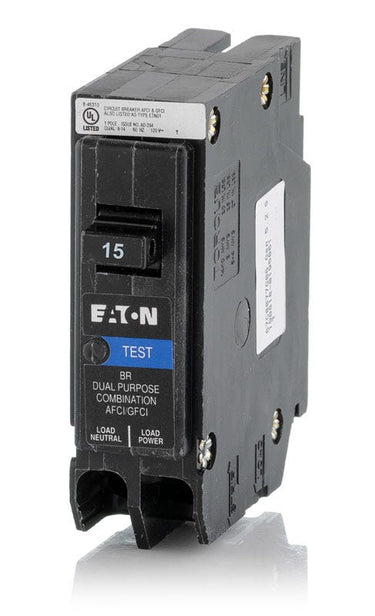

Cutler & Hammer BRP115DF 15 Amp Single Pole Dual Function Circuit Breaker BRP115DF

Product Description

The CUTLER & HAMMER BRP115DF is a 15 Amp single-pole dual-function circuit breaker, providing both AFCI and GFCI protection. Designed for residential applications, it meets NEC requirements and mounts into Eaton BR plug-on neutral load centers. Features a pigtail-free design to reduce clutter and speed up installation. Rated at 10kAIC, it uses thermal-magnetic trip technology.

• Provides combination arc-fault and ground-fault protection
• Mounts into Eaton BR plug-on neutral load centers
• Utilizes thermal-magnetic trip technology

Product Highlights

This Cutler-Hammer circuit breaker offers comprehensive circuit defense with combination arc-fault and ground-fault protection, simplifying installation and enhancing safety.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BRP115DF
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: CUTLER HAMMER
• Current Rating: 1-15 A
• Circuit Breaker Type: Combination
• Mounting Type: Wall Mount
• Number of Poles: 1
• Manufacturer: Eaton Cutler Hammer
• Family: BRN Dual Function Circuit AFCI & GFCI Circuit Breaker
• Type: BRN
• Cat. No.: BRP115DF
• Amperage: 15A
• Voltage: 120VAC
• Phase: 1
• Connection: Plug-In Neutral
• Functions: (LI) Long-Time and Instantaneous
• Interrupting Rating: 10kA@120V
• Approvals: CSA Approved and UL Listed
• Number of Throws: 1
• Operation Method: On/Off
• Number of Positions: 1
• Item Height: 3.25 IN
• Model: BR115DF
• MPN: BRP115DF
• Item Width: .75 IN
• Electrical Connection: Box Lugs
• UPC: 0786670009191
• Mounting Style: Clip-On
• Interruption Type: Arc Fault Circuit Interrupter (AFCI)
• Maximum Amperage: 15 A
• Number of Phases: 1
• Material: Plastic
• Number of Spaces: 1
• Tripping Characteristics: Type A
• Current Type: AC
• Control Style: Switch
• Number in Pack: 1
• Features: Plug-On Neutral
• Protection Properties: Overload Protection
• Series: BRP
• AIC Rating: 10kA @ 120VAC
• Special Classification: Dual Function (AFCI/GFCI)
• Terminal Type: Box Lugs
• For Use With: Eaton BR Plug-On Neutral Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LIG
• Trip Function: Long-Time, Instantaneous, Ground Fault
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG (Cu/Al)
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Standards: UL 1699, UL 489, UL 943
• Approval: UL
• Temp Rating: 40C
