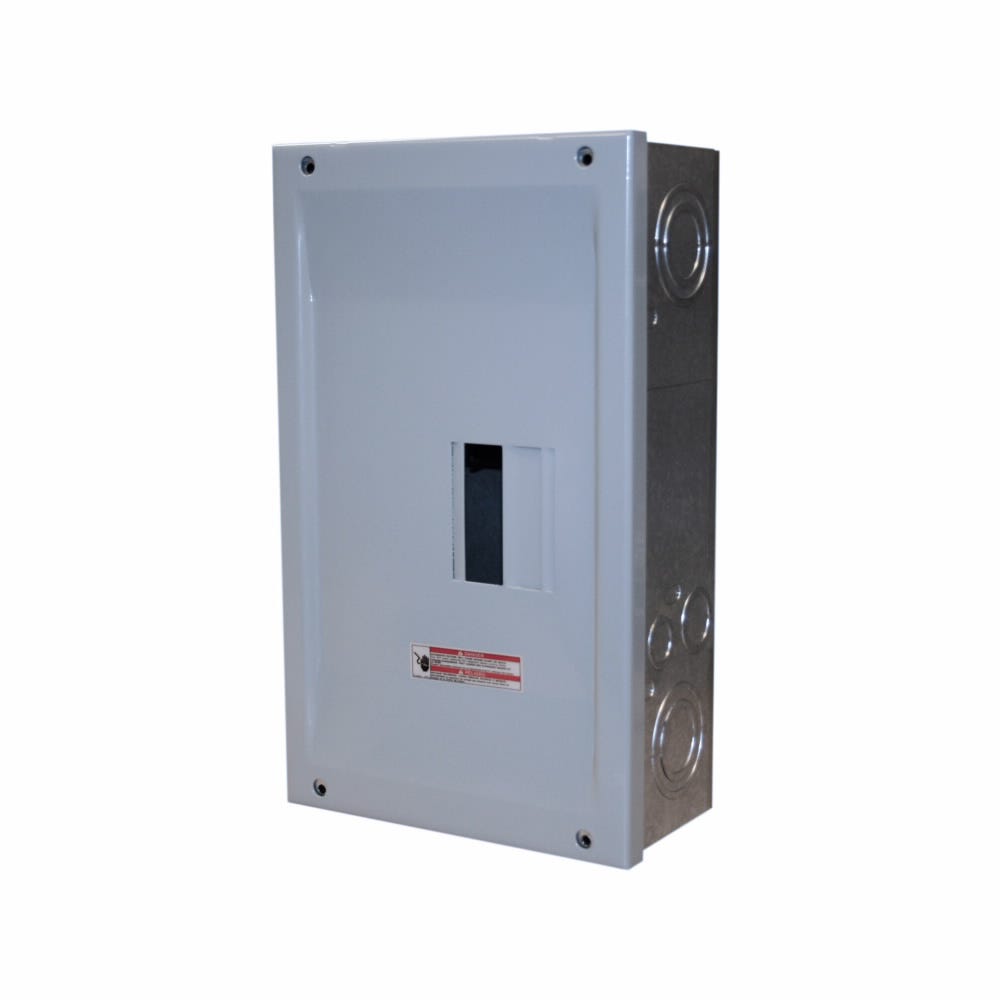

Cutler & Hammer BR24L125SP Main Lug Loadcenter 125A

Product Description

The CUTLER & HAMMER BR24L125SP is a main lug loadcenter with a current design. Rated at 125A, this loadcenter features an aluminum bus material, a NEMA 1 enclosure, and a 10 kAIC interrupt rating. It accommodates type BR 1-inch breakers and supports a voltage rating of 120/240V.

• Current design
• Aluminum bus material
• NEMA 1 enclosure

Product Highlights

The CUTLER & HAMMER BR24L125SP loadcenter is ideal for use as service equipment when not more than two service disconnecting mains are provided.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BR24L125SP

Technical Specifications

• Product Name: Eaton BR main lug loadcenter
• Catalog Number: BR24L125SP
• UPC: 786676002271
• Product Length/Depth: 3.88 in
• Product Height: 21 in
• Product Width: 14.31 in
• Certifications: UL 50
• Product Type: Main lug loadcenter
• Special features: Current design
• Type: Main lug
• Amperage Rating: 125 A
• Bus material: Aluminum
• Cover: Cover not included
• Mounting: Surface
• Number of circuits: 4
• Number of spaces: 2
• Phase: Single-phase
• Used with: Type BR 1-inch breakers
• Voltage rating: 120/240 V
• Wire size: #14-1/0 AWG Cu/Al
• Box size: 6
• Enclosure: NEMA 1
• Enclosure material: Metallic
• Interrupt rating: 10 kAIC
• Number of wires: 3
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
• Conductor Size: 14-1/0 AWG
• Cover Type: Cover not included
• Enclosure Material: Metal
• Mounting Type: Surface
• Number of Phases: 1 Phase
• Voltage: 120/240 Volt
• Wire Size: 14-0 AWG
• Category: Load Center/Panel Board
• UL 67: UL 67
